01 / ADJUSTMENT
Precision in positioning.

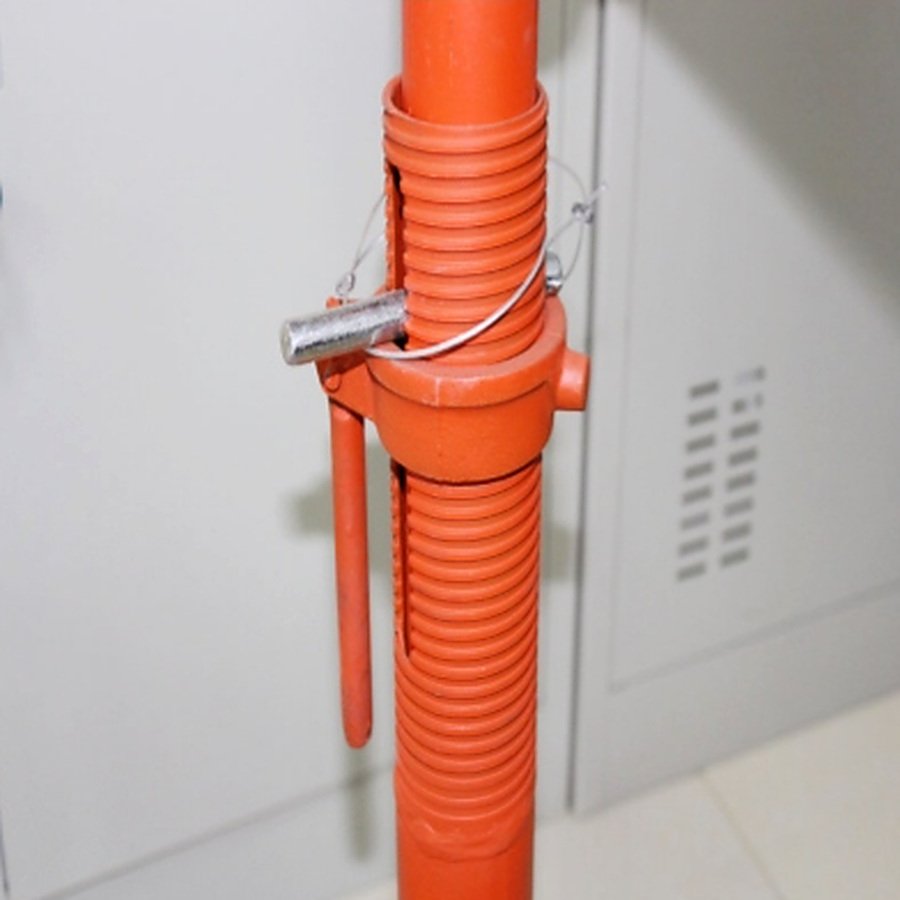

Telescopic inner and outer tubes with threaded adjustment for the required support height.

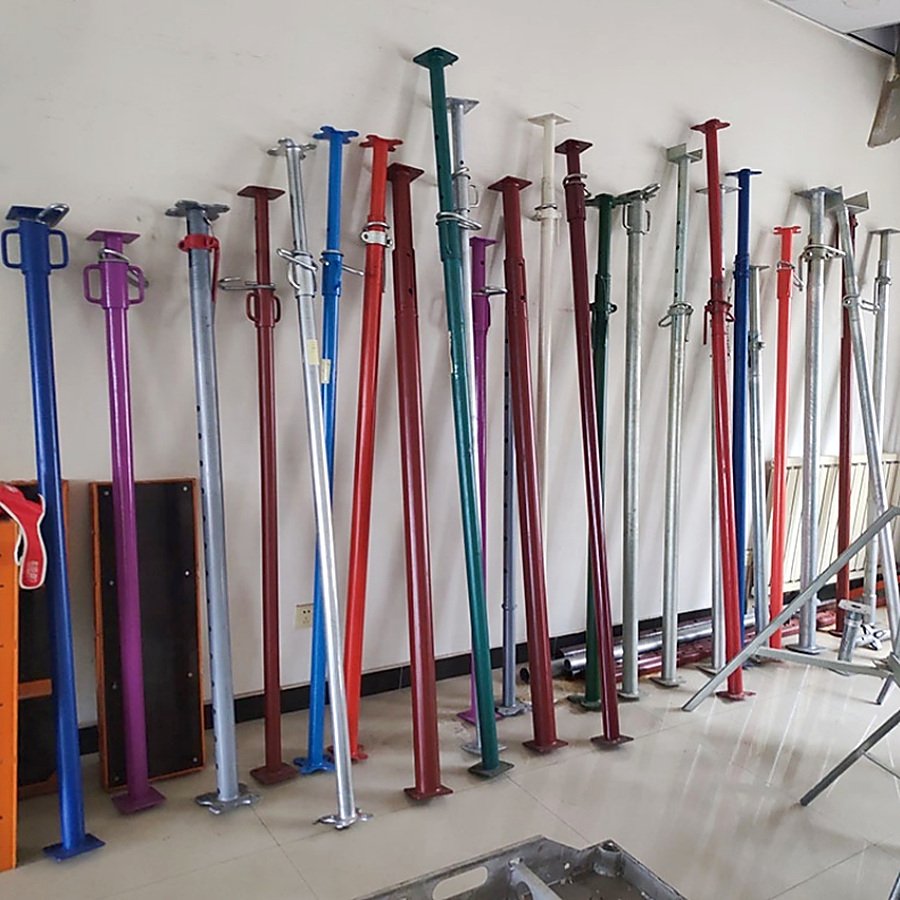

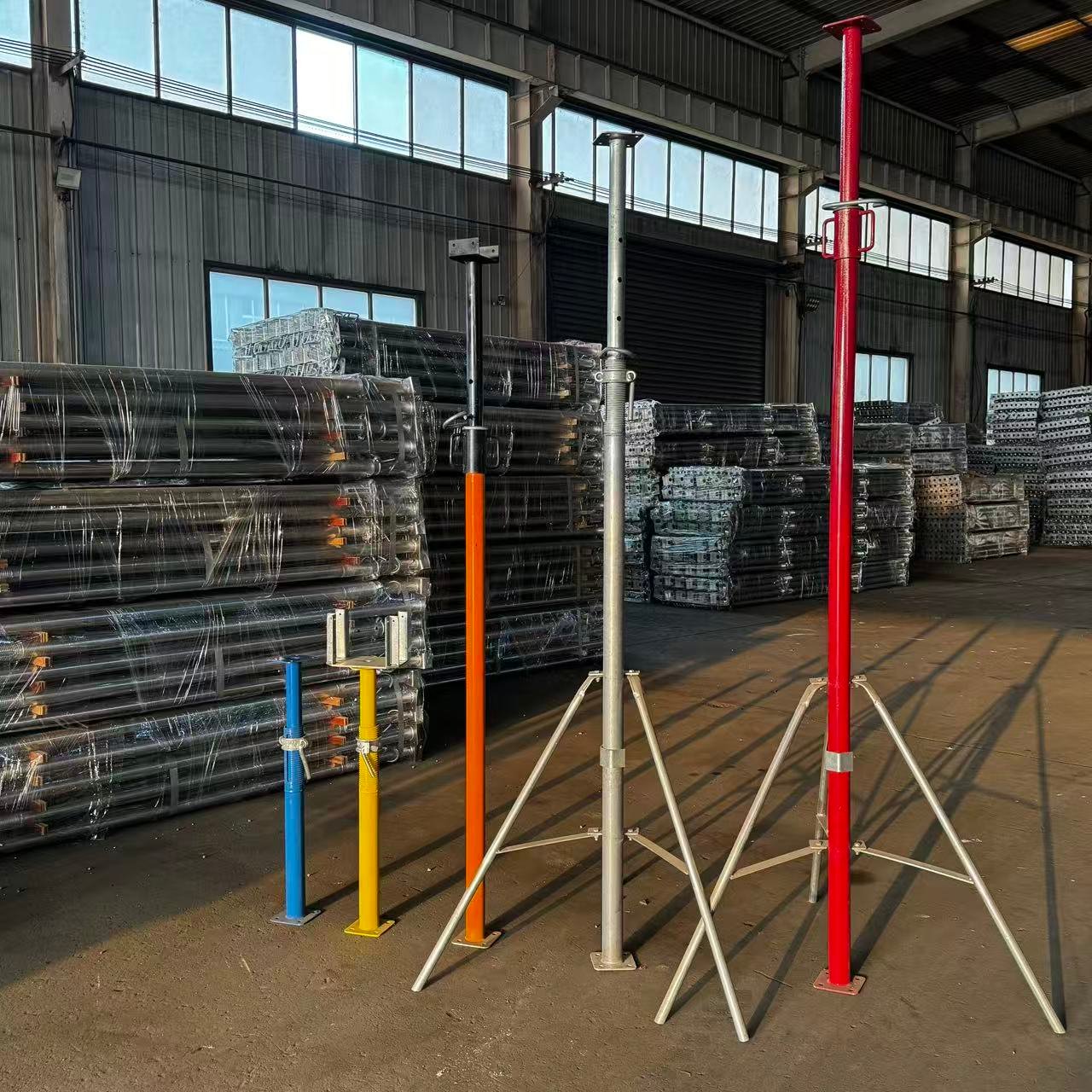

PRODUCT GALLERY01 / 07 — Product range
SHORING & FORMWORK SYSTEMS
Adjustable
Steel Props
Dependable temporary support for slabs, beams and formwork. A complete range of telescopic steel props, configured for your project.
Adjustment range0.8–5.0 m across the range
Steel gradesQ195 / Q215 / Q235 / Q345
Surface optionsGalvanized / Painted
Order quantityFrom 500 pieces
Select a prop system 04 configurations
Built to your required height, finish and order quantity.
Final specifications and lead time confirmed with your quotation.
01
Project-specific configurationHeight, finish and accessory options
02
Bulk supply, organizedPallet packing and container loading
03
OEM supportDrawing, logo and packaging customization
01 / TECHNICAL OVERVIEW
The right fit for your product.
Compare prop configurations and working heights to define your project requirements.
| Configuration | Min. height | Max. height | Inner / outer tube |
|---|
GalvanizedPainted redPainted blue
Dimensions shown for selection. Confirm wall thickness, load capacity and project suitability with the supplier.

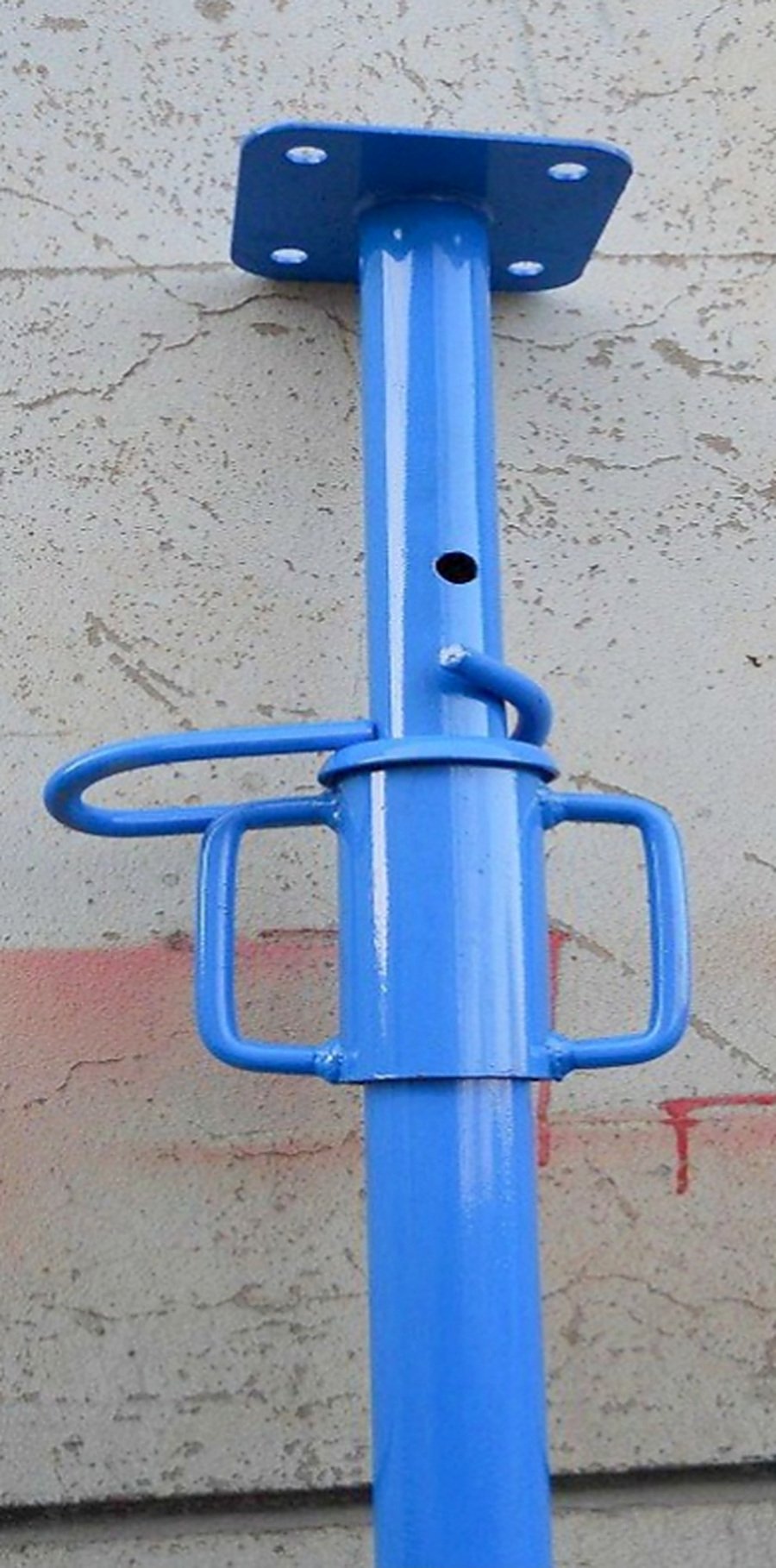

02 / PRODUCT DETAILS
Every connection matters.
Open any image to inspect the component, finish and connection detail at full size.

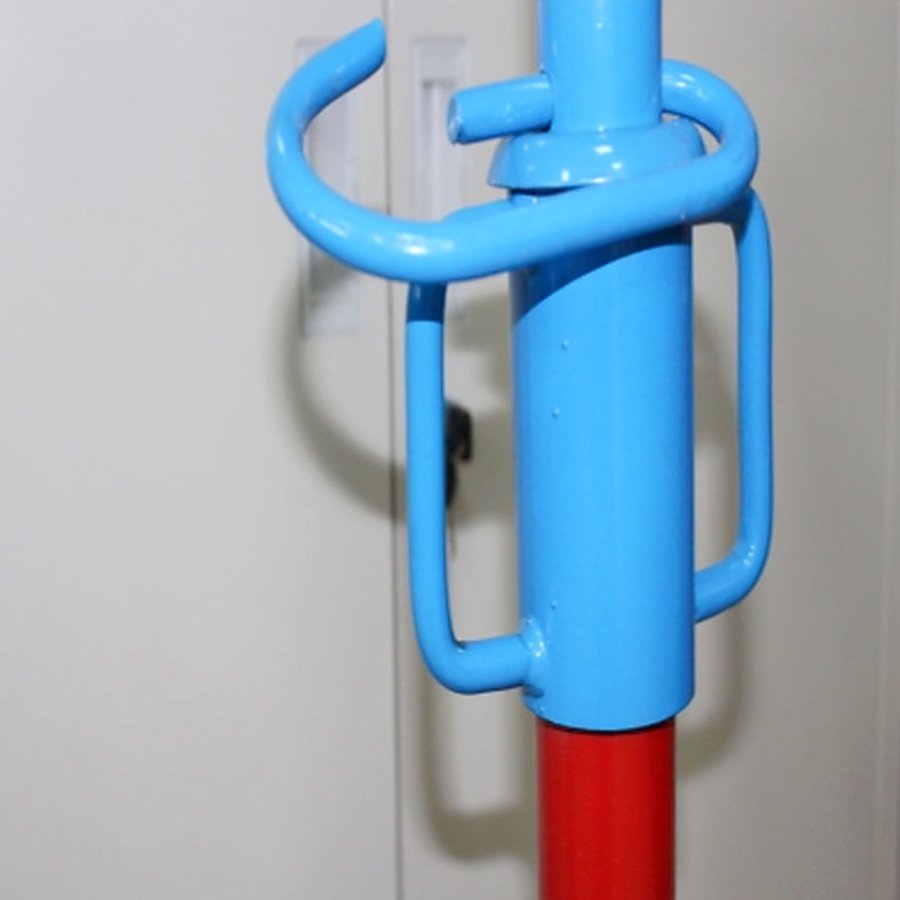

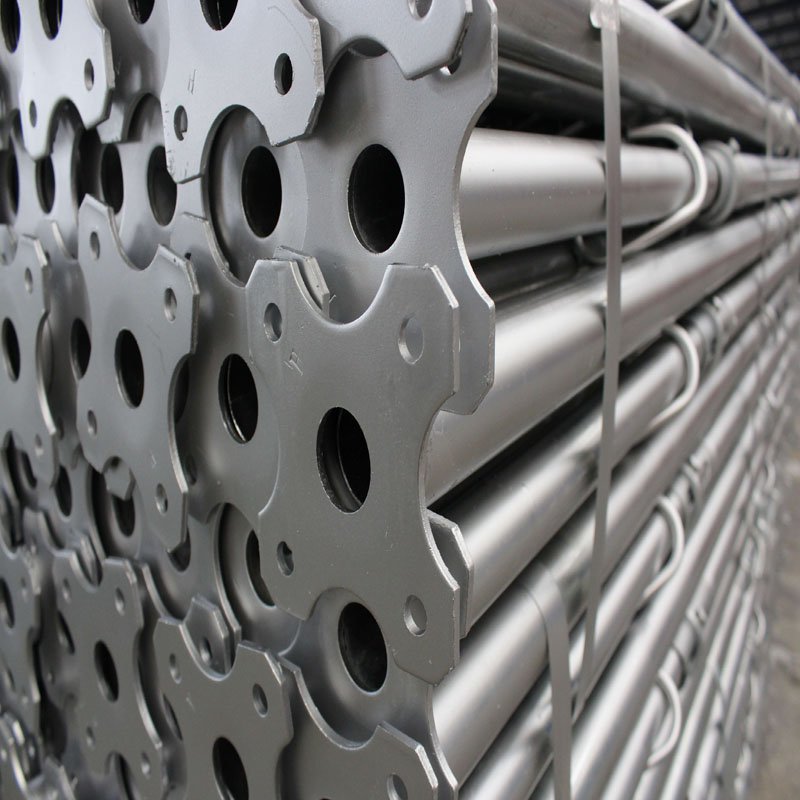

02 / CONNECTION
Built around the detail.
Inspect base plates, tube ends and connection details when specifying your prop system.
03 / ACCESSORIES
One coordinated system.

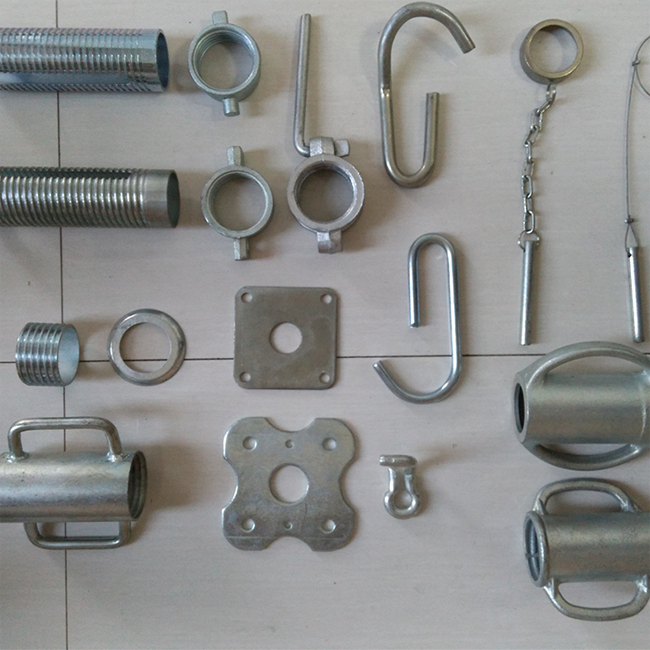

Match your props with pins, nuts, sleeves, fork heads and base plate options.
Individual product detail views

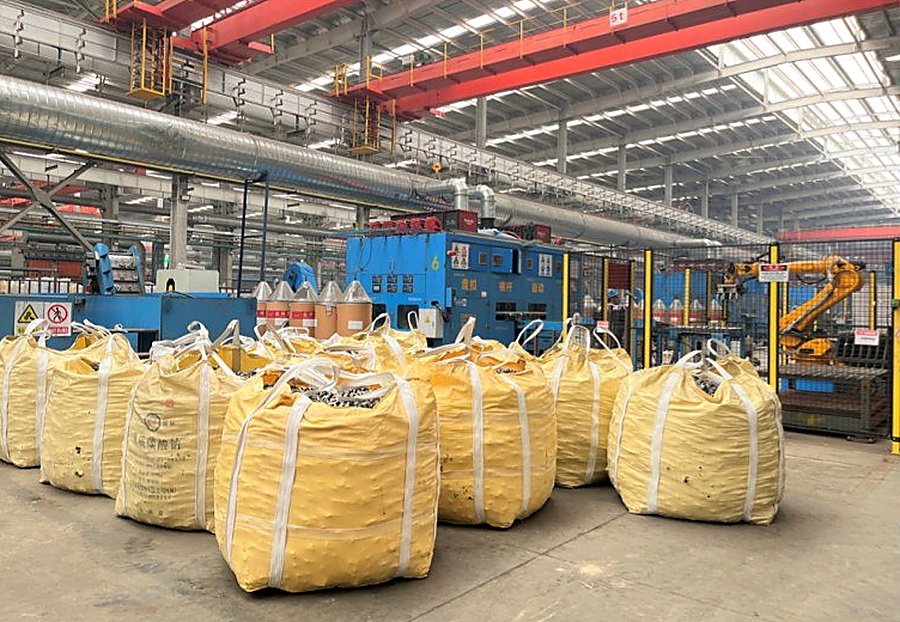

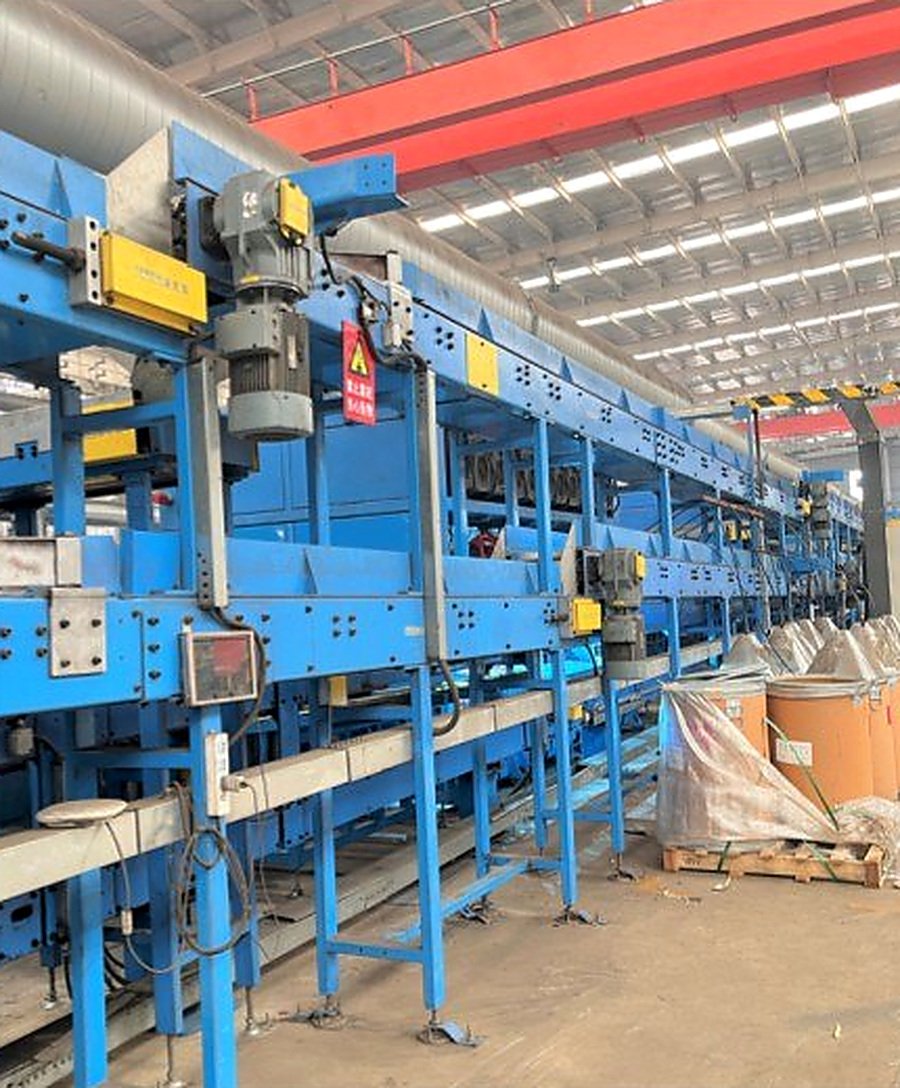

03 / PRODUCTION TO DELIVERY
Ready for the scale
of your project.
Align the specification, order volume and delivery plan before production. From workshop to container, keep your procurement requirements in focus.
01ConfigurationConfirm system, height, finish and accessories.
02ProductionAgree on quantities and the manufacturing schedule.

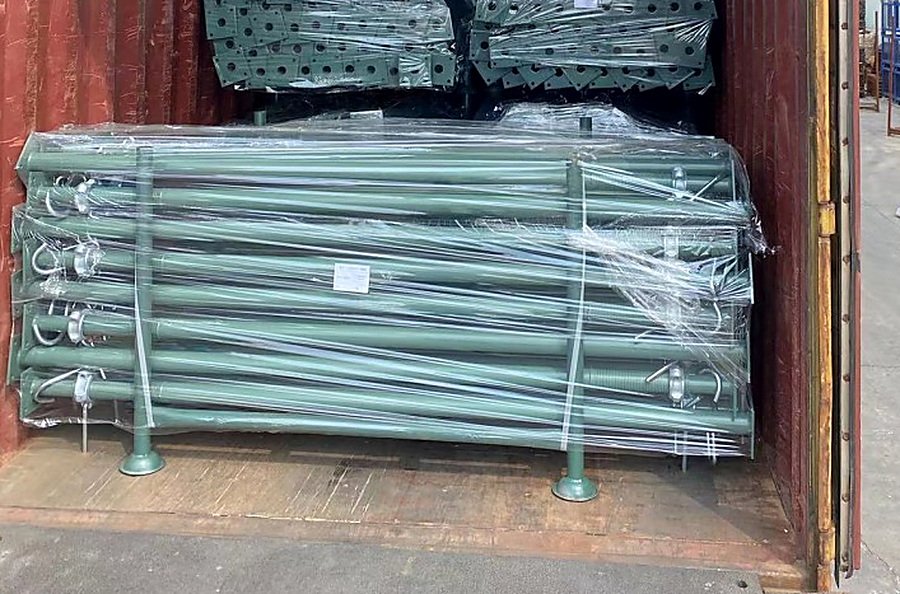

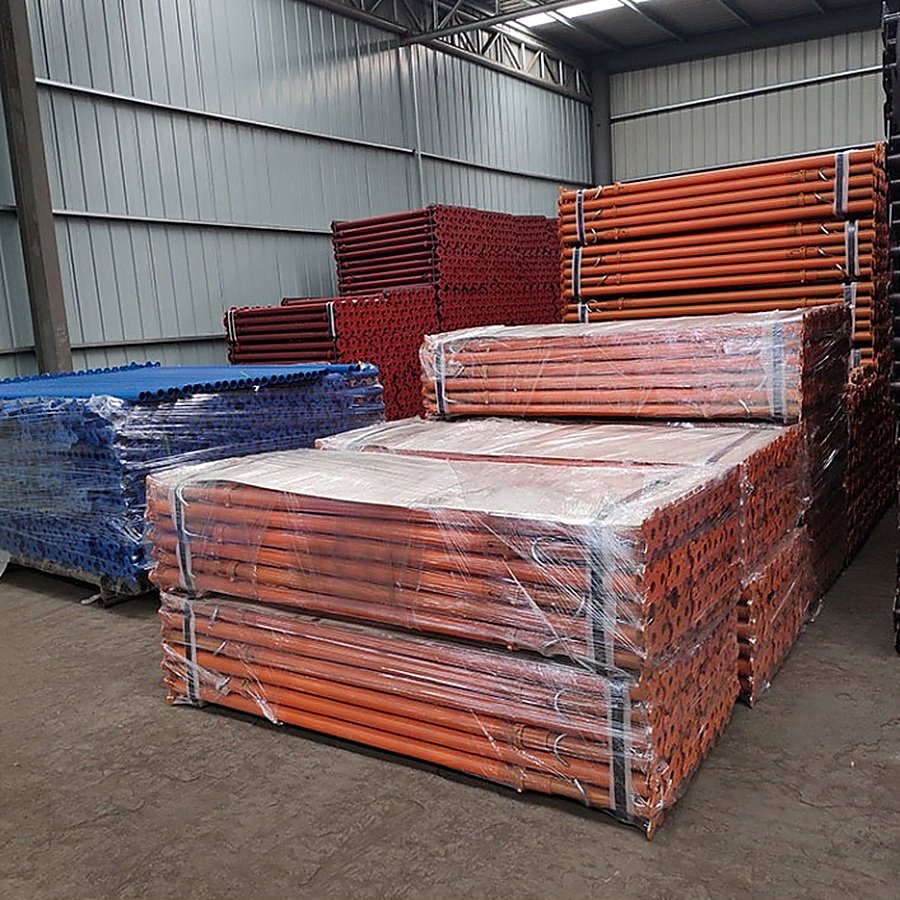

03Export packingPlan pallet packing and destination requirements.
FINISHES & APPLICATIONS
From the sample to the site.
Explore finish references and support arrangements. Final prop layout and loading depend on the project design.

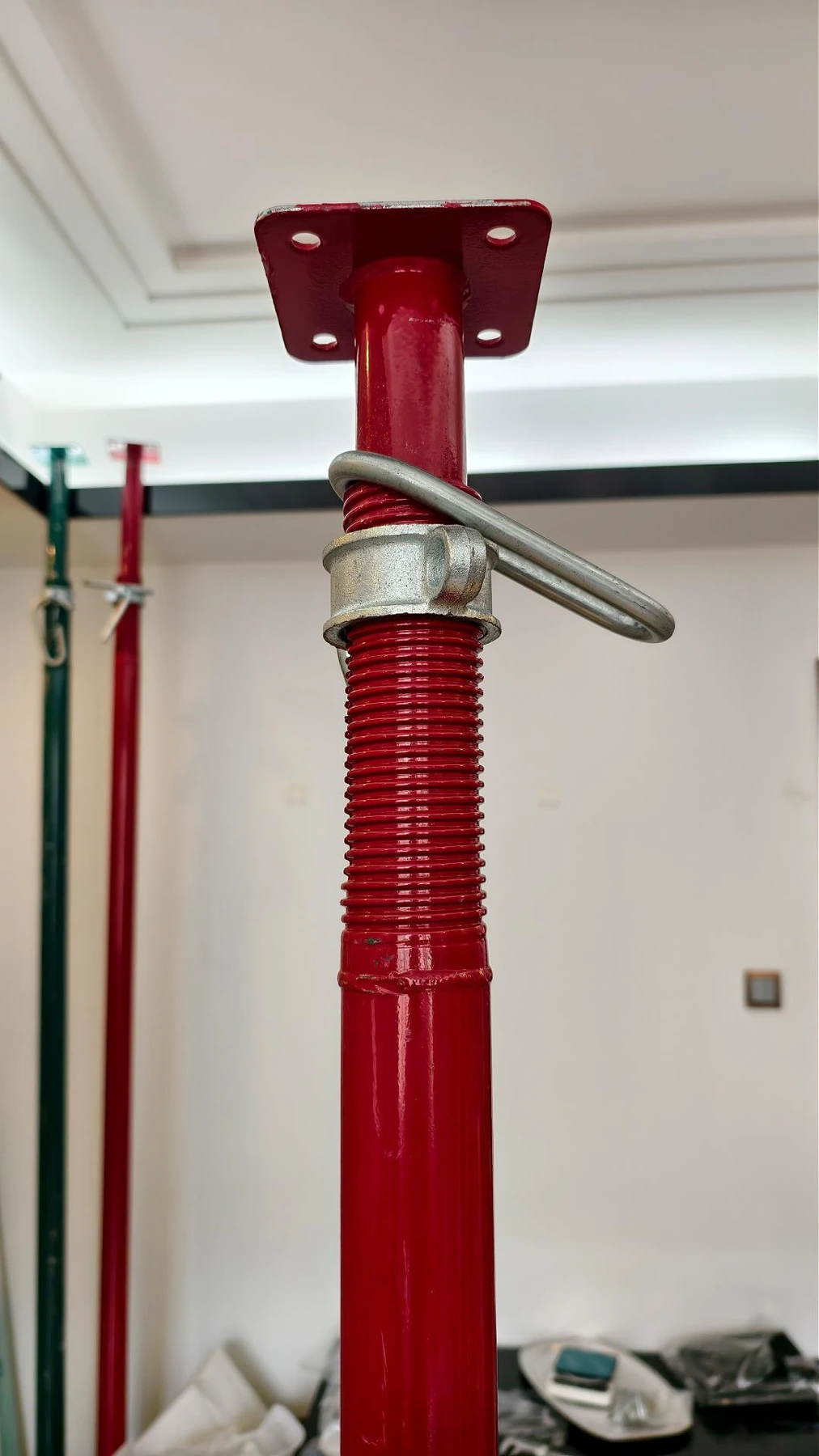

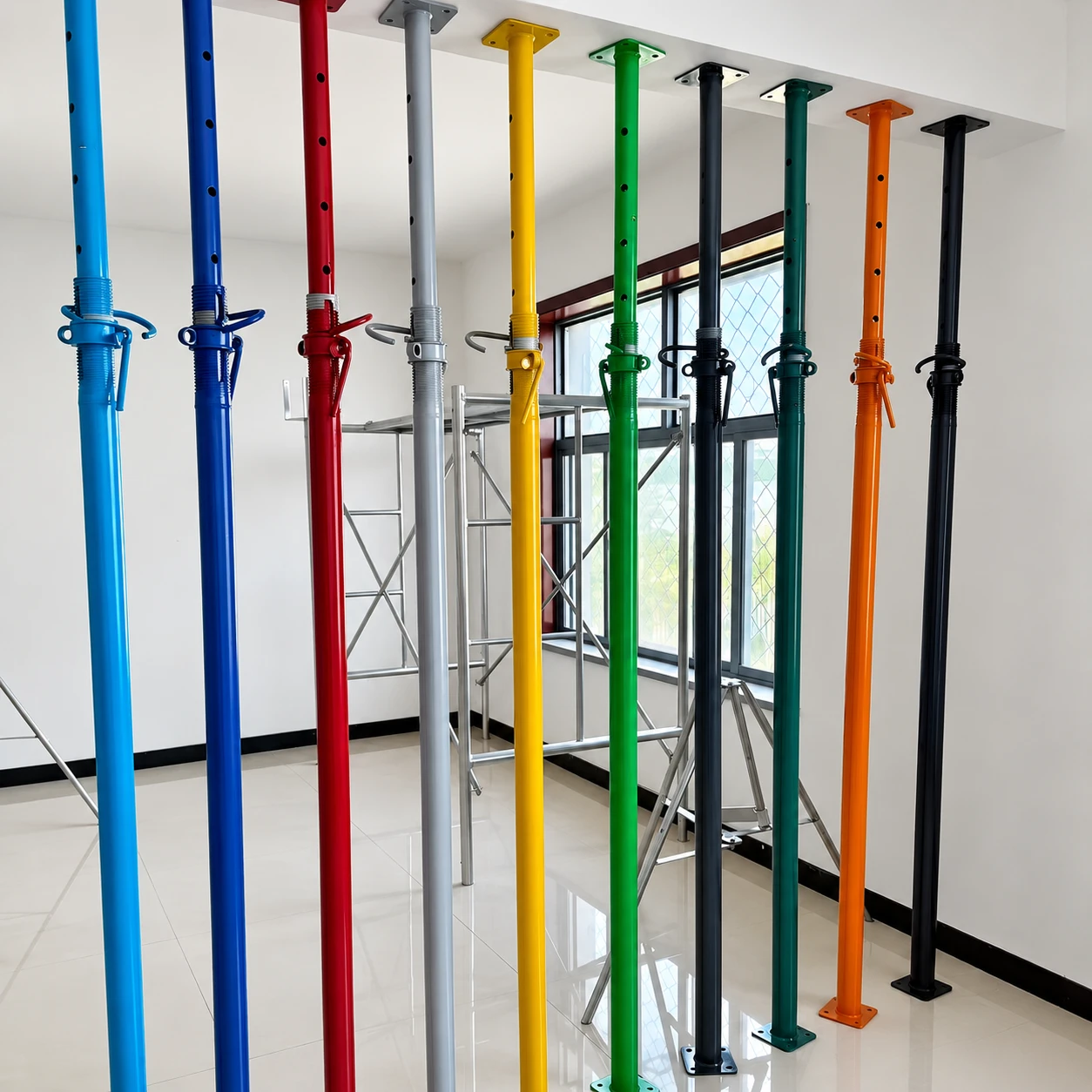

Red painted Nuohong sample
Colour and finish references

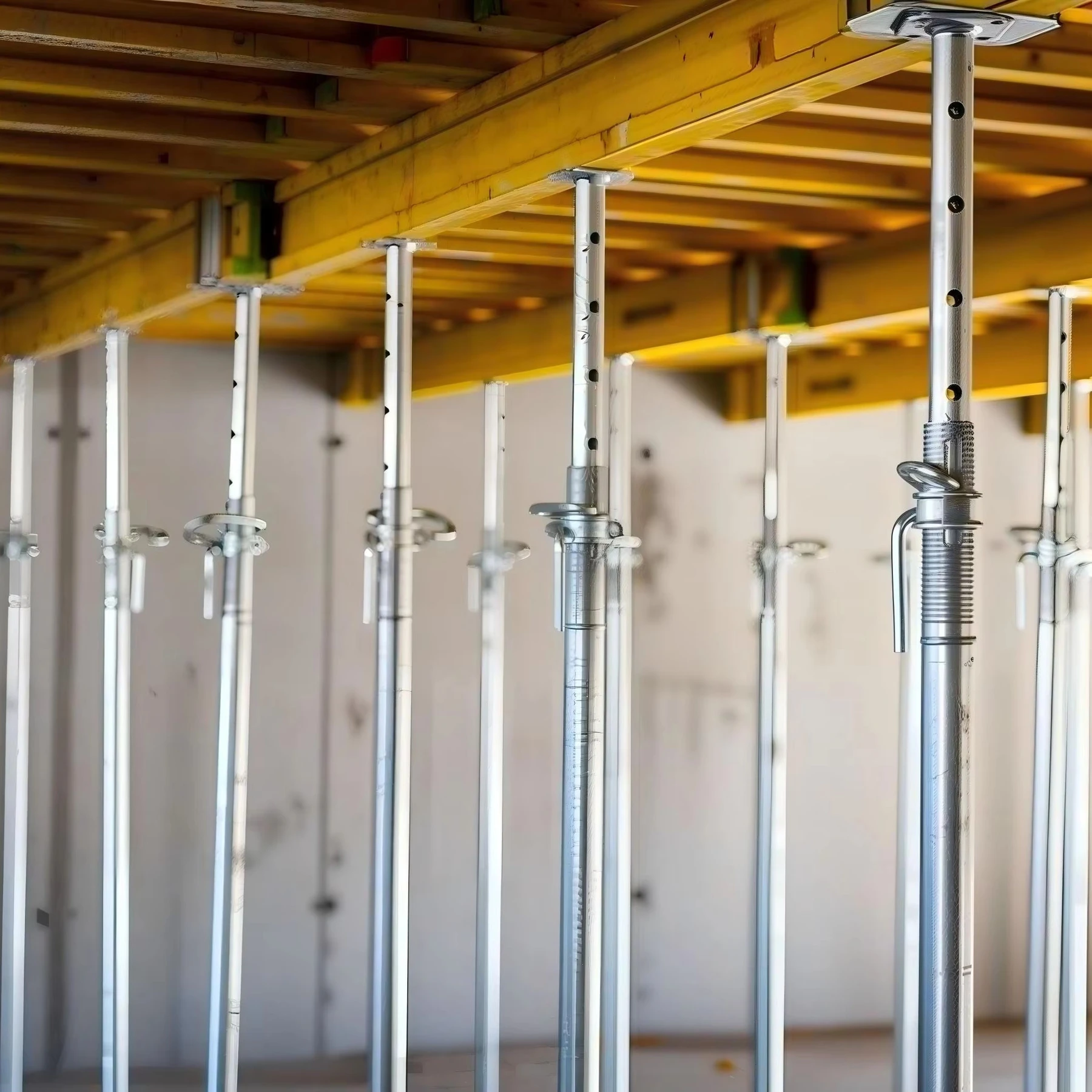

Slab formwork support illustration

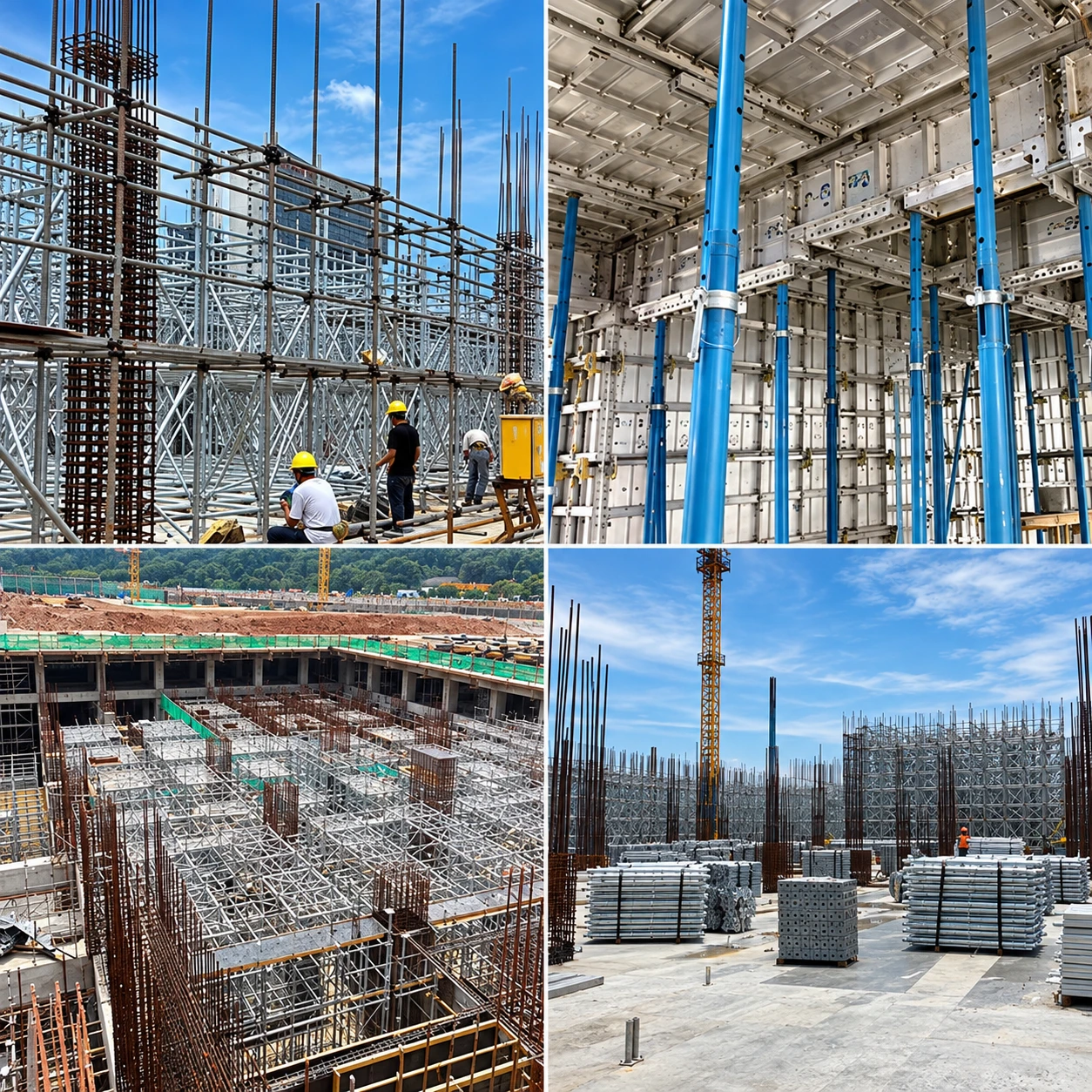

Construction application references

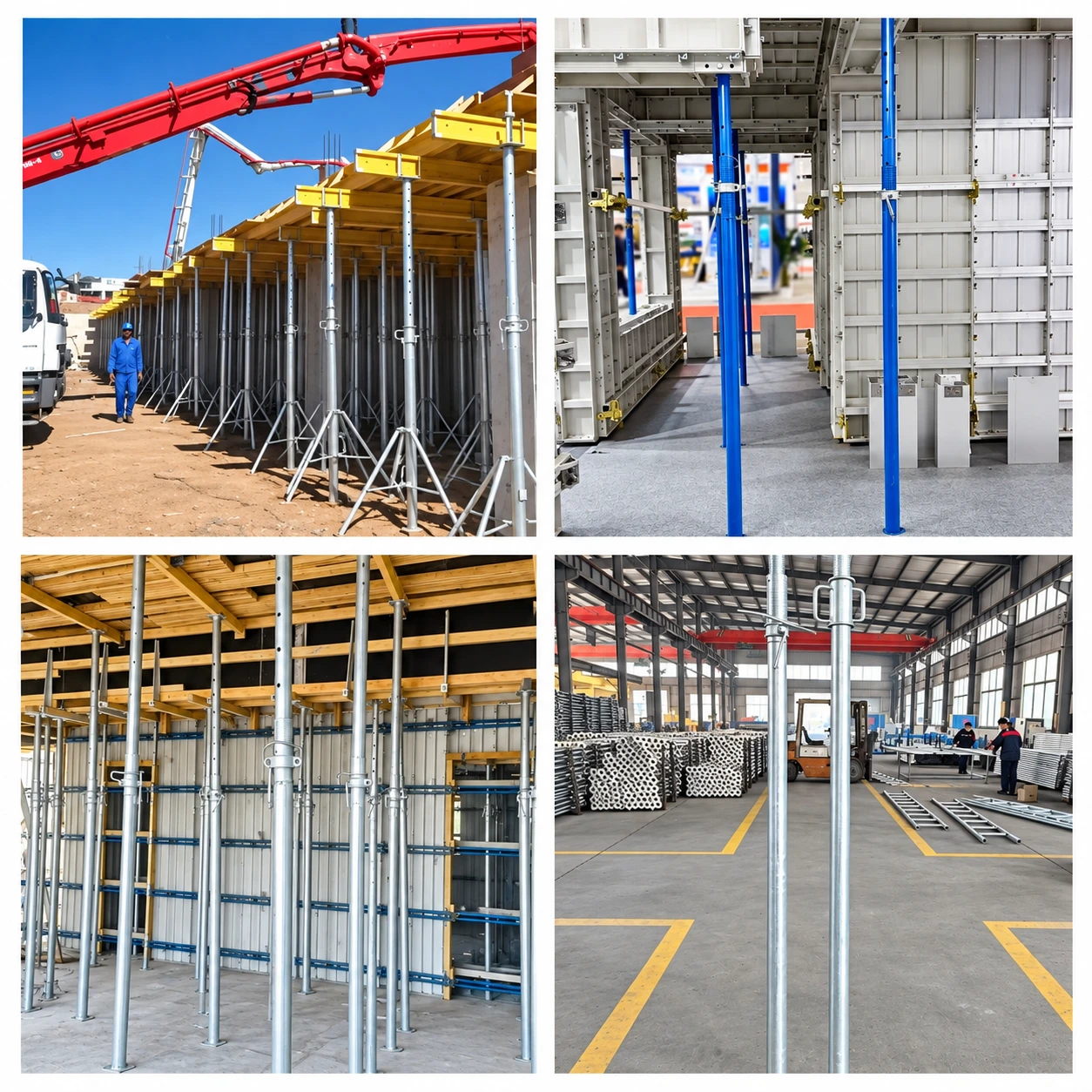

Formwork and shoring arrangements
Application images illustrate typical arrangements and do not establish a load rating. Agree the coating specification and colour sample before production.
MATCHED COMPONENTS
Need individual prop parts?
Explore sleeves, cup-type and ring nuts, support pins and plates with reference dimensions and close-up videos.
TIMBER FORMWORK BEAMS
Complete the slab formwork arrangement.
Explore Nuohong H20 timber beams, reference sections, length options and applications with suitable props and heads.
FACTORY APPLICATION / STEEL PROP + H20
How the prop supports the beam.
This factory demonstration pairs adjustable steel props with H20 timber formwork beams. Four-way fork heads cradle the primary beams beneath the facing; the visible braces stabilize the demonstration arrangement.
The facing carries a separate brand. The video shows the assembly and connection detail, not a rated load or approved prop spacing. Confirm the complete formwork design for the project.
Explore H20 timber beams ↗Factory assembly · Four-way fork head and beam connection
FACTORY FILMS
Explore the supply behind the system.
Browse workshop stock, prop assemblies and the component sample room. Videos play on demand.

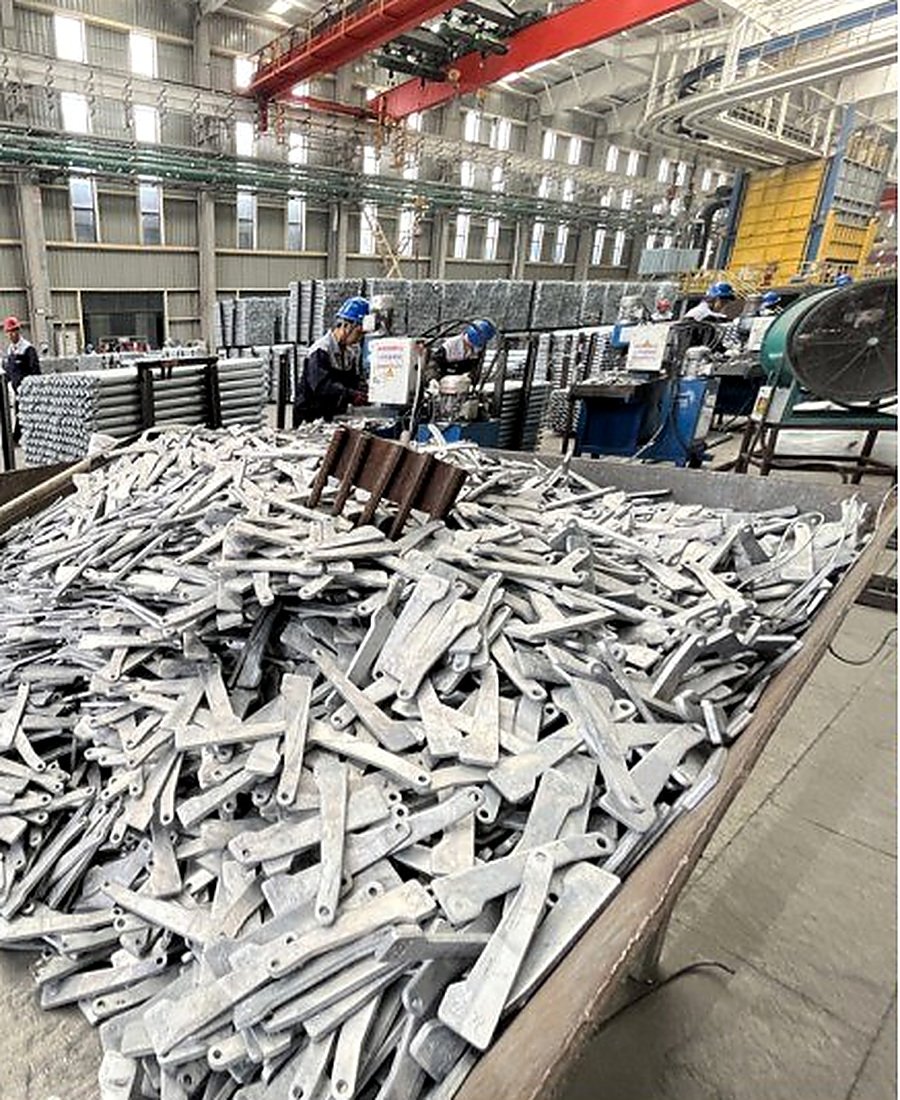

Semi-finished props & raw material
A closer look at tubes, profiled plates and components awaiting the next production stage.
Props & accessory warehouse
Stocked prop bundles and bagged components in the warehouse.
Cup-type components & assemblies
From unfinished handled bodies to finished parts and prop assemblies.
Component sample room
Compare adjustment nuts, sleeves, pins and plates before defining a matched order.
Finish & showroom details.
Compare full-size samples, adjustment mechanisms and surface appearance before confirming your prop order.

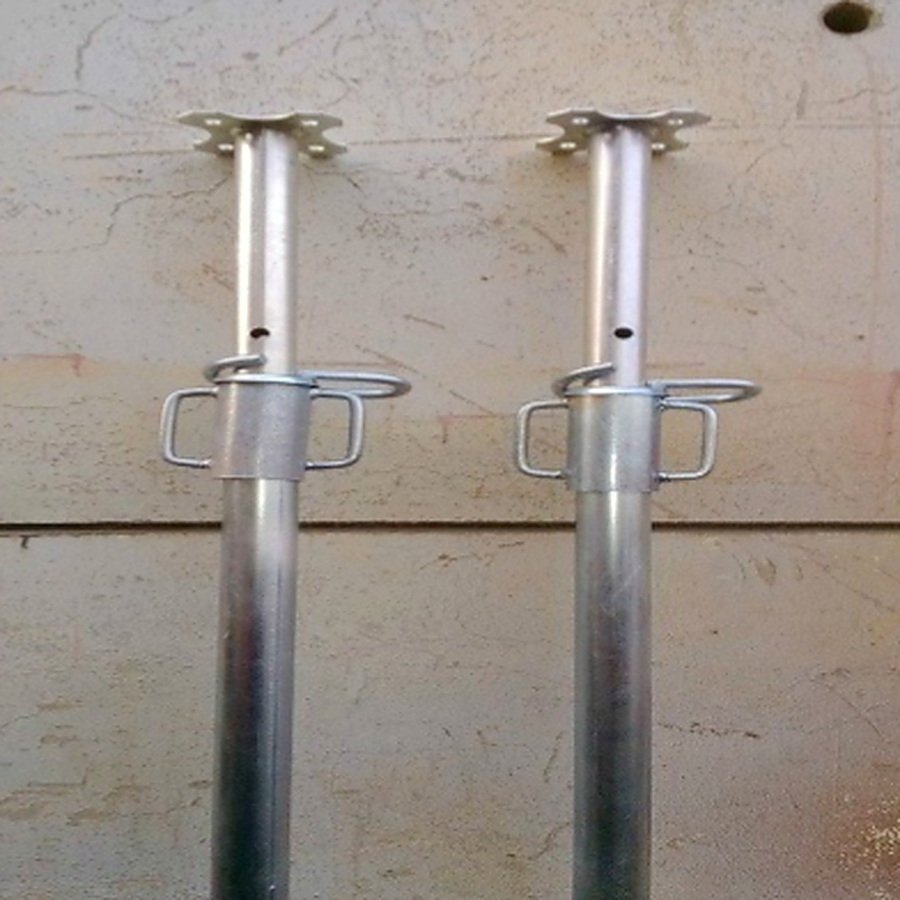

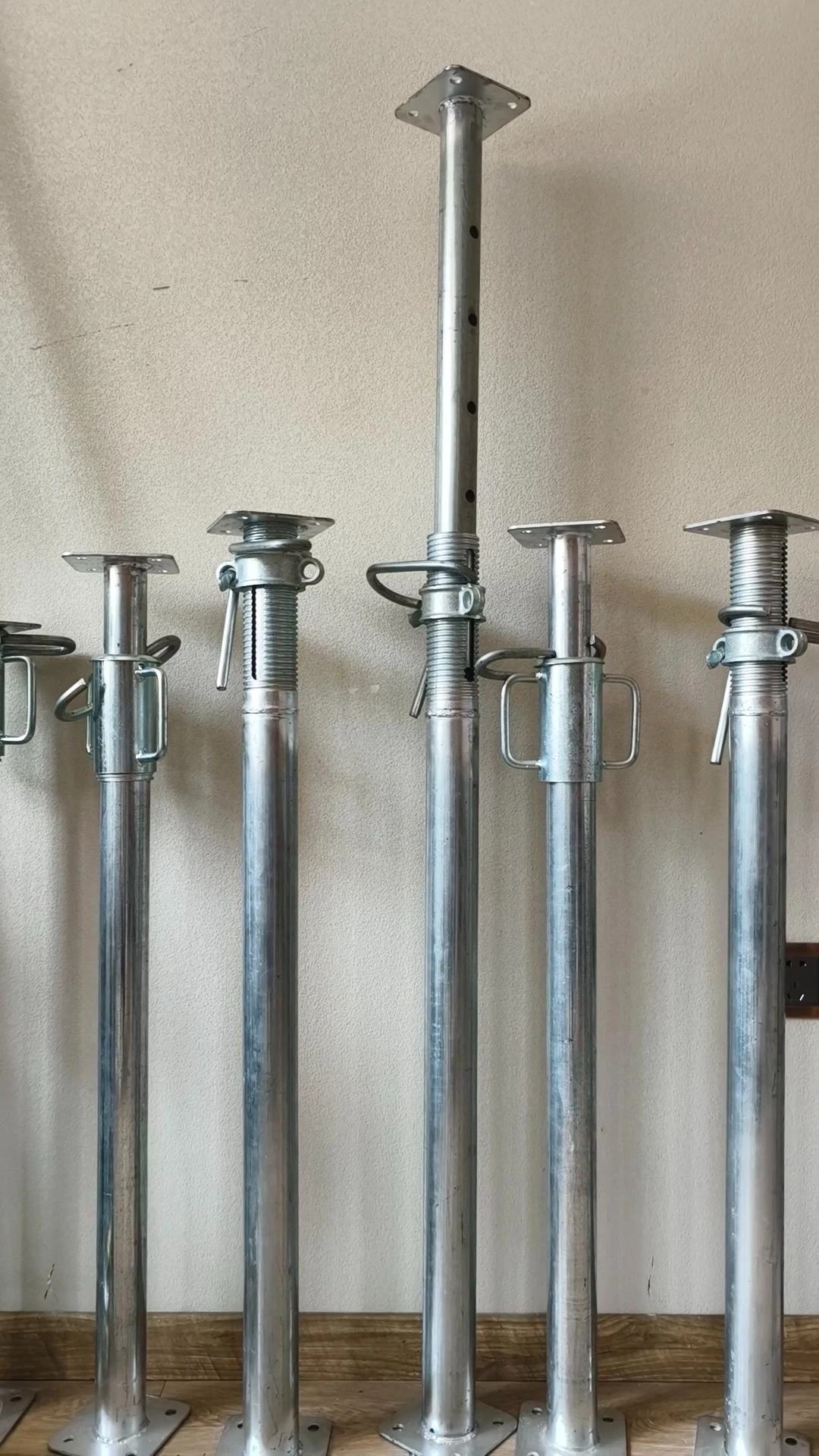

Galvanized prop samples
View the plates, tube arrangement and adjustment details together. Confirm the galvanizing specification and matching assembly for your order.

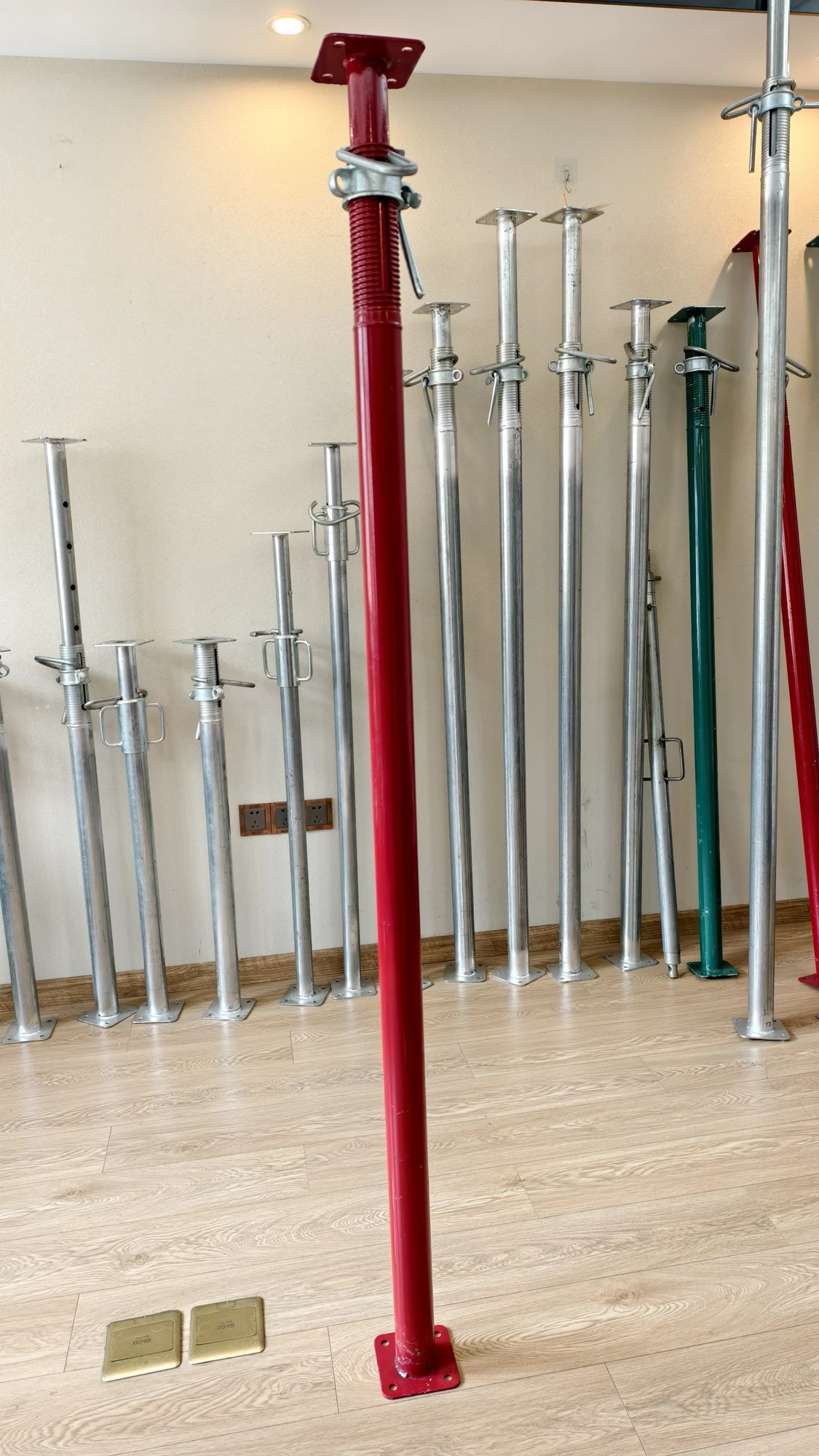

Your finish. Your configuration.
A painted sample makes the complete prop easier to compare. Agree the colour, coating process and component combination before production.
NUOHONG / FROM OUR FACTORY
Explore related films ↗See the prop behind the specification.
Adjustment, finish and packing: real details to discuss before you place an order.
LET'S BUILD YOUR SUPPLY PLAN
Your project.
Our next conversation.
Tell us your required prop system, quantity and destination. Prepare a clear inquiry for your procurement team.
