01 / CONNECTION

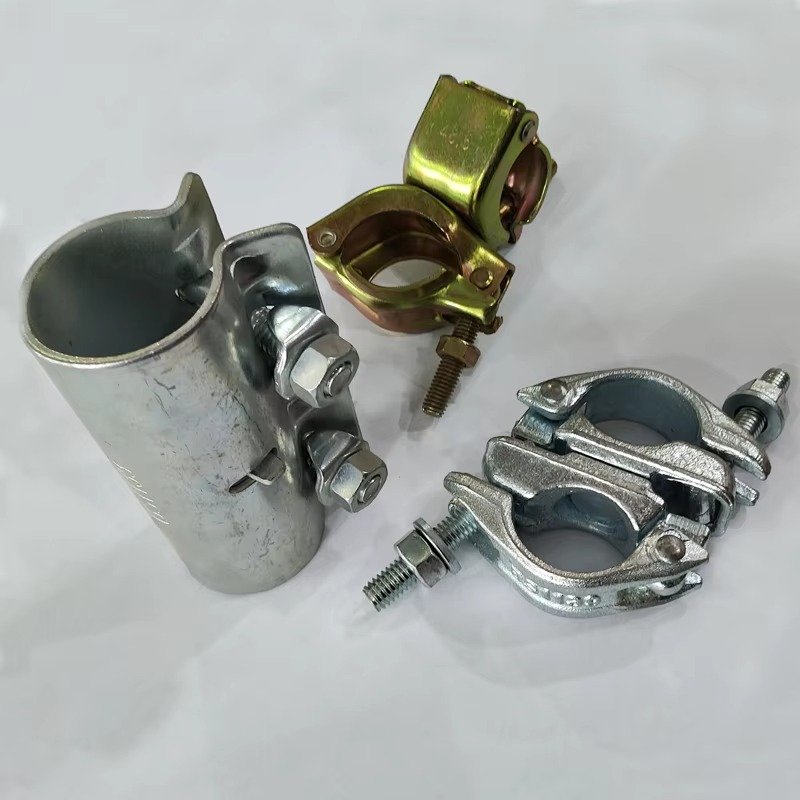

Forged Couplers
Forged couplers for 48.3 mm scaffold-tube connections. Confirm coupler type and joint orientation.
PRODUCT VIDEOVideo01 / 10 — Scaffolding accessory installation
SCAFFOLDING ACCESSORIES
Nuohong General
Scaffolding Accessories
& Hardware
NUOHONG FACTORY CATALOGHebei manufacturing · Yiwu export office
A broad component range for scaffold connection, retention, leveling, mobility and bracing. Select parts by scaffold system, tube diameter, connection method and project requirement.
ACCESSORY SHOWROOM VIDEO
PRODUCT RANGEScaffolding accessories sample presentation
Core materialQ235 steel
Tube compatibility42 / 48 / 48.3 mm options
Typical finishGalvanized / project-specific
Supply formatIndividual parts / assorted kits
Scaffolding accessories catalog 03 peer categories
Component types, dimensions and finishes are confirmed for each order.
01Broad accessory rangeConnection, locking, leveling and mobility parts
02System matchingConfirm tube size and connection interface
03Project supplyIndividual components or grouped procurement
01 / TECHNICAL OVERVIEW
Match each part to the scaffold system.
Use the catalog values as a selection reference, then confirm the drawing, tube diameter and connection method before ordering.
| Component | Catalog specification | Selection note |
|---|
Catalog values are reference specifications. Confirm load capacity, tolerances and coating requirements against the selected item drawing.
02 / ACCESSORY GROUPS
One catalog, multiple connection tasks.
Browse the general accessory families used across frame, mobile and tube-and-coupler scaffold arrangements.

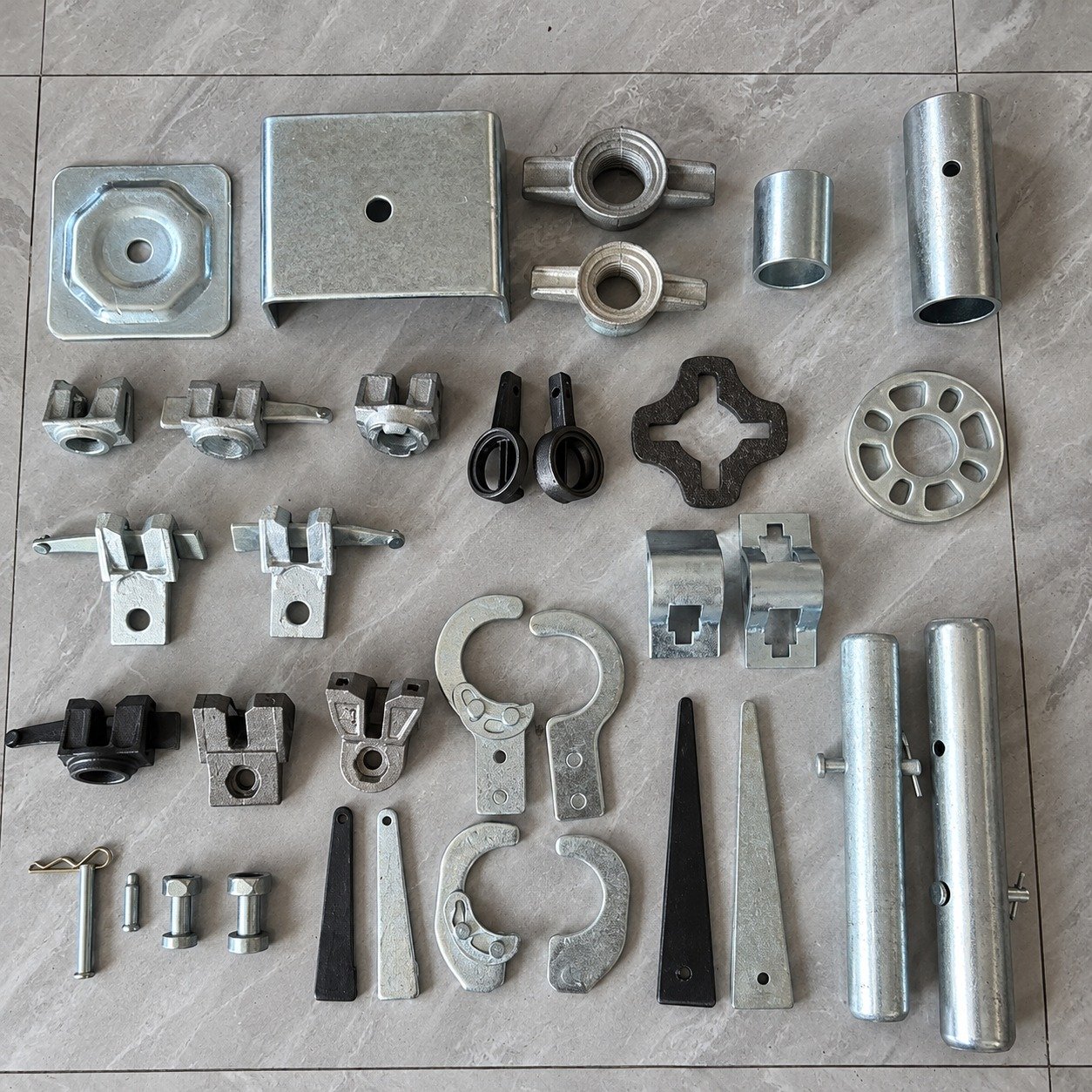

GENERAL ACCESSORIES
Connection, adjustment and stability parts.
The range covers couplers, latch pins, spigots, sleeve connectors, jack bases, U-heads, caster wheels, tie rods, cross braces and triangular supports.
Parts must be matched to the intended scaffold tube, frame profile and assembly method.
02 / RETAINERS
Locking & Latch Pins
Multiple pin and latch formats for retaining connected scaffold parts.
03 / JOINING
Spigots
Connector pieces for joining compatible tubes and frame sections.
04 / CONNECTORS

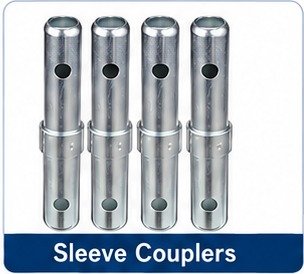

Sleeve Couplers
Tubular connectors for compatible scaffold standards and frame tubes.
05 / LEVELING
Base Jacks
Threaded base adjustment for leveling scaffold assemblies.
06 / SUPPORT
U-Head Jacks
Adjustable U-head supports for beams and temporary support arrangements.

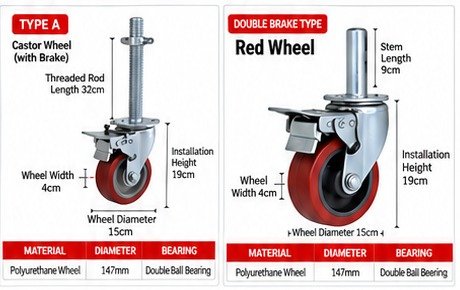

07 / MOBILE BASE
Caster Wheels
Brake-equipped caster options for mobile scaffold configurations.
08 / STABILITY
Triangular Support
Outrigger-style support shown with a 2 m diagonal and 0.9 m lower tie.
09 / BRACING
Cross Braces
Brace pairs that locate bay spacing and stabilize compatible frame systems.
10 / BRACING
Tie Rods
Tie and brace rods supplied to suit the selected connection layout.

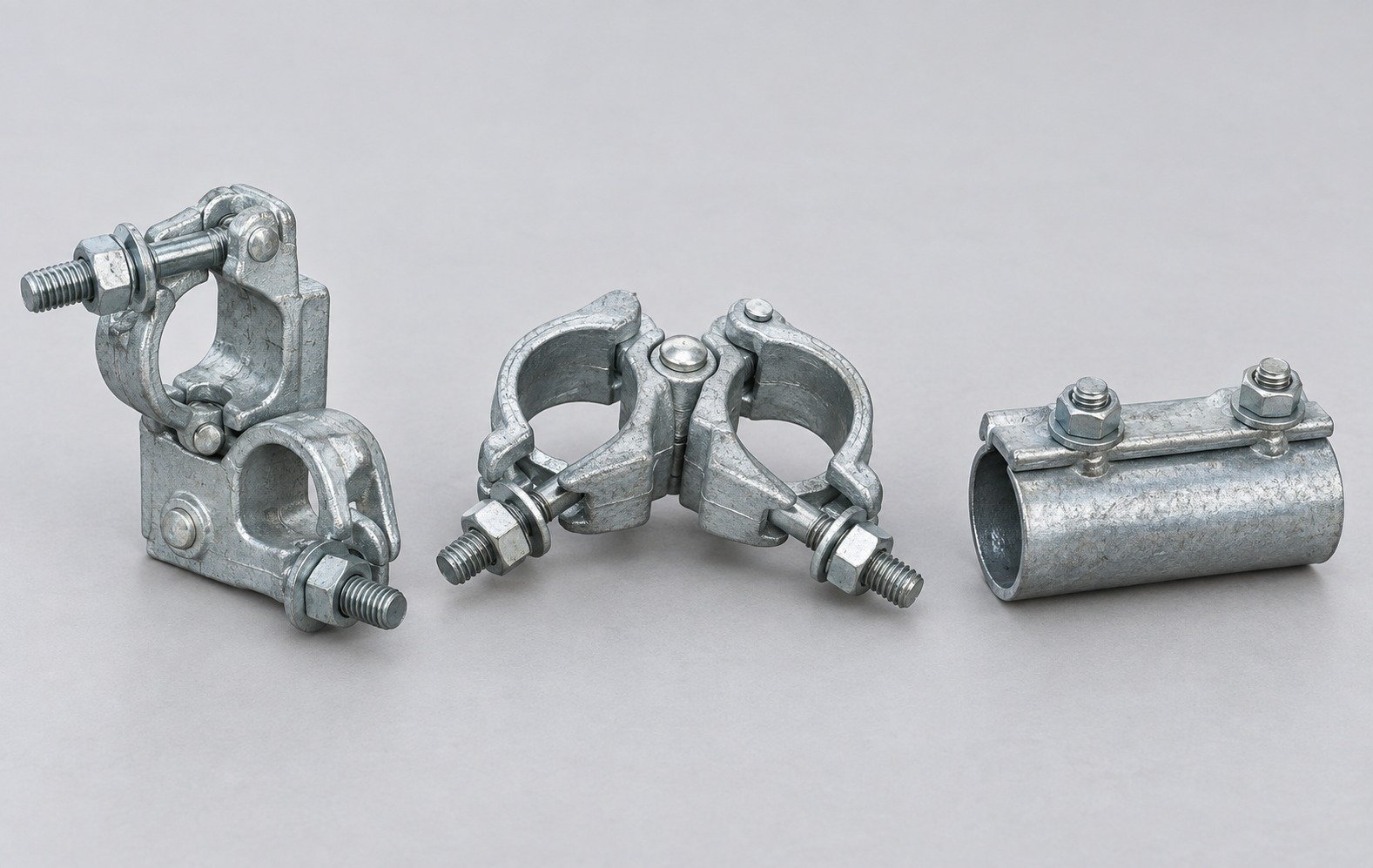

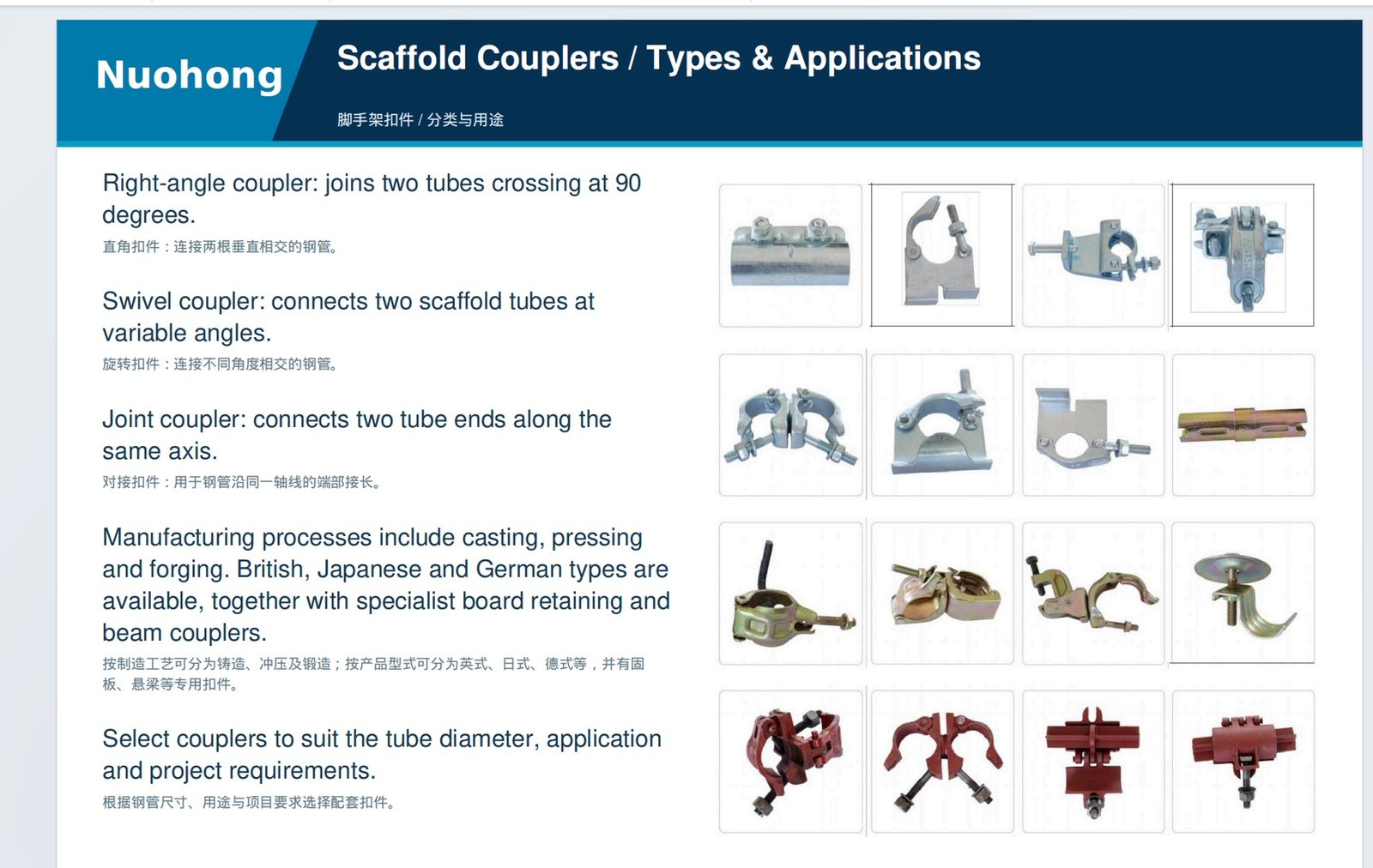

COUPLER TYPES & APPLICATIONS
Choose the connection for the job.
Right-angle, swivel and joint couplers solve different tube-connection tasks. Match the form to the connection angle, tube diameter and project drawing.
Right-angle coupler
Connects scaffold tubes crossing at 90 degrees.
Swivel coupler
Connects intersecting tubes at a variable angle.
Joint coupler
Joins two tube ends along the same axis.
Casting, pressing and forging options are shown in the range. Confirm the selected item's size, finish and connection details before ordering.
03 / DIMENSION & QUALITY CONTROL
Dimensions verified before project supply.
Representative checks document the dimensions, wall thickness, weight and fabricated interfaces that affect site compatibility.

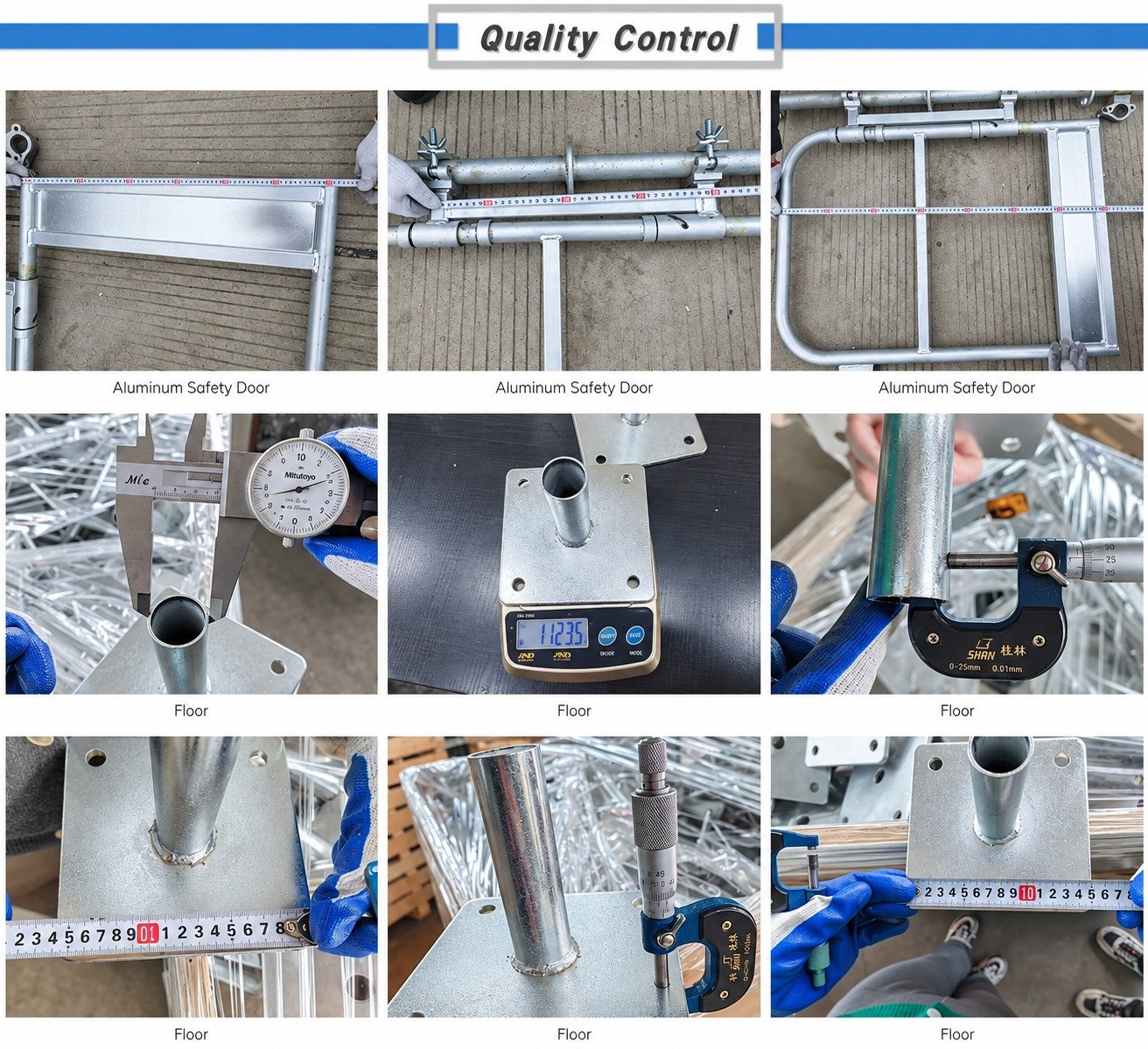

QUALITY CONTROL
Measured details for accessory matching.
Inspection records document representative dimensional checks for aluminum safety doors and scaffold floor-support components.
- Overall safety-door and frame width
- Tube outside diameter and wall thickness
- Component weight and base-plate dimensions
- Fabricated joint and welded-interface inspection

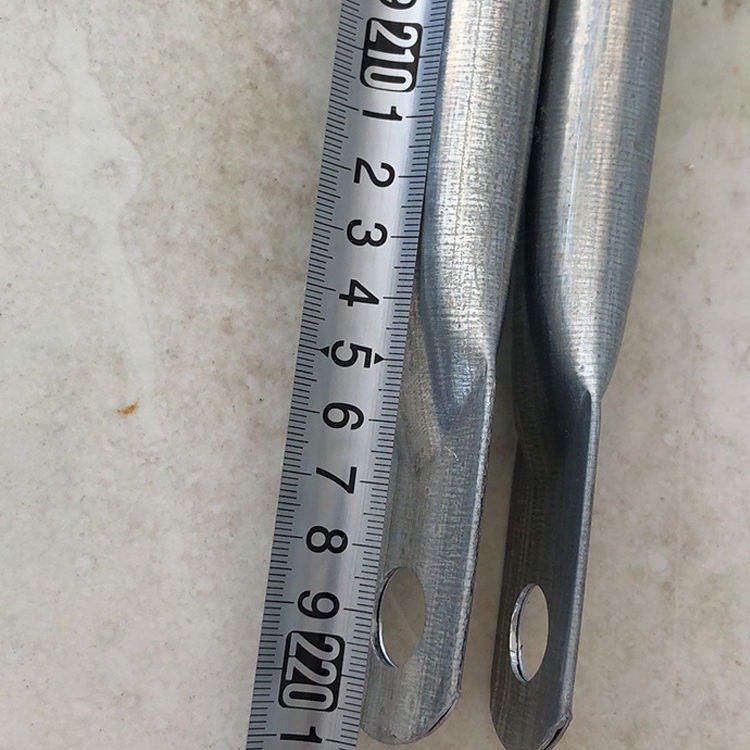

LENGTH CHECKCross-brace overall length and end-hole position
Tape verification records the finished brace length and flattened connection-end geometry before packing.

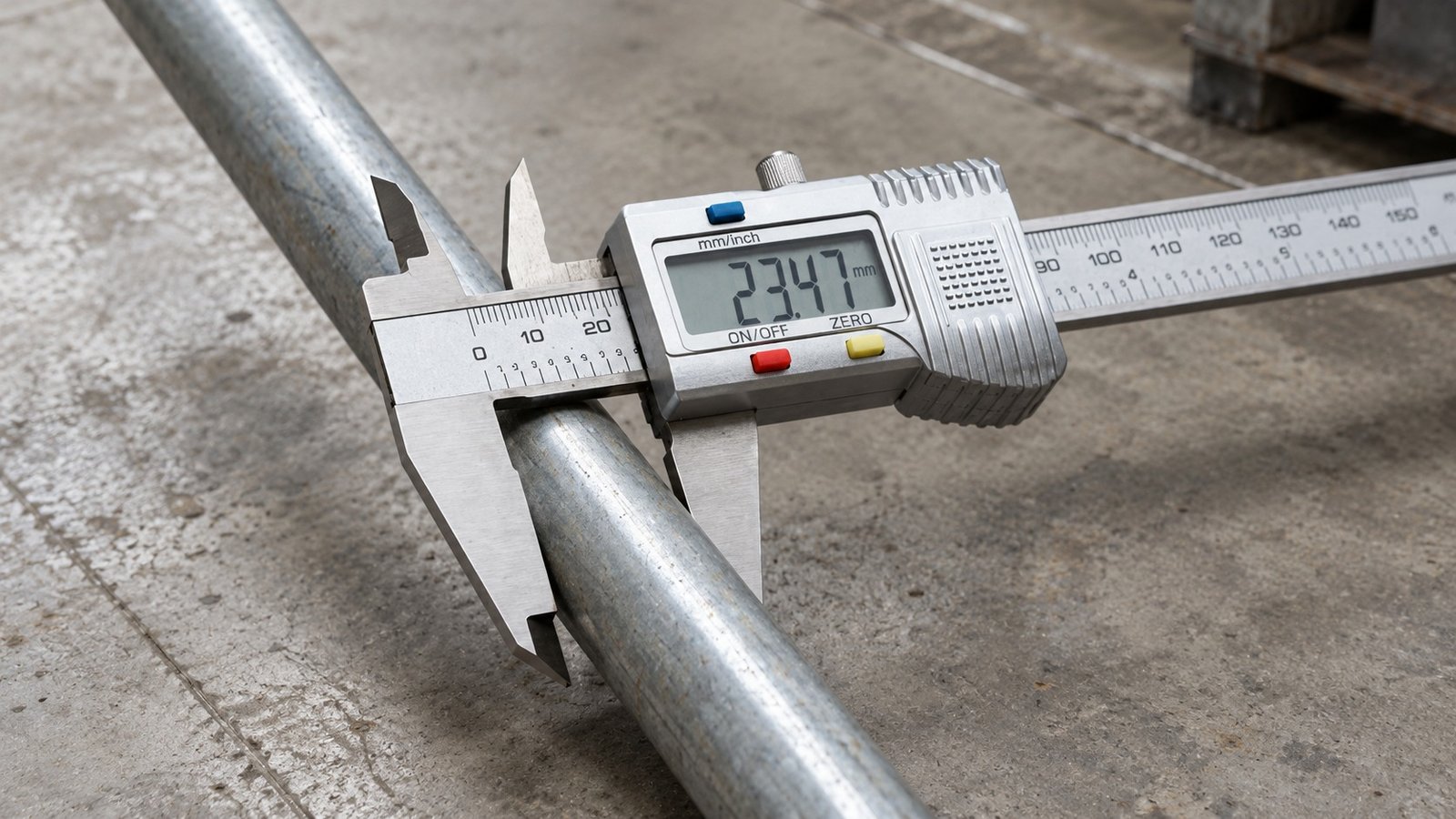

DIAMETER CHECKTube outside diameter — 23.47 mm shown
Digital-caliper inspection confirms the measured tube diameter against the product drawing and tolerance.
04 / APPLICATION SCENES
Accessories at work.
See how general scaffold accessories support site assembly and secure intersecting tubes in a working scaffold structure.

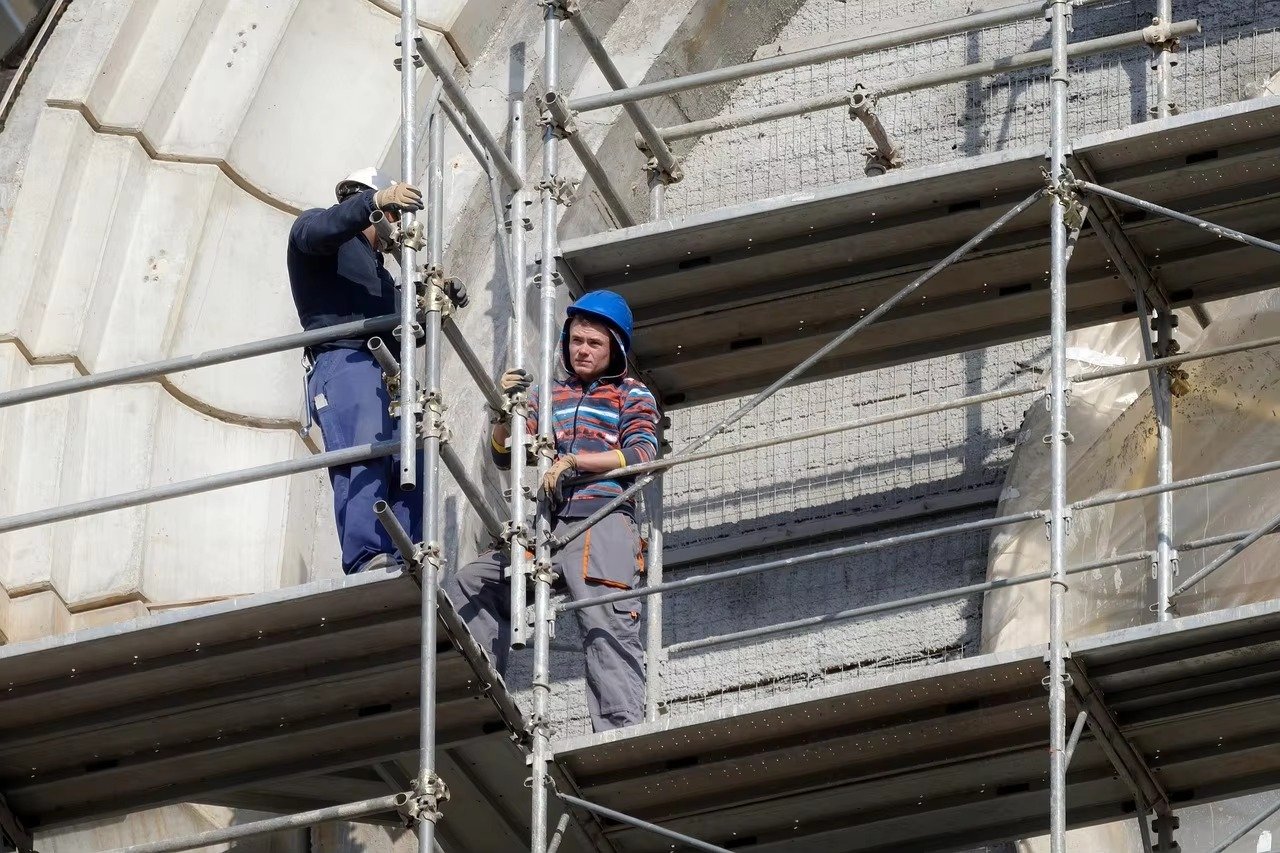

SITE ASSEMBLYScaffolding accessories supporting active construction work

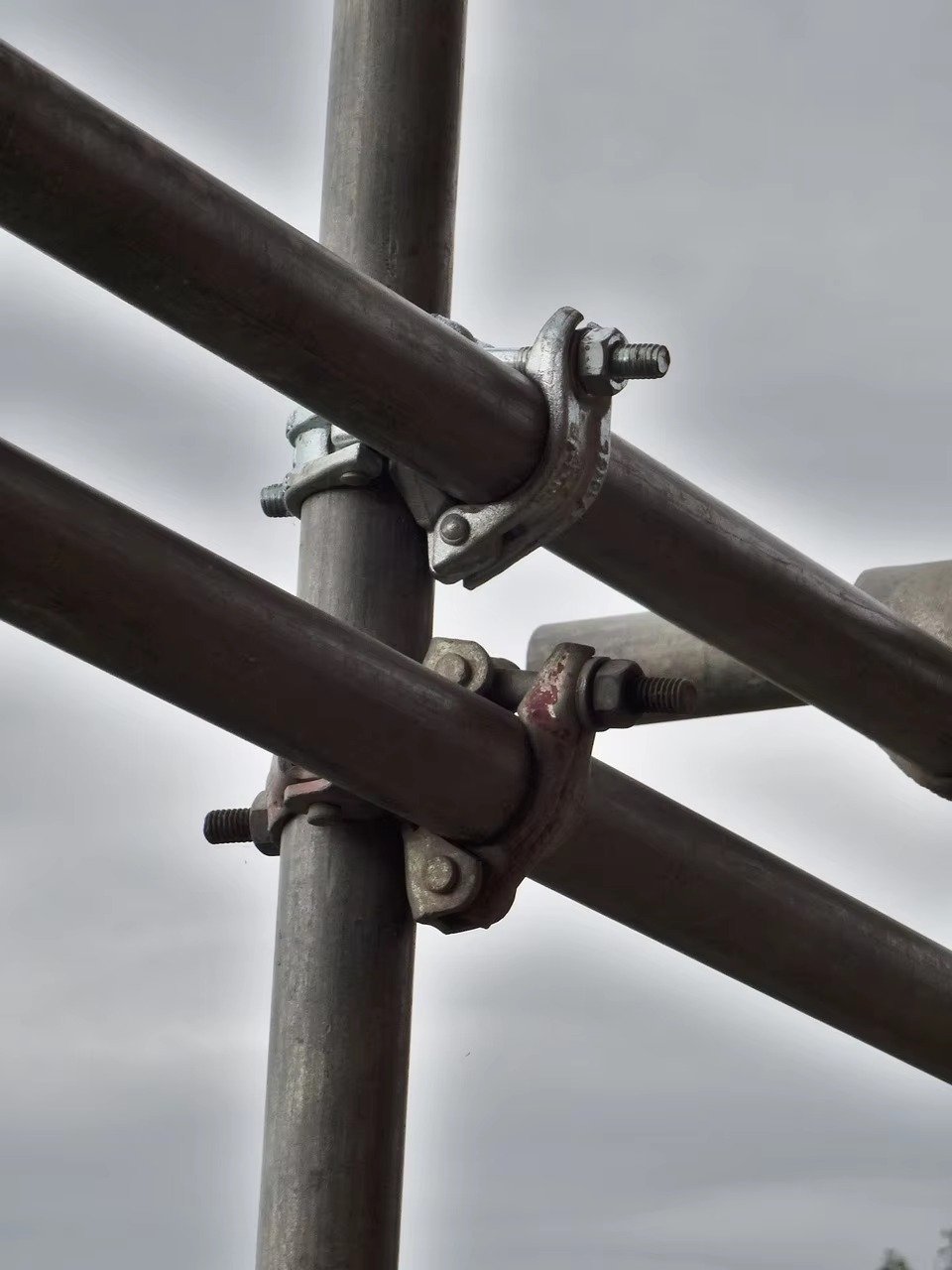

CONNECTION DETAILForged couplers securing intersecting scaffold tubes
05 / JACK SPECIFICATIONS
Jack Base and U-Head Jack sizes.
Compare Jack Base and U-Head Jack dimensions in responsive tables designed for clear reading on desktop and mobile.
PRODUCTION VIDEO
AUTOMATIC WELDING / PRECISION PRODUCTION
Consistent jack production from weld to finish.
The production video documents the automated welding process and repeatable fabrication used for Jack Base and U-Head Jack components.
- Controlled automatic welding cycle
- Stable positioning for repeatable joints
- Visual production and finish inspection
SCREW JACK SPECIFICATIONS

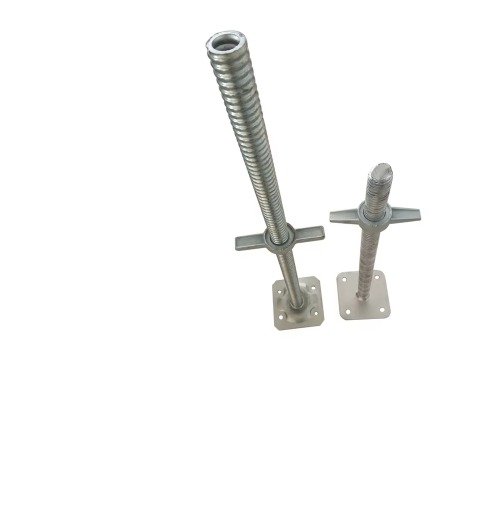

Jack Base
| Type | Specification | Base plate size |
|---|---|---|
| Solid | 30 × 400 mm | 120 × 120 × 4 mm |
| Solid | 30 × 600 mm | 120 × 120 × 4 mm |
| Solid | 32 × 400 mm | 120 × 120 × 4 mm |
| Solid | 32 × 600 mm | 120 × 120 × 4 mm |
| Solid | 34 × 400 mm | 120 × 120 × 4 mm |
| Solid | 34 × 600 mm | 150 × 150 × 5 mm |
| Hollow | 38 × 4 × 600 mm | 150 × 150 × 5 mm |
| Hollow | 38 × 4 × 660 mm | 150 × 150 × 5 mm |
| Hollow | 38 × 4 × 760 mm | 150 × 150 × 5 mm |
| Hollow | 48 × 4 × 600 mm | 150 × 150 × 5 mm |
| Hollow | 48 × 4 × 900 mm | 150 × 150 × 5 mm |
SCREW JACK SPECIFICATIONS

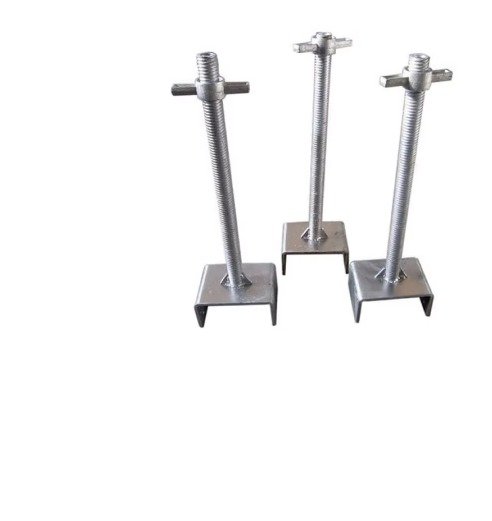

U-Head Jack
| Type | Specification | U-head plate size |
|---|---|---|
| Solid | 30 × 400 mm | 150 × 150 × 50 × 4 mm |
| Solid | 30 × 600 mm | 150 × 120 × 50 × 4 mm |
| Solid | 32 × 400 mm | 120 × 120 × 50 × 4 mm |
| Solid | 32 × 600 mm | 150 × 120 × 50 × 4 mm |
| Solid | 34 × 400 mm | 120 × 120 × 50 × 4 mm |
| Solid | 34 × 600 mm | 150 × 120 × 50 × 4 mm |
| Hollow | 38 × 4 × 600 mm | 150 × 150 × 50 × 5 mm |
| Hollow | 38 × 4 × 660 mm | 170 × 150 × 80 × 6 mm |
| Hollow | 38 × 4 × 760 mm | 165 × 150 × 50 × 5 mm |
| Hollow | 48 × 4 × 600 mm | 150 × 150 × 50 × 8 mm |
| Hollow | 48 × 4 × 900 mm | 200 × 200 × 50 × 8 mm |

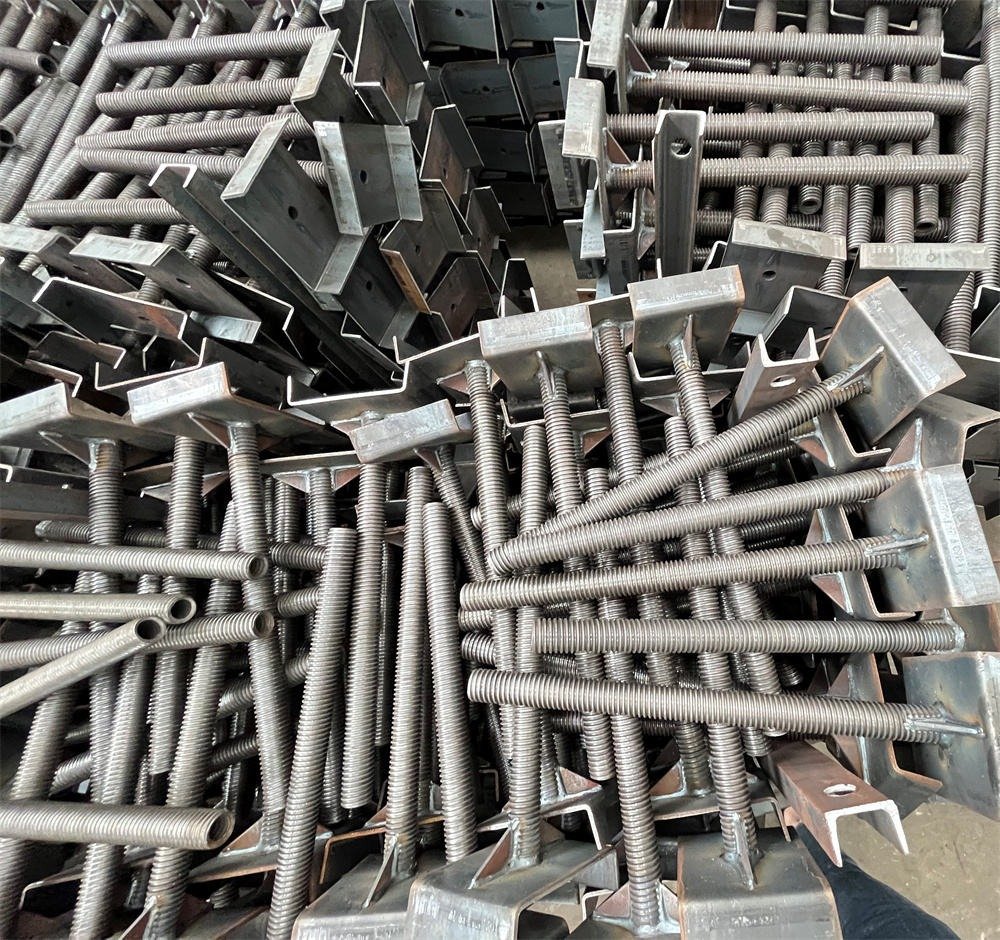

WAREHOUSE STOCK
Jack bases and U-head jacks prepared for project supply.
Solid and hollow threaded stems, base plates and U-head formats can be grouped by the selected scaffold system, dimensions, finish and order quantity.
GENERAL ACCESSORY PACKING
Assorted scaffolding accessories packed for dispatch.
This packing photo shows bagged general scaffold connectors and hardware grouped by item and quantity, secured in steel transport racks for warehouse handling and shipment.
06 / SELECTION GUIDE
Define the interface before the accessory.
Start with the scaffold system and connection point. This prevents a visually similar part from being ordered for the wrong tube or locking arrangement.
Identify the scaffold family
Frame, mobile, tube-and-coupler, cuplock and ringlock systems use different interfaces and retainers.
Confirm tube diameter
Catalog references include 42 mm, 48 mm and 48.3 mm tube-related options.
Define the connection task
Choose joining, locking, leveling, mobility, bracing or external support before selecting the part.
Specify surface treatment
Confirm galvanizing, coating and corrosion requirements for the target market and service environment.
07 / CATALOG SHEETS
See the range from overview to application.
Browse detailed product and specification views for connection, locking, leveling and support components.
FORGED CONNECTIONSCoupler formats for 48.3 mm scaffold tubes

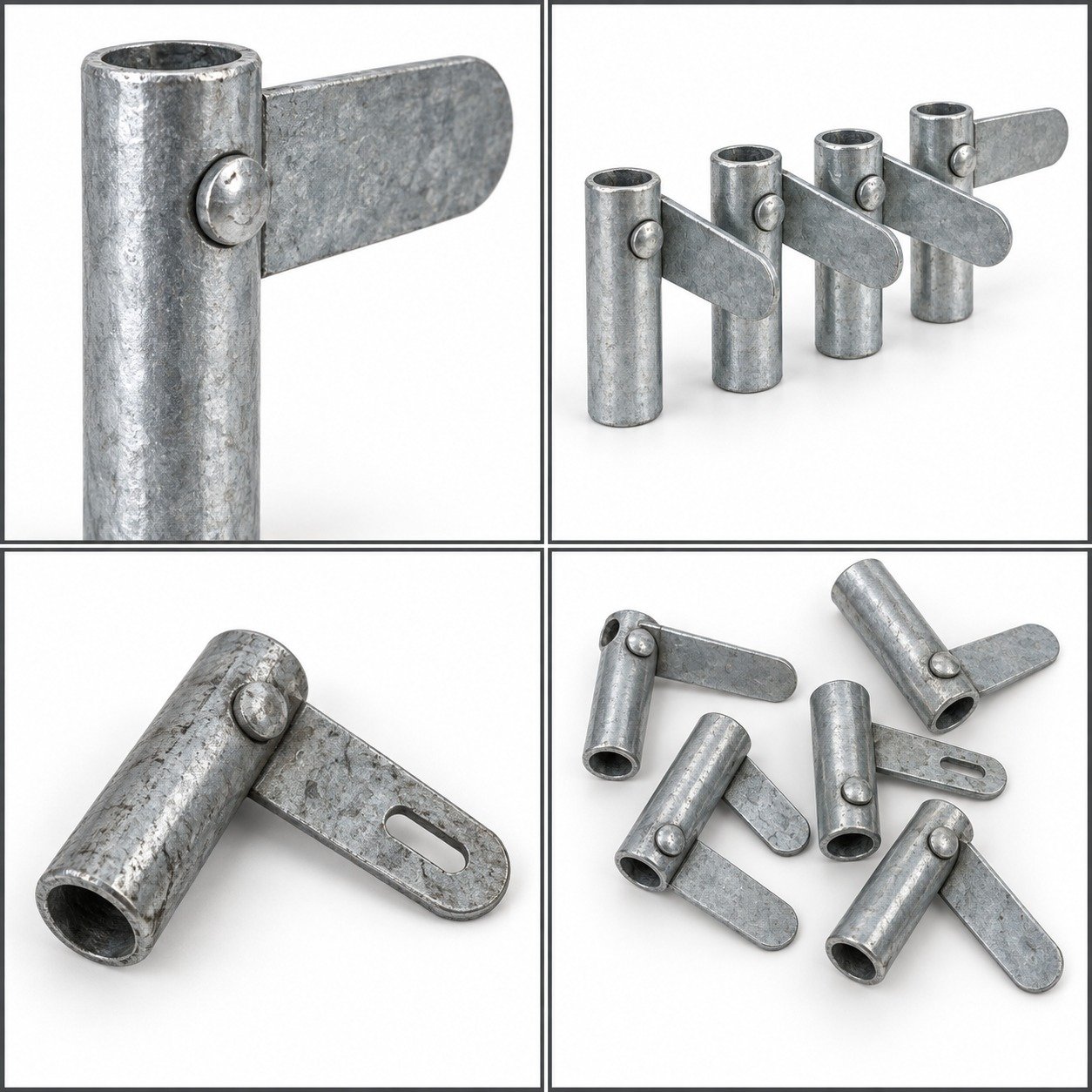

LOCKING DETAILSGalvanized scaffold retaining-pin formats

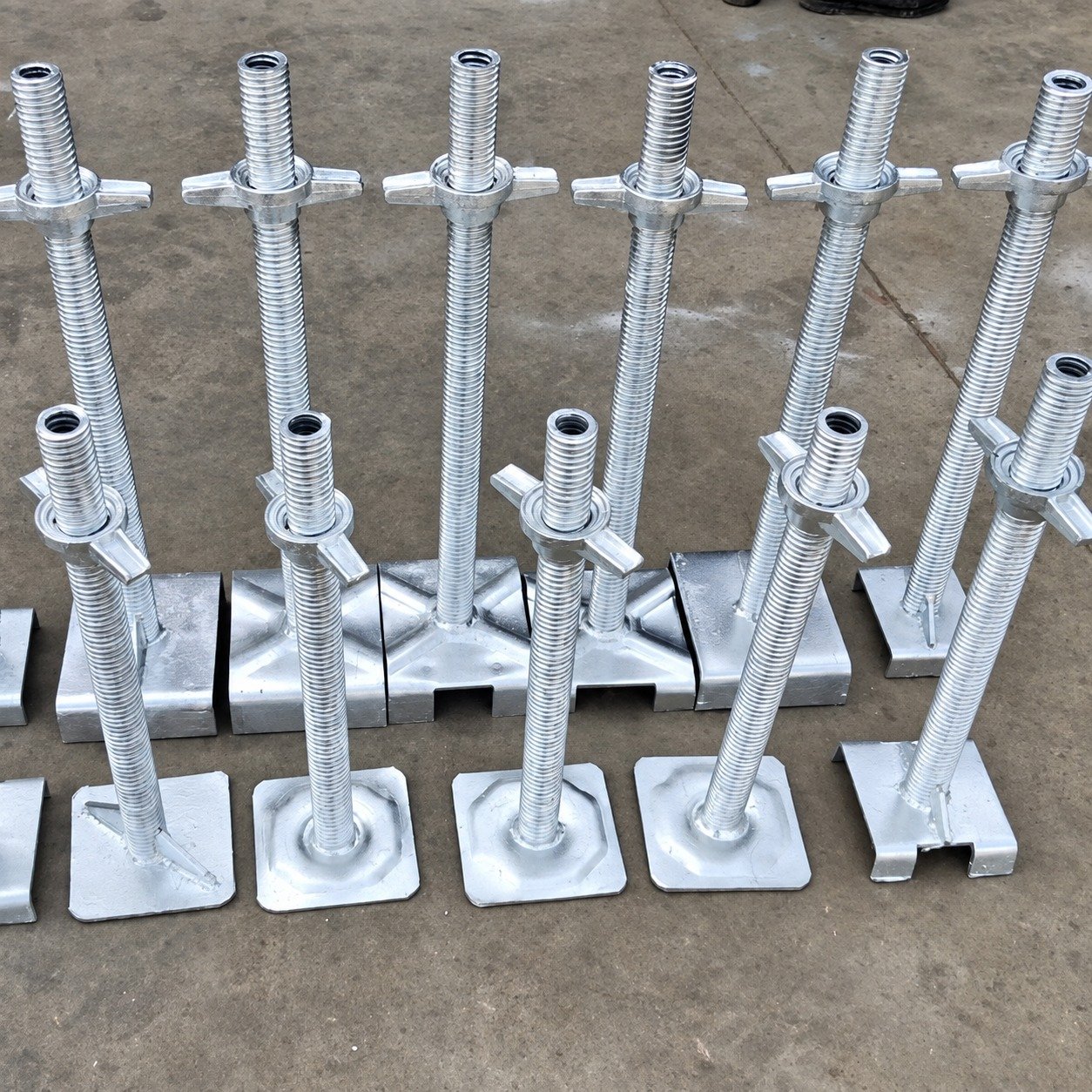

LEVELING SUPPORTGalvanized screw jacks for scaffold base adjustment

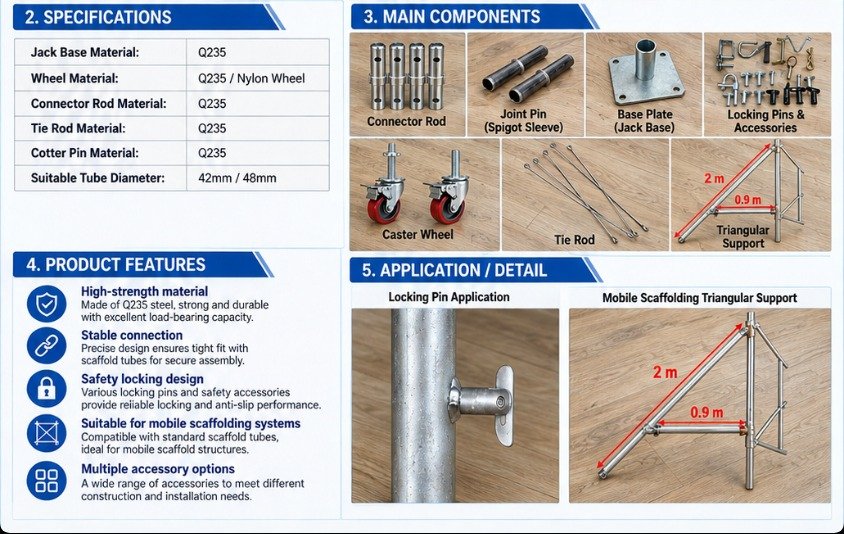

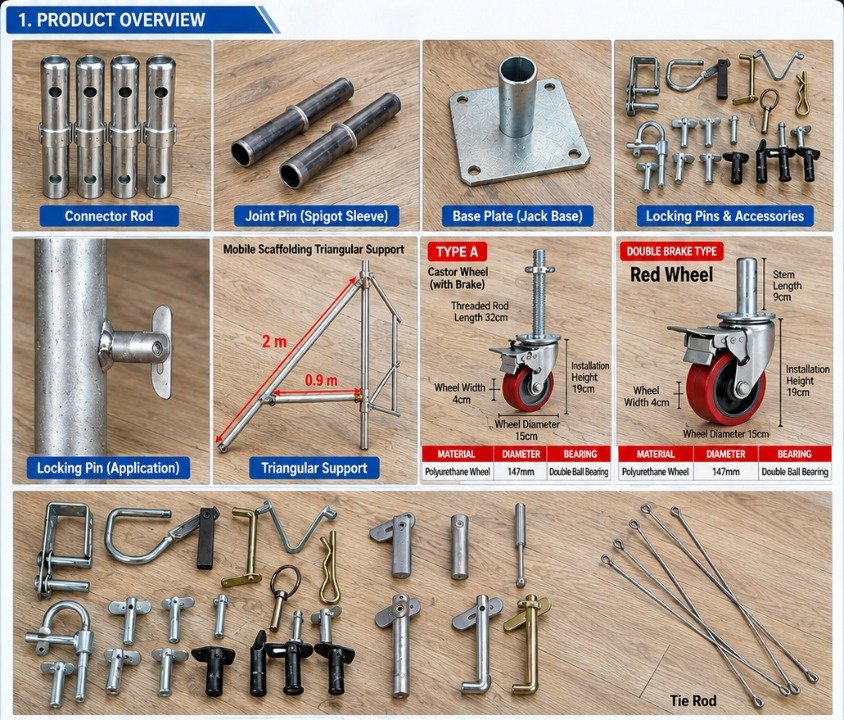

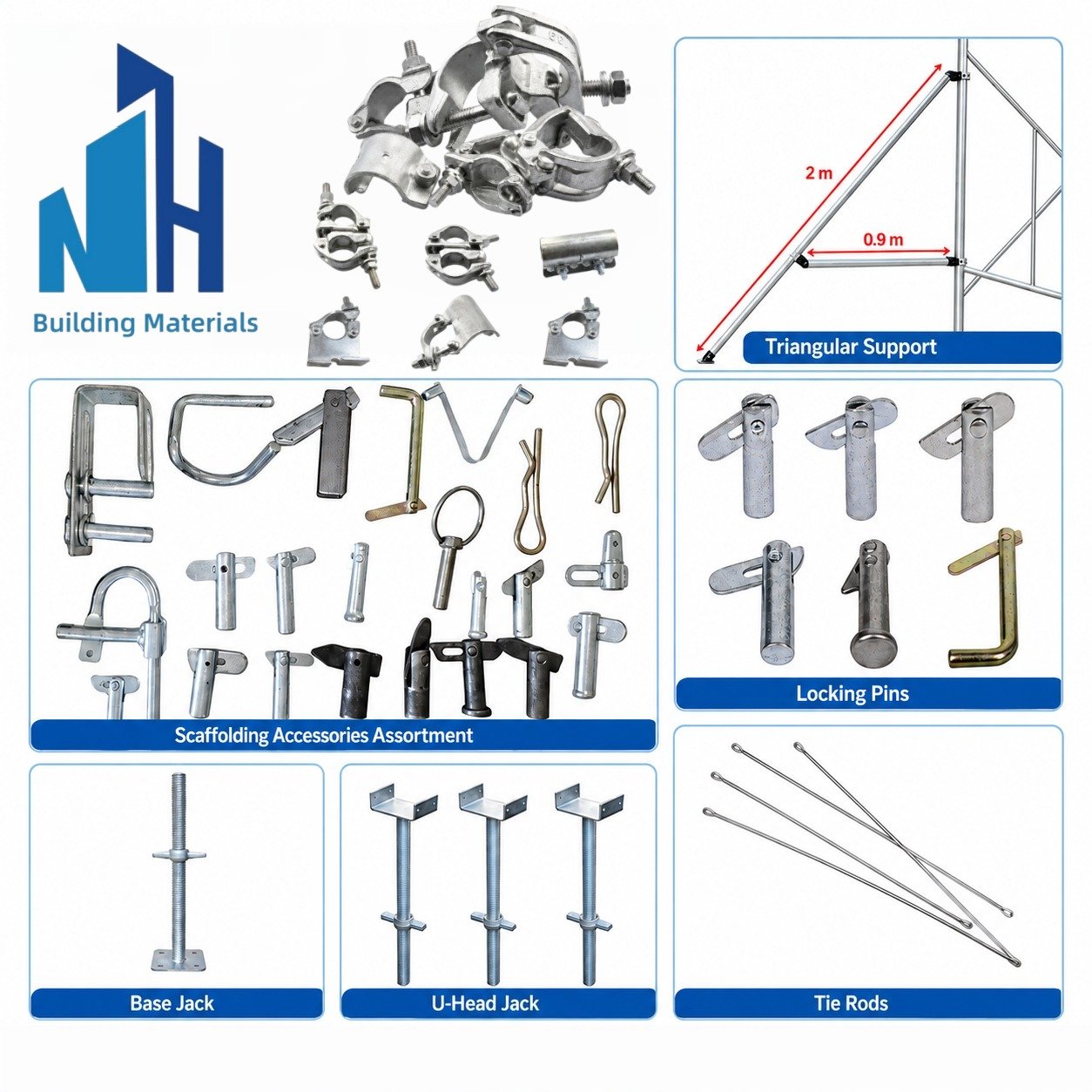

PRODUCT OVERVIEWConnectors, retainers, supports, casters and tie rods
08 / FACTORY & CATALOG INFORMATION
Nuohong Factory Catalog.
General scaffolding accessories are organized as a complete product category for project selection and inquiry.
NUOHONG / FACTORY CATALOG
Accessory supply tied to the complete scaffold system.
Nuohong coordinates accessory selection with the related scaffold system, project dimensions, surface finish, quantity and destination.
Component matching
Review tube diameter, joint interface, locking method and application before confirming the item.
Manufacturing & finishing
Steel processing, forging, machining, welding and surface treatment are arranged to the agreed specification.
Grouped project supply
Accessory quantities can be coordinated with frame, cuplock and ringlock system orders.
NUOHONG / FROM OUR FACTORY
Explore related films ↗Details you can see before you order.
From coupler hinges and bolts to base-plate and U-head formats.
MORE ACCESSORIES / WHATSAPP CONTACT
Need more accessories?
Send us your list.
Send product photos, dimensions, approximate quantity and destination. We can continue the accessory-matching conversation on WhatsApp after reviewing your request.
Nuohong Factory
Manufacturing: Hebei, China · Sales & export: Yiwu, Zhejiang
