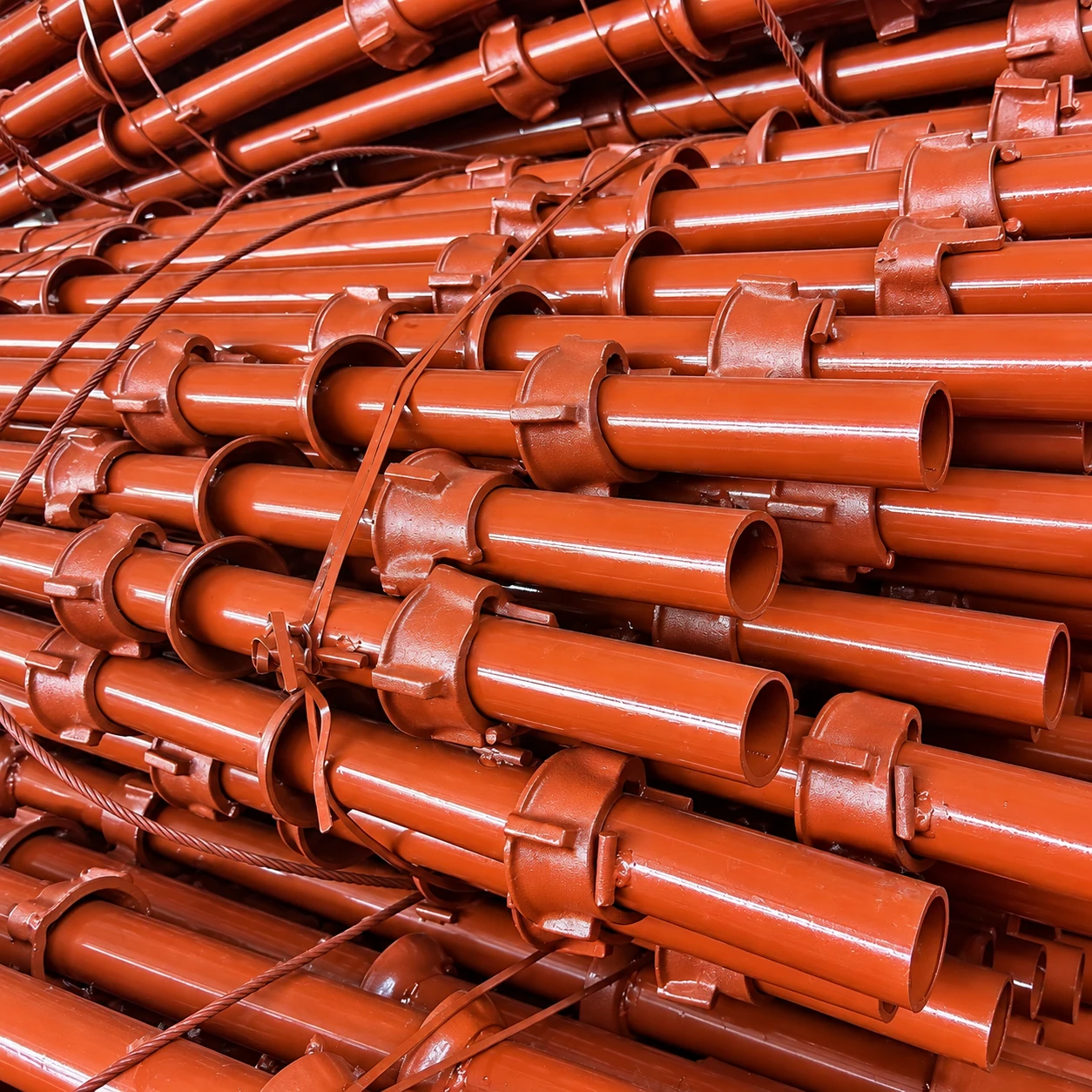

POWDER COATED
Powder-coated finish
Colors and coating specifications can be selected for the intended market or project.
01 / 08 — Cuplock product explainer
CUPLOCK SCAFFOLDING SYSTEMS
Nuohong Cuplock
Scaffolding Systems
& Components
NUOHONG FACTORY CATALOGHebei manufacturing · Yiwu export office
A coordinated range of standards, ledgers, transoms and cup connections for modular access and formwork support. Order a complete set or select the components your project needs.
Tube diameter / wall48.3 mm / 3.2 mm
MaterialQ235 / 45# steel
Finish optionsGalvanized / Powder coated
Order quantityFrom 100 sets · inquire for components
Explore a component 03 specification groups
Nuohong Factory · Manufactured in Hebei, China. Final configuration, quantity and shipment plan are arranged for each order.
01
Complete systems or partsBuild the bill of materials you need
02
Two finish optionsGalvanized or powder coated
03
Project supplyOEM production and export coordination
01 / TECHNICAL OVERVIEW
Choose the right components.
Compare Cuplock standards, ledgers and intermediate transoms by length, tube size and unit weight.
| Component | Length | Tube diameter | Wall thickness | Nominal weight |
|---|
Dimensions shown for the listed components. Discuss the intended layout, loading and finish with our team when planning a project order.
02 / PRODUCT DESCRIPTION
A secure connection
with fewer loose parts.
Cuplock scaffolding connects horizontal ledgers to vertical standards through a welded lower cup and a sliding upper cup. The cup joint creates a repeatable connection point for access structures, support frames and project-specific layouts.
Nuohong supplies complete systems and individual components in galvanized or powder-coated finishes. Our team can review drawings, dimensions and quantities before production, then coordinate packing and export delivery.
- Vertical standards, ledgers and intermediate transoms for modular bay planning.
- Cup-lock joint designed for quick assembly and straightforward site handling.
- OEM dimensions, finishes and accessories available for project requirements.
03 / SURFACE FINISHES
Specify the finish for your market.
View the product in powder-coated and galvanized finishes.

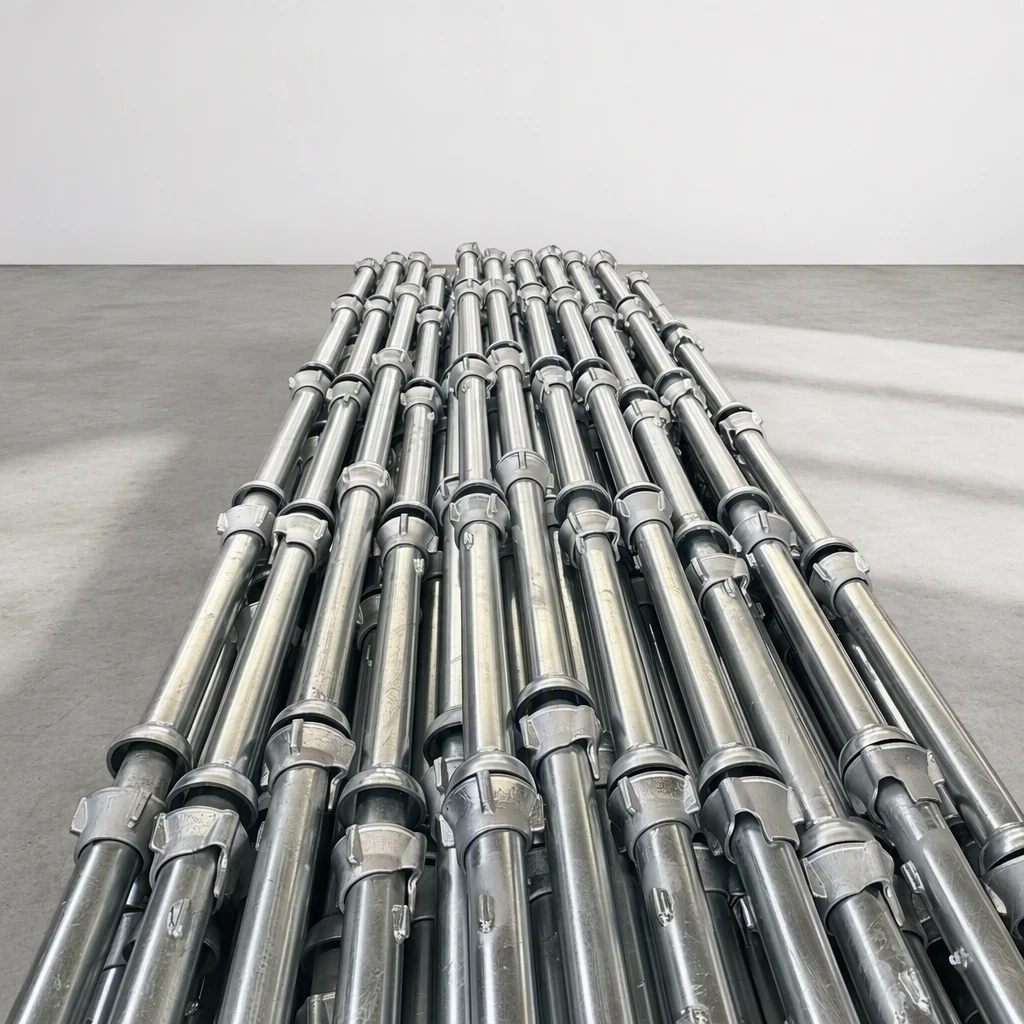

GALVANIZED
Galvanized finish
Grouped standards show the metallic finish and cup placement.
04 / SYSTEM COMPONENTS
See how the system connects.
Start with the full system image, then inspect the core elements separately.

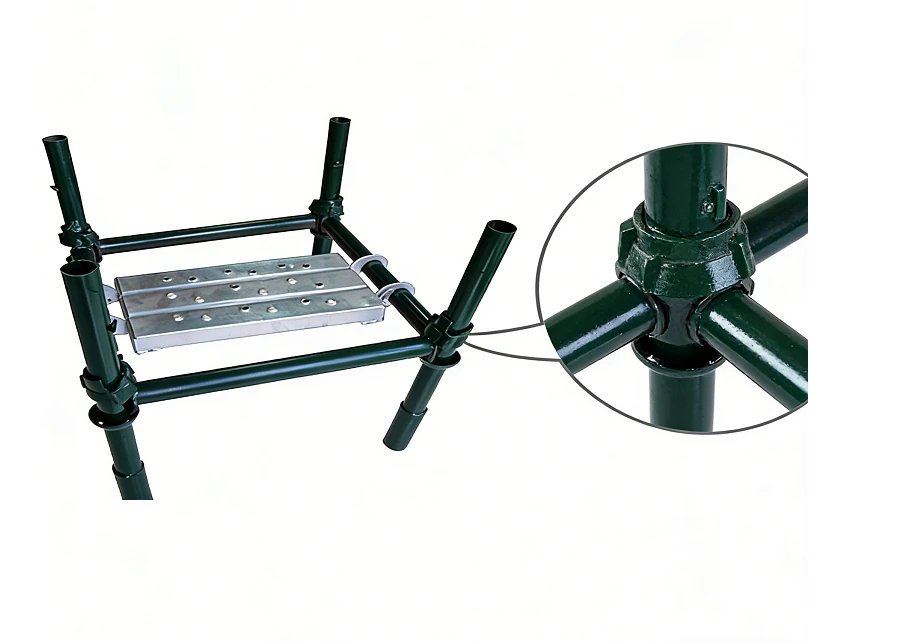

THE COMPLETE SYSTEM
Standards, ledgers
and cup joints.
The system view shows a working platform and enlarged cup connection together. The following views isolate individual parts so buyers can identify the pieces used in an assembly.

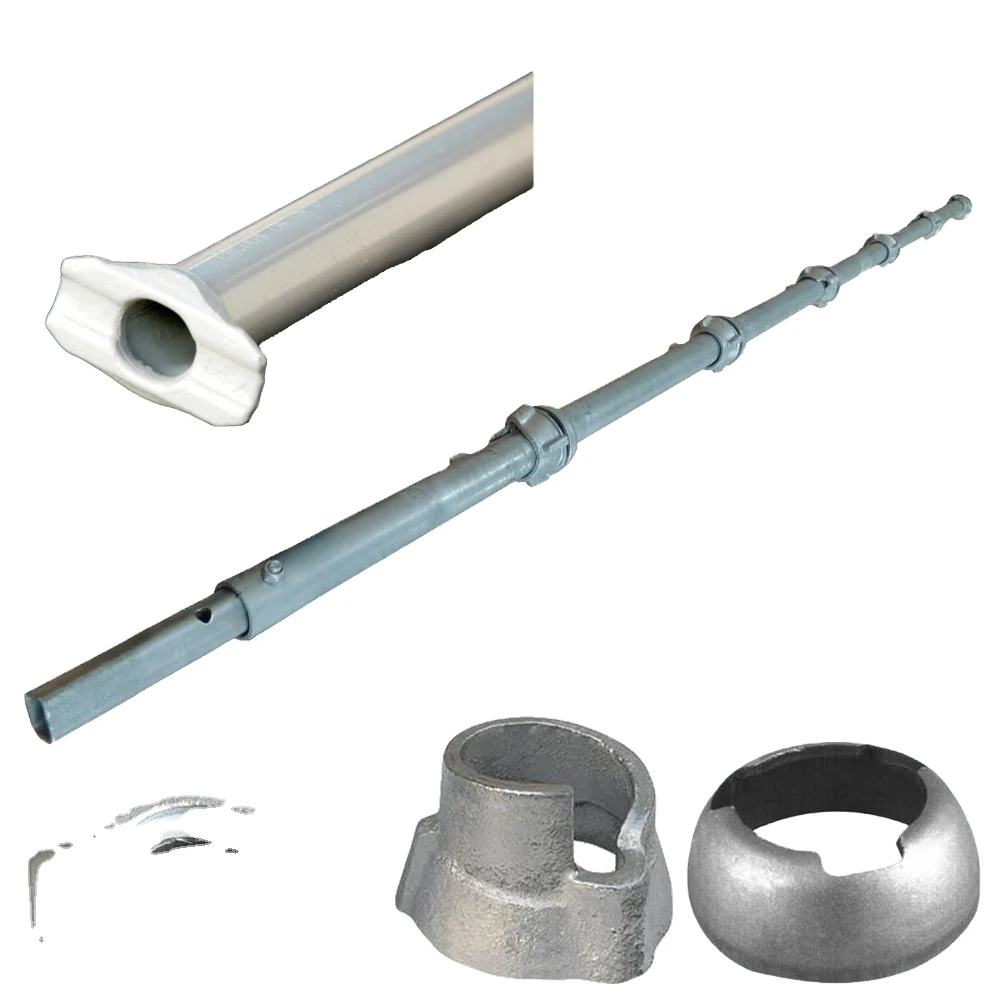

01 / UPRIGHT
Vertical Standard
The upright member carries cup connection points at regular intervals.

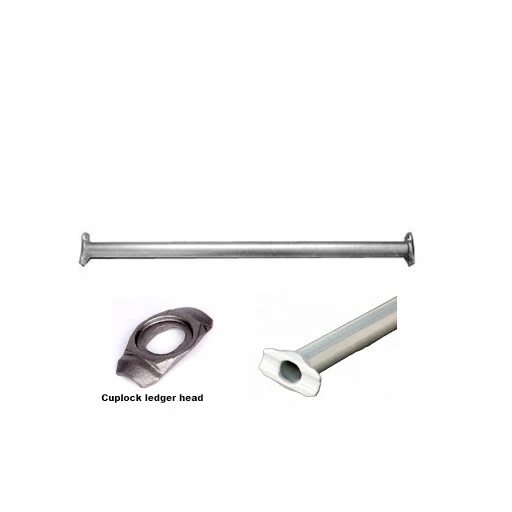

02 / HORIZONTAL
Ledger
The horizontal member links standards and defines the scaffold bay.

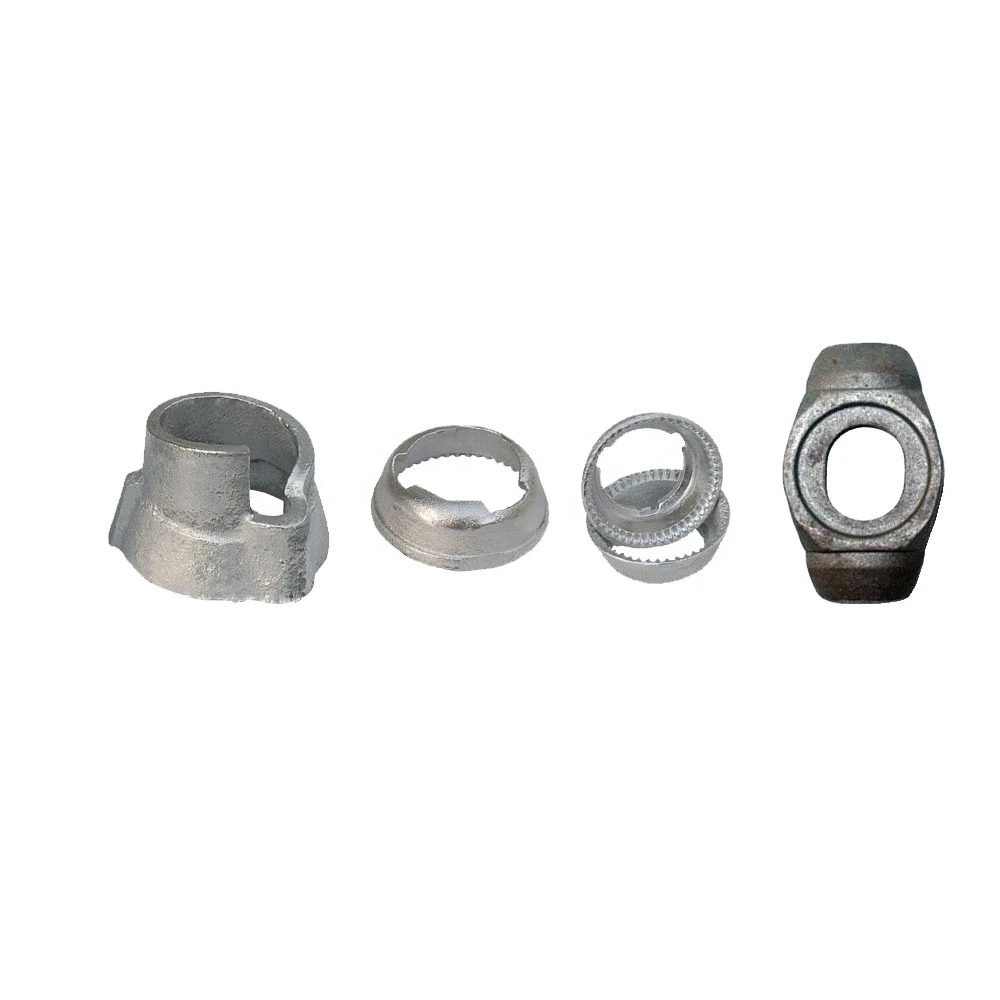

03 / CONNECTION
Cup-Lock Joint
Upper and lower cups secure the ledger end to the standard.

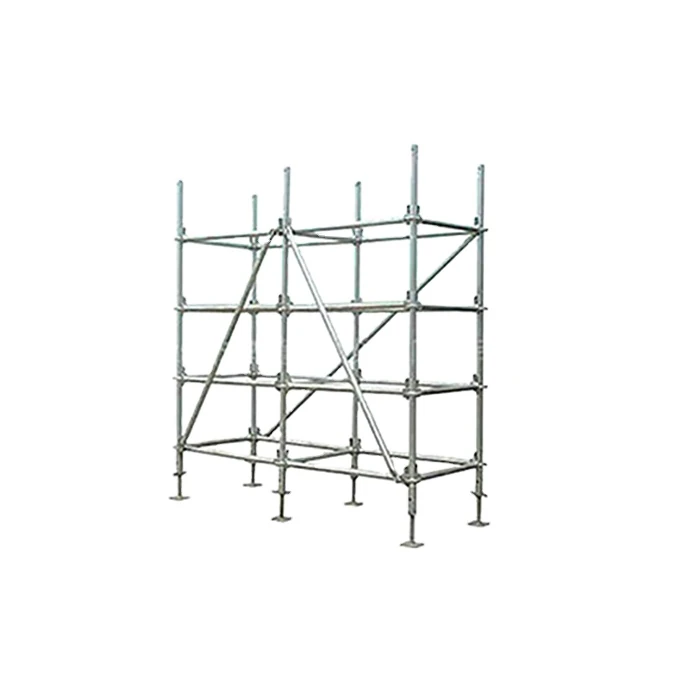

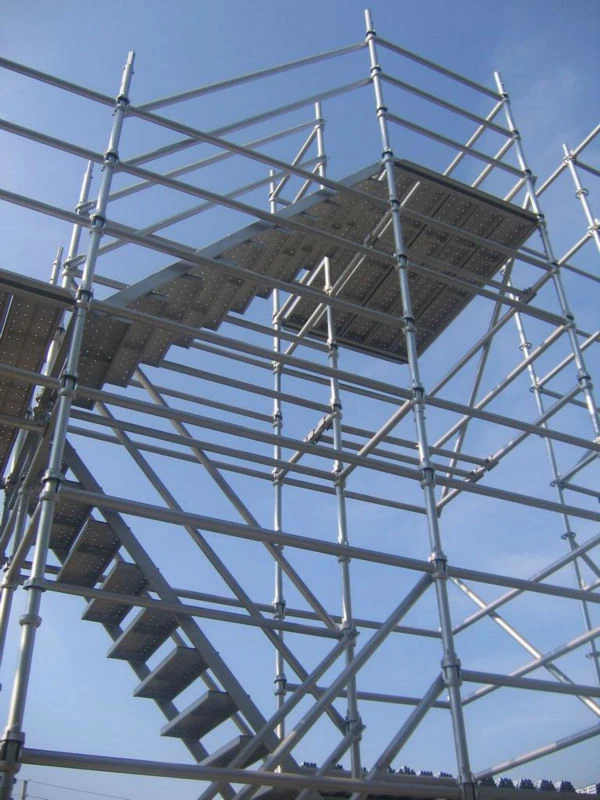

04 / ASSEMBLY
Complete System
Combined components form a modular access or support structure.
05 / PRODUCT VIDEOS
See the product and the process.
Two Nuohong videos show the Cuplock system and its manufacturing process.
MAIN PRODUCT VIDEO
Cuplock system explained
English walkthrough of the system, components and applications.
MANUFACTURING VIDEO
Cuplock manufacturing
A closer look at the production process behind the components.
06 / PRODUCTION TO DELIVERY
Built for project supply.

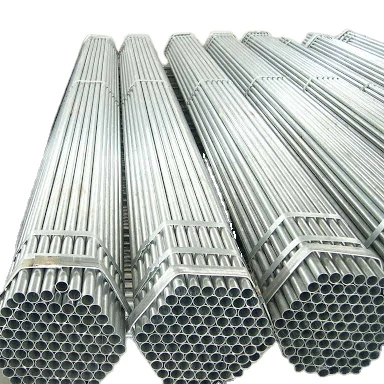

Nuohong supports wholesale and project buyers with component selection, specification review, custom manufacturing, surface finish, packing and export coordination. Raw steel tubes, organized stacking and container loading form part of this supply process.
01Define your scaffold layout and component quantities.
02Confirm finish, dimensions and any OEM requirements.
03Plan packing by weight or piece count and arrange shipment via Tianjin or a customer-designated port.
Plan your order ↗PACKING & CONTAINER LOADING
Organized for wholesale shipment.
Each saved packing and loading view is shown separately at higher display resolution. Select any image to inspect the arrangement in detail.

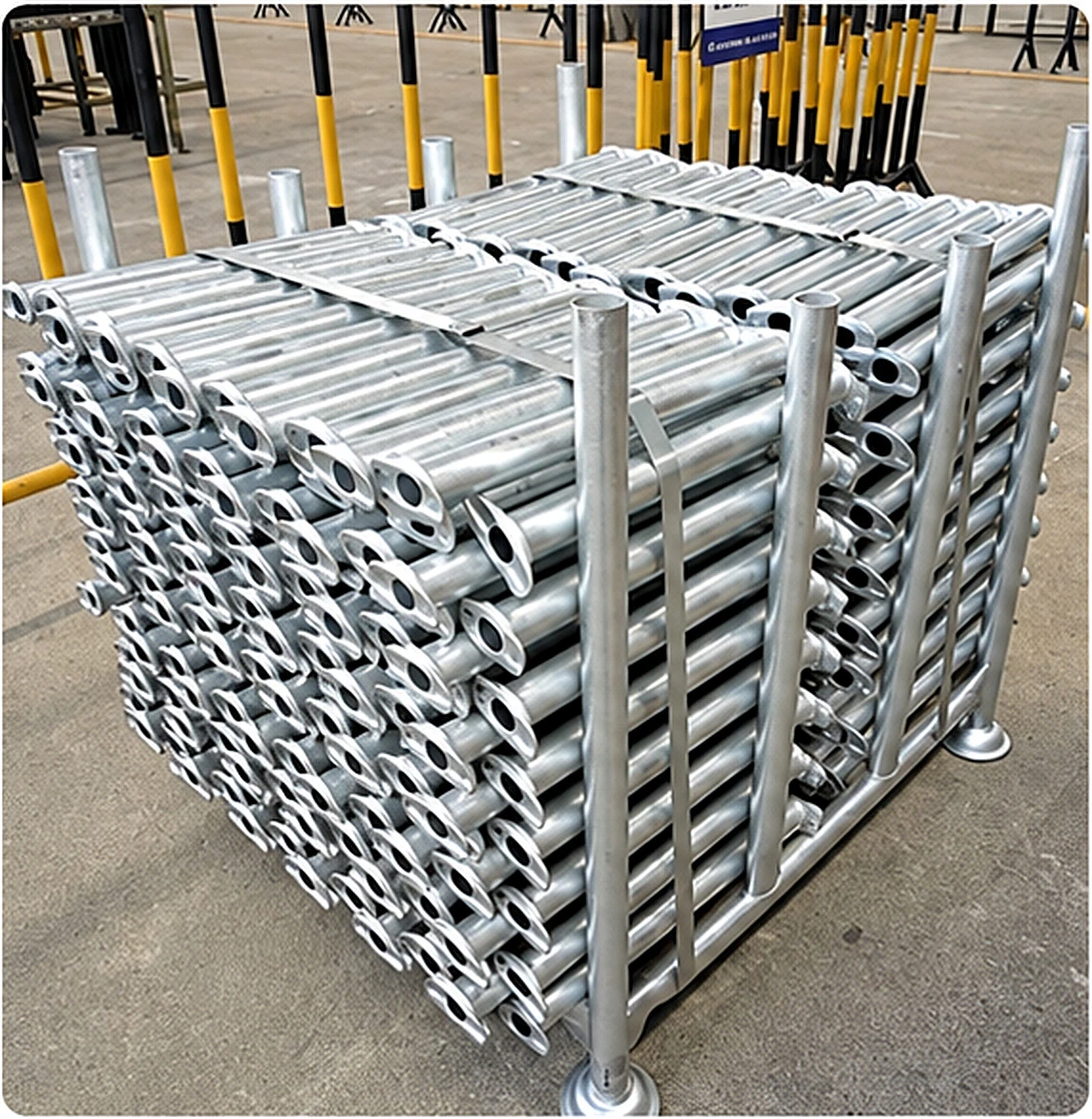

01 / BUNDLINGGalvanized standards in transport racks

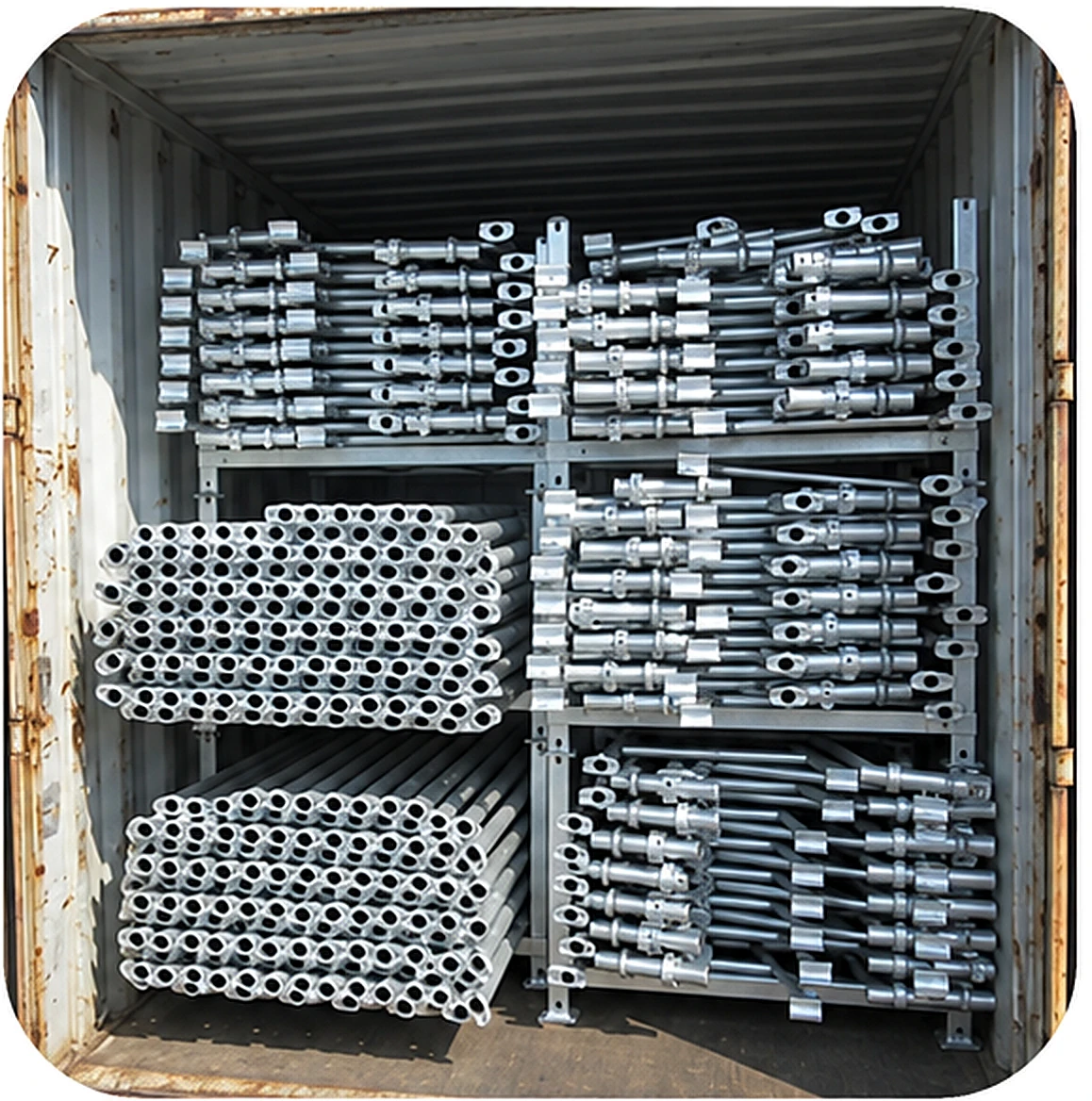

02 / CONTAINERSeparated component groups for loading

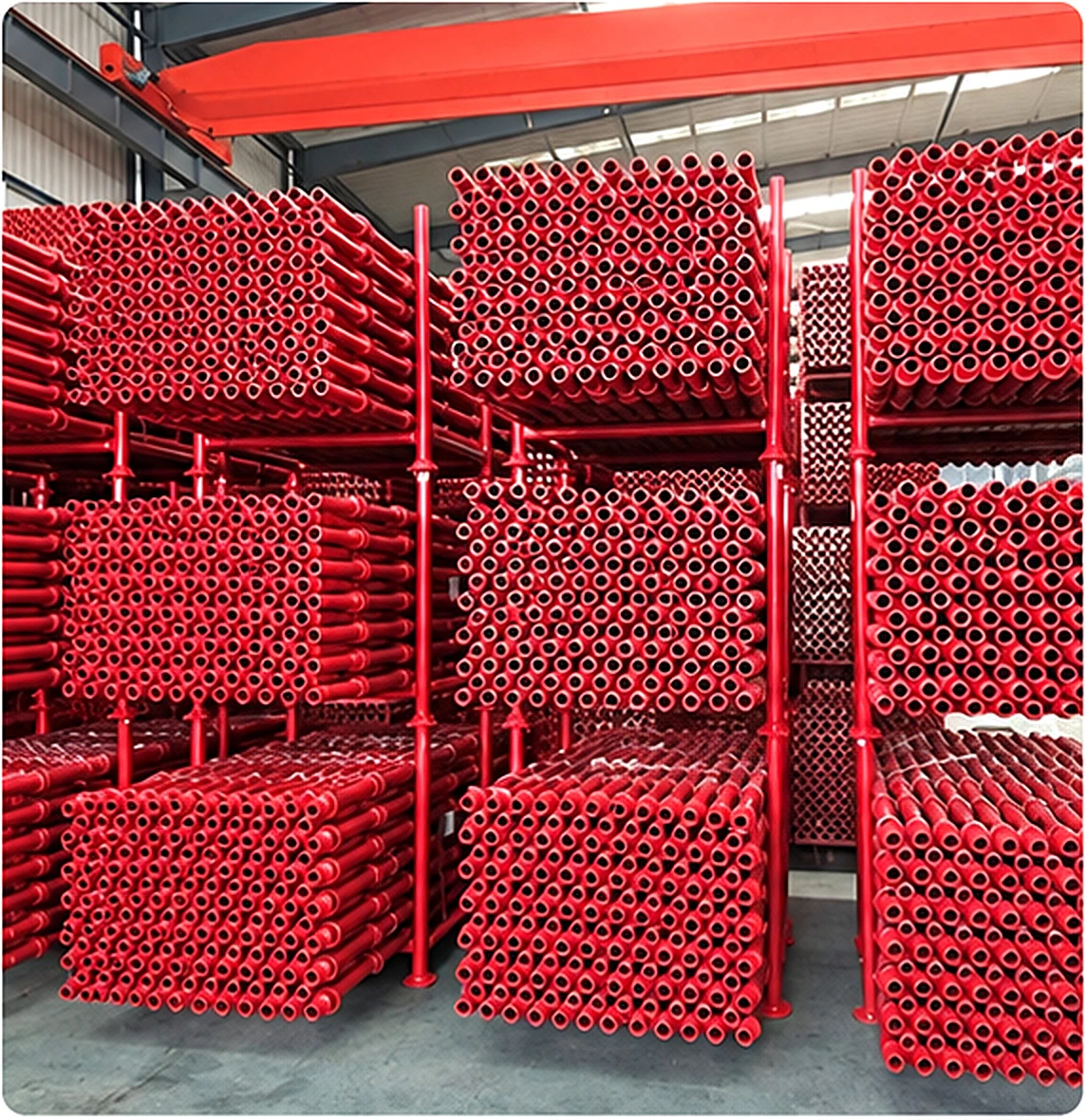

03 / STORAGEPowder-coated components stacked by bundle

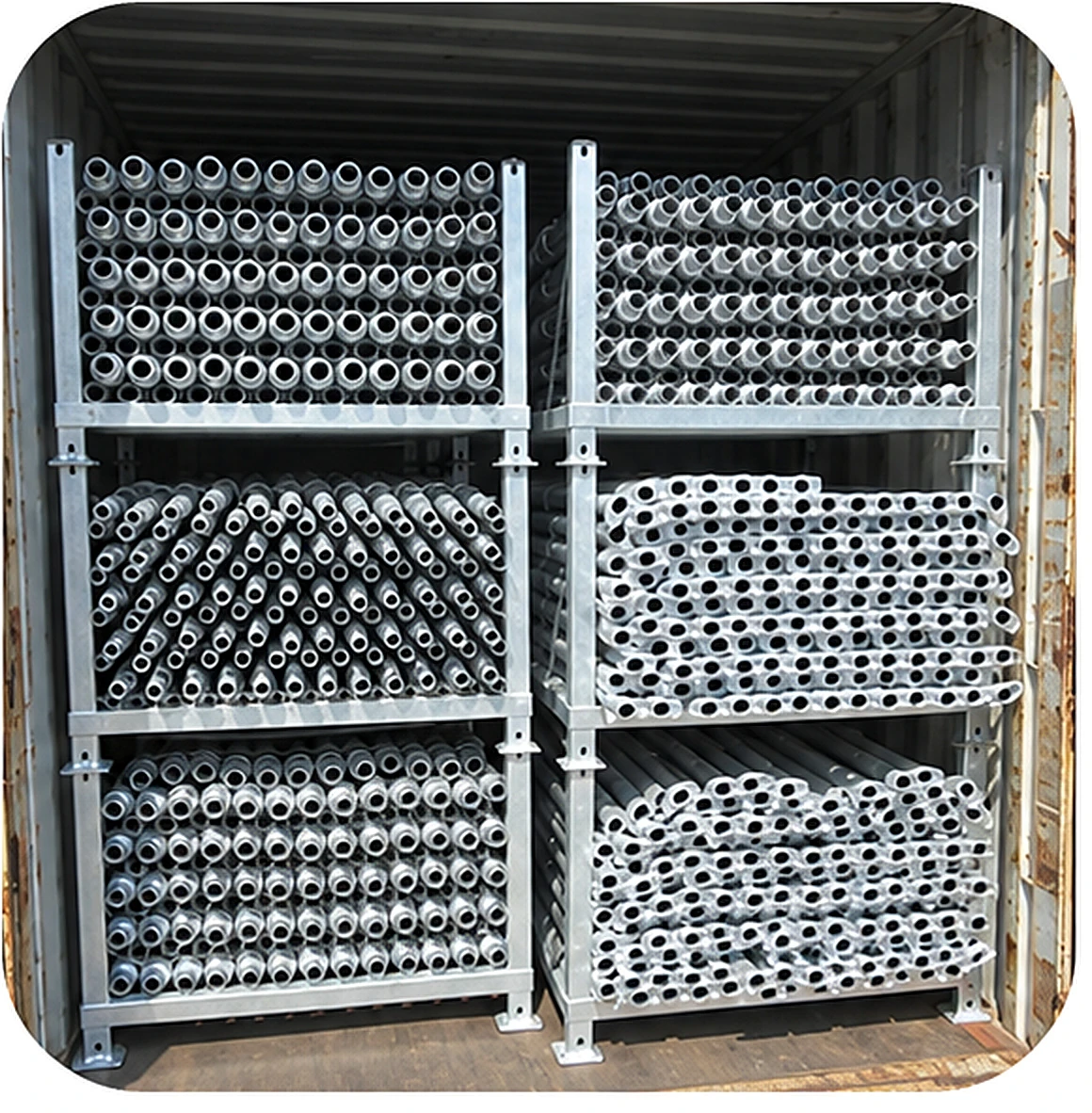

04 / LOAD SECURINGStandards held in loading frames

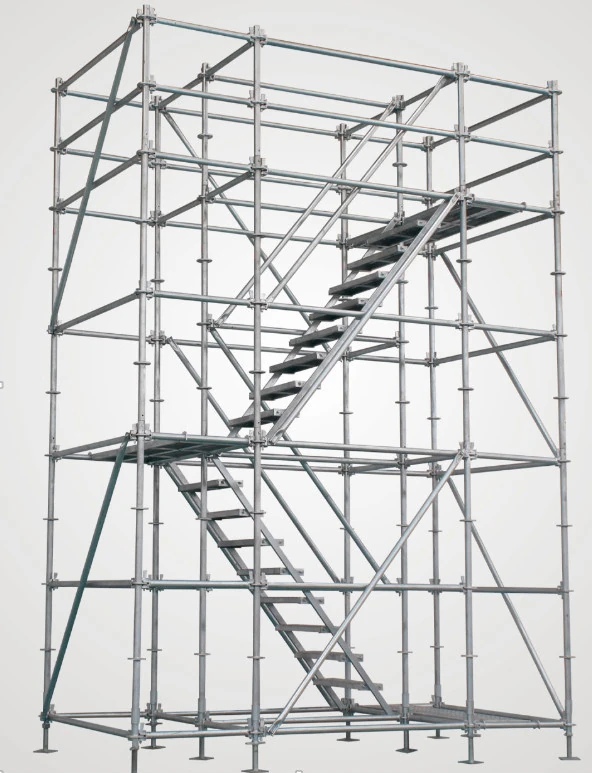

MORE SCAFFOLDINGRinglock scaffolding

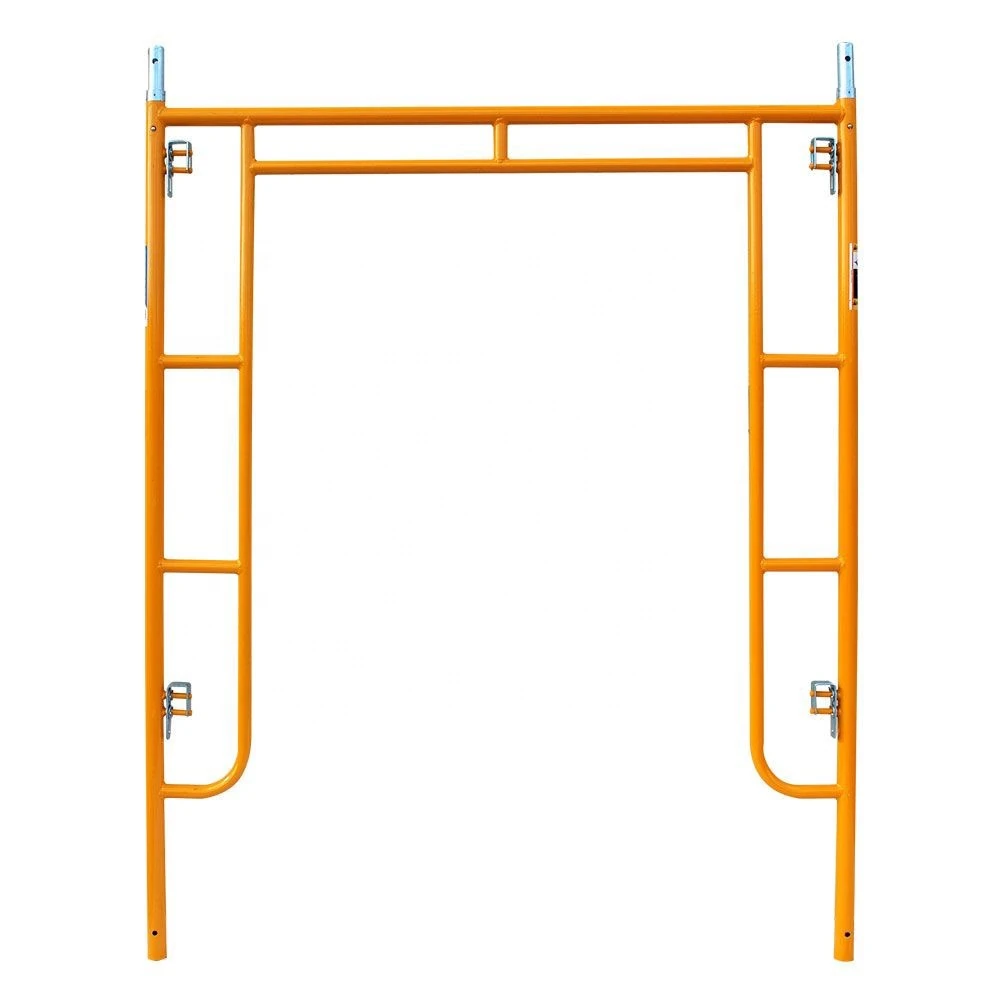

MORE SCAFFOLDINGFrame scaffolding
07 / CERTIFICATES & TEST REPORTS
Nuohong Factory Test Reports.
Four document types are identified and presented for quick reference.

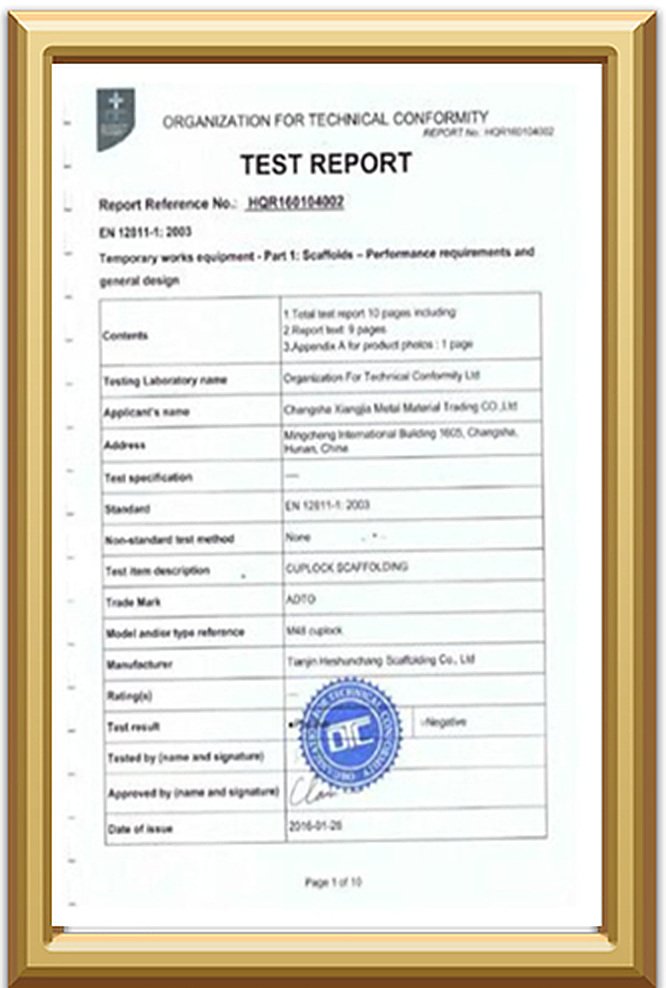

PERFORMANCE TEST REPORTEN 12811-1:2003 Test Report

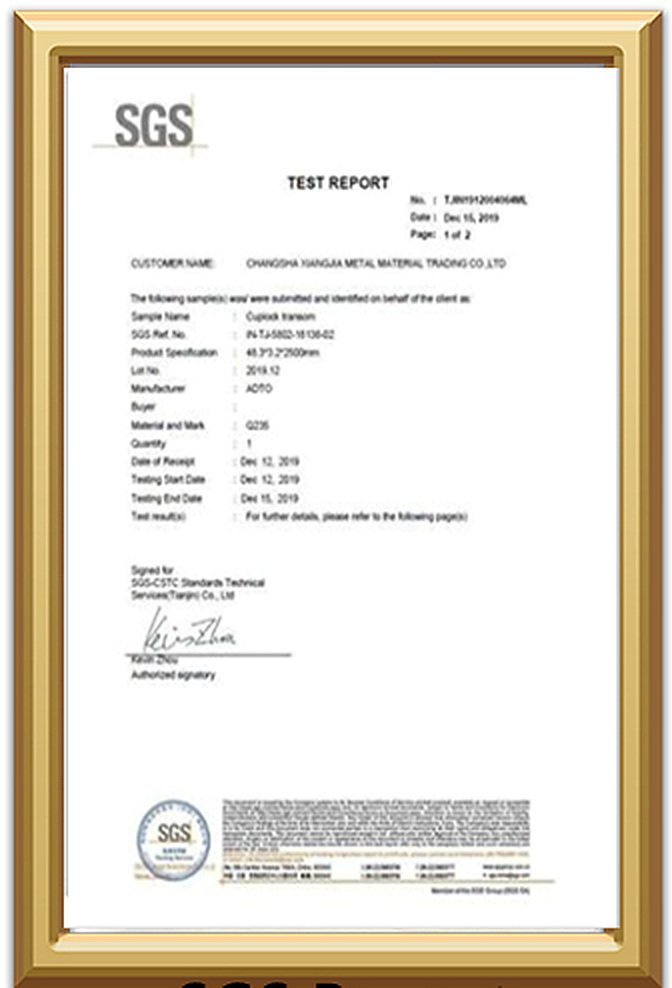

LABORATORY TEST REPORTSGS Test Report

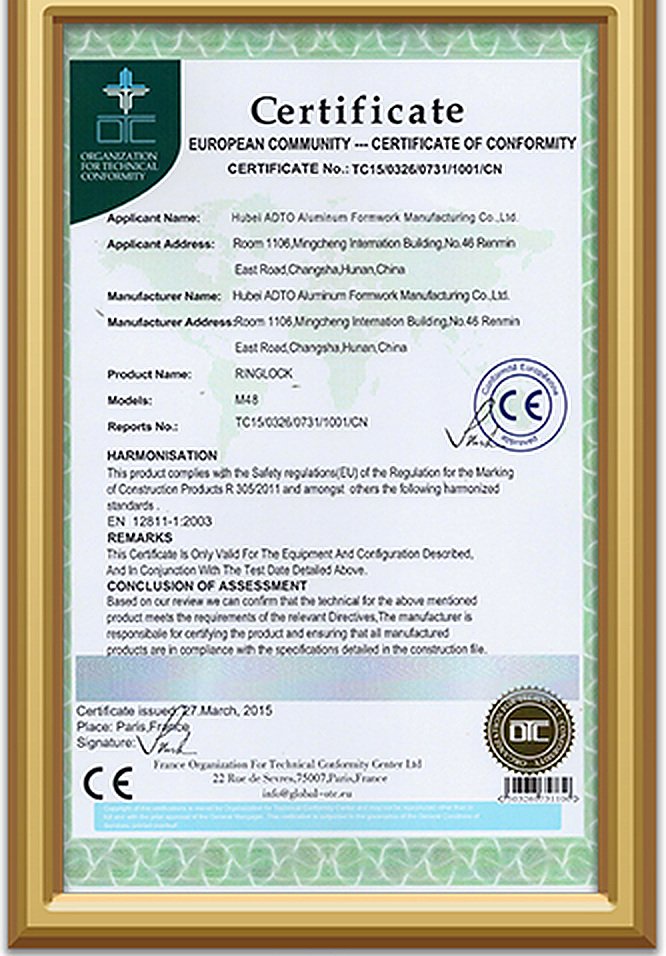

CONFORMITY CERTIFICATECE Certificate of Conformity

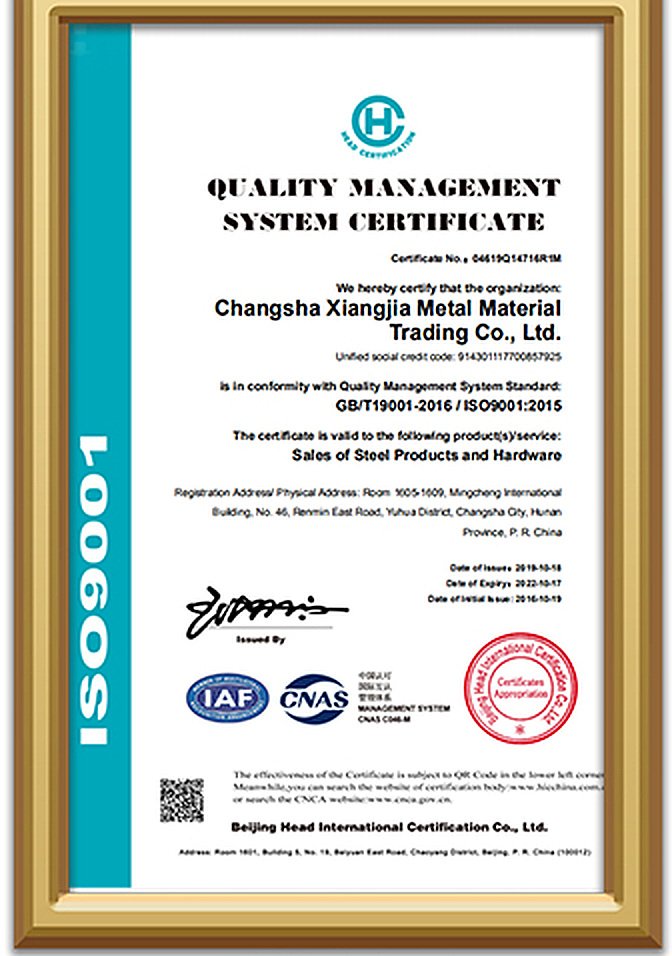

QUALITY MANAGEMENT SYSTEMISO 9001 Certificate
Report and certificate images are displayed as static document references. Image enlargement is disabled in this section.
NUOHONG / FACTORY CATALOG
Manufacturing strength for dependable project supply.
Nuohong Factory manufactures and exports scaffolding systems, adjustable steel props, formwork support and construction accessories. With 25 years of manufacturing experience and 15 years of export experience, we combine production in Hebei with a sales and export office in Yiwu, Zhejiang.
Manufacturing experience25 years
Export experience15 years
Manufacturing baseHebei, China
Sales & export officeYiwu, Zhejiang
Manufacturing & customization
Steel processing, cutting, welding, threading, assembly and finishing. Custom dimensions and specifications can be produced to drawings or samples.
Quality through production
Inspections cover dimensions, welds, surface finish, threaded parts, assembly, packing and loading.
International project supply
Wholesale and full-container orders, specification planning, export documentation and shipment coordination.
NUOHONG / FROM OUR FACTORY
Explore related films ↗See the connection being made.
Watch cuplock standard welding, then inspect the support components specified for your arrangement.
LET'S DEFINE YOUR SYSTEM
Your project.
Our next conversation.
Prepare a concise inquiry with the component range, approximate quantity and destination. The form prepares a draft for WhatsApp or email.
Nuohong Factory
Manufacturing: Hebei, China · Sales & export: Yiwu, Zhejiang
