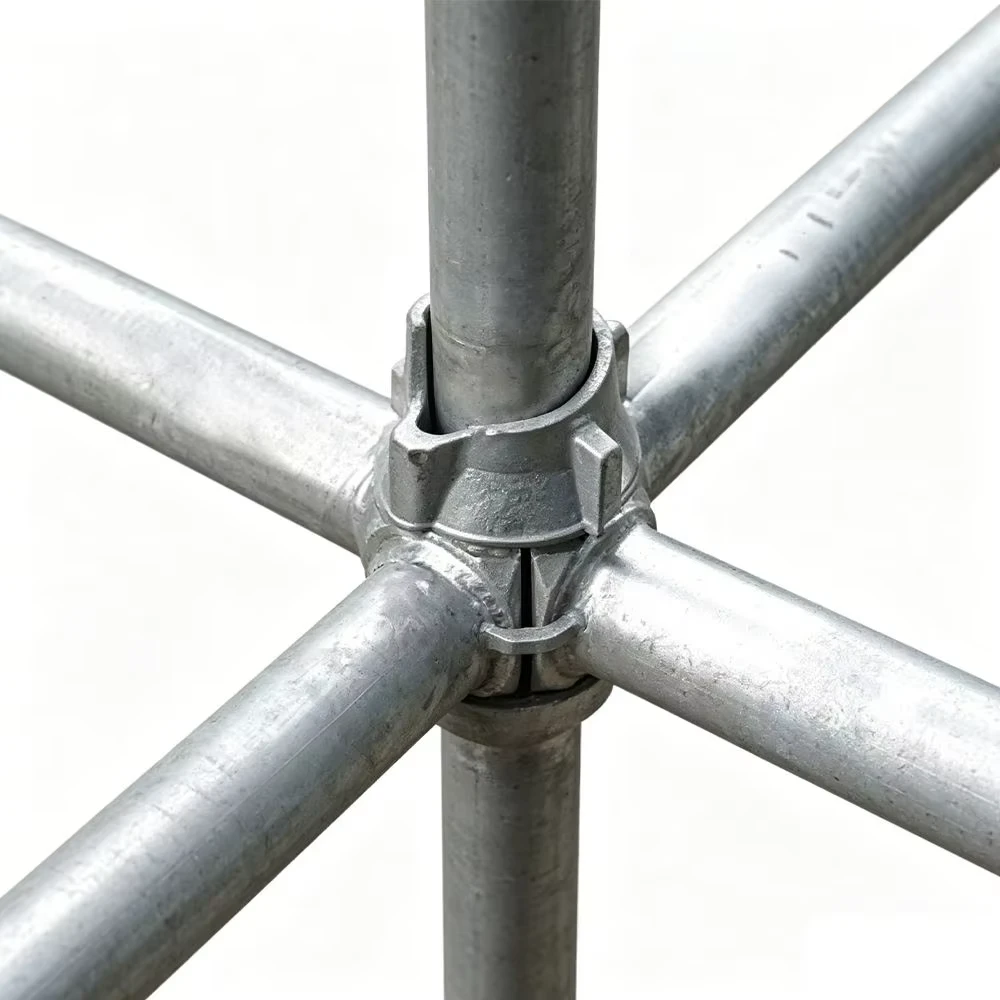

Cup + blade
Ledger blade ends seat in the lower cup. The movable upper cup closes over the blades to secure the node.
View Cuplock range →CUPLOCK + RINGLOCK
Two systems.
The right connection.
Cuplock & Ringlock scaffolding accessories by Nuohong. Explore the joint, choose the matching components and build your project supply list.
CUPLOCK / 碗扣RINGLOCK / 盘扣
01 / SELECT BY CONNECTION
Start with the system.
Each joint has its own mating geometry. Choose the cup-and-blade family or the rosette-and-wedge family before selecting a replacement part.
Rosette + wedge
Ledger and brace heads engage the rosette. Matching wedges lock the connection at the selected positions.
View Ringlock range →Match the complete joint to the system drawing. Cuplock and Ringlock connection parts are not interchangeable.
02 / CUPLOCK ACCESSORIES
One cup joint.
A coordinated set of parts.
Specify upper and lower cups, ledger blade ends and the corresponding standard. Choose the surface finish to suit the order.
Swipe to explore · tap to enlarge
Galvanized cup joint
Upper cup, lower cup and blade ends shown together.

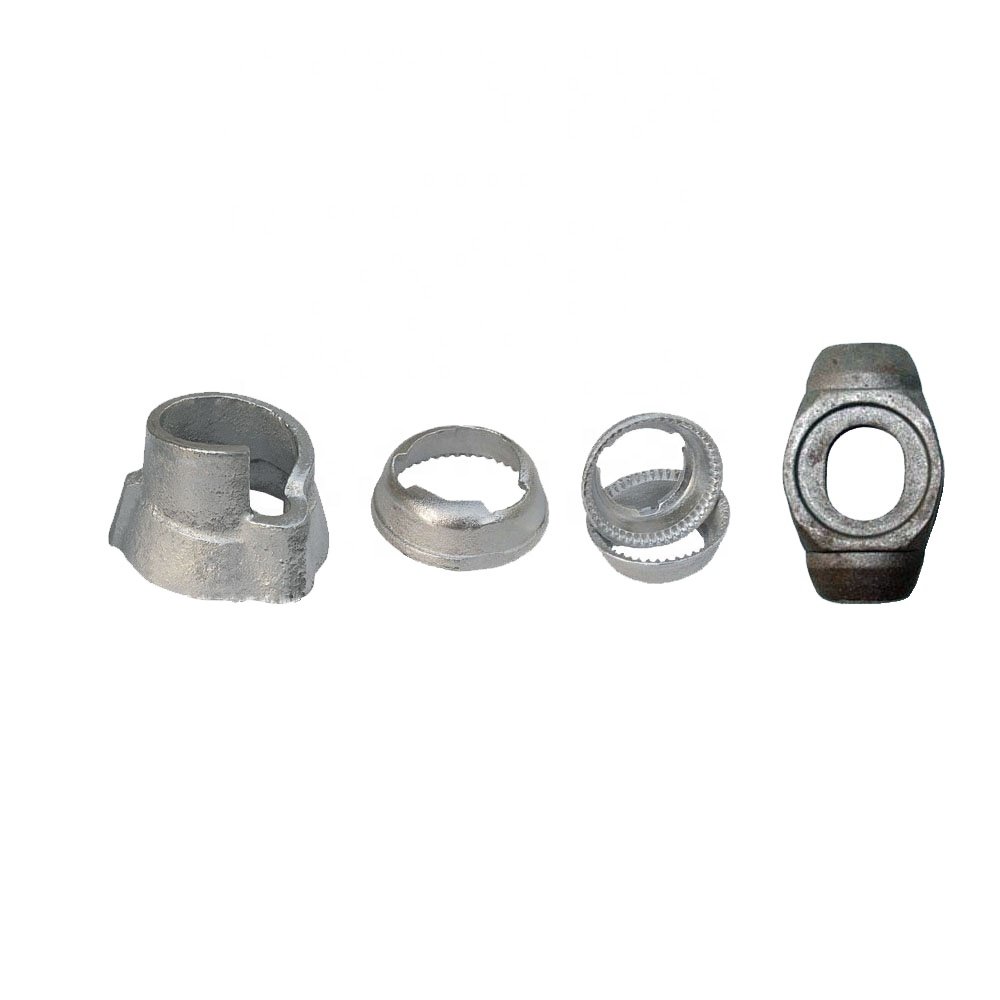

Cup component profiles
Match the cup seat, upper-cup profile and mating blade ends.

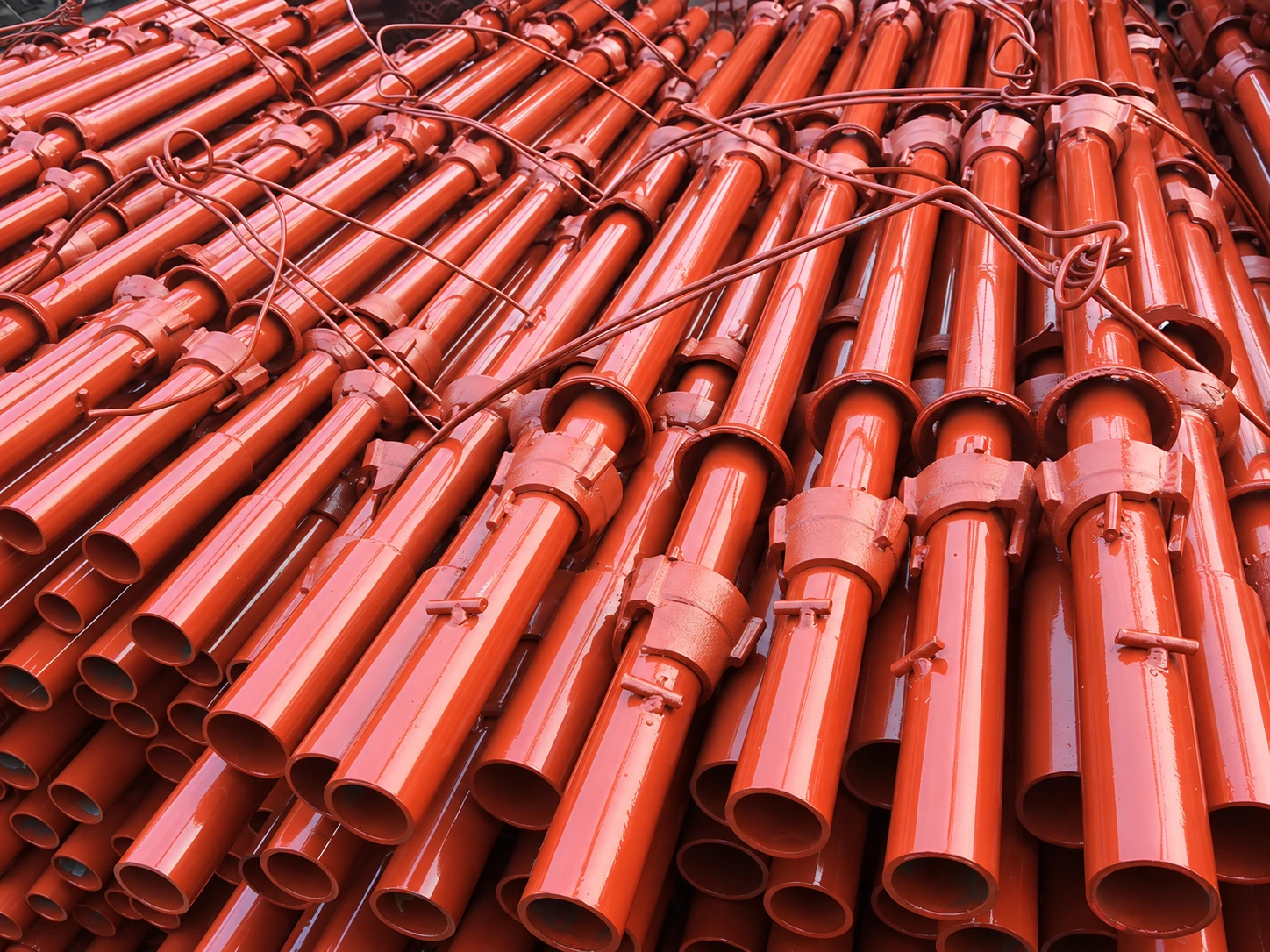

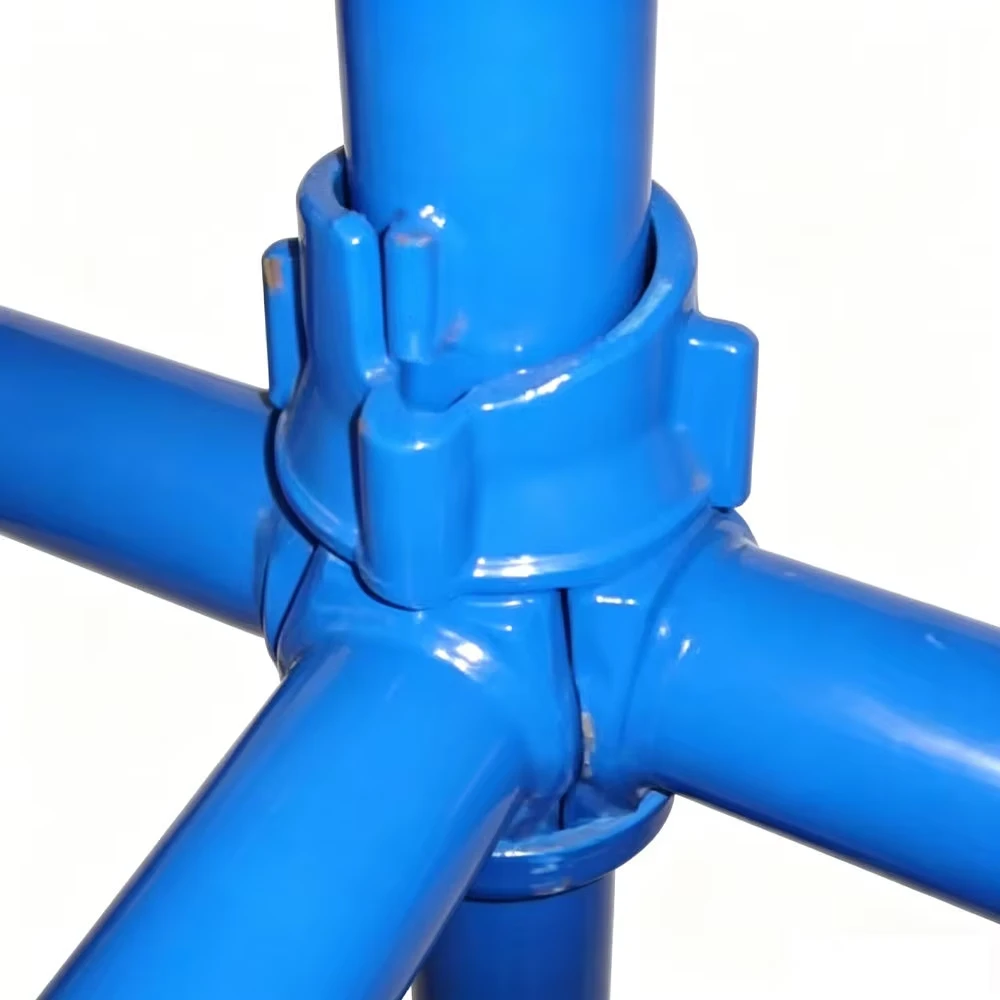

Blue coated finish
The same connection family with a coated surface.

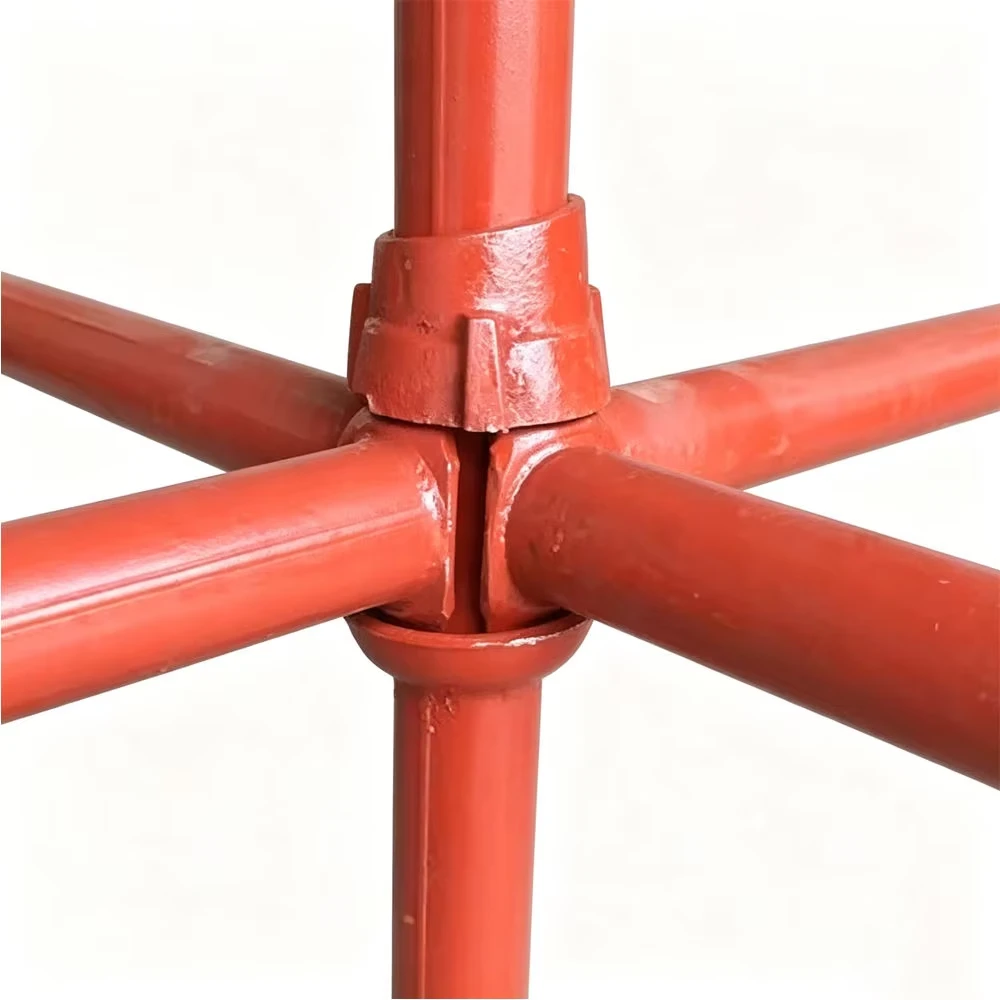

Red coated finish
Confirm colour and coating requirements with the order.

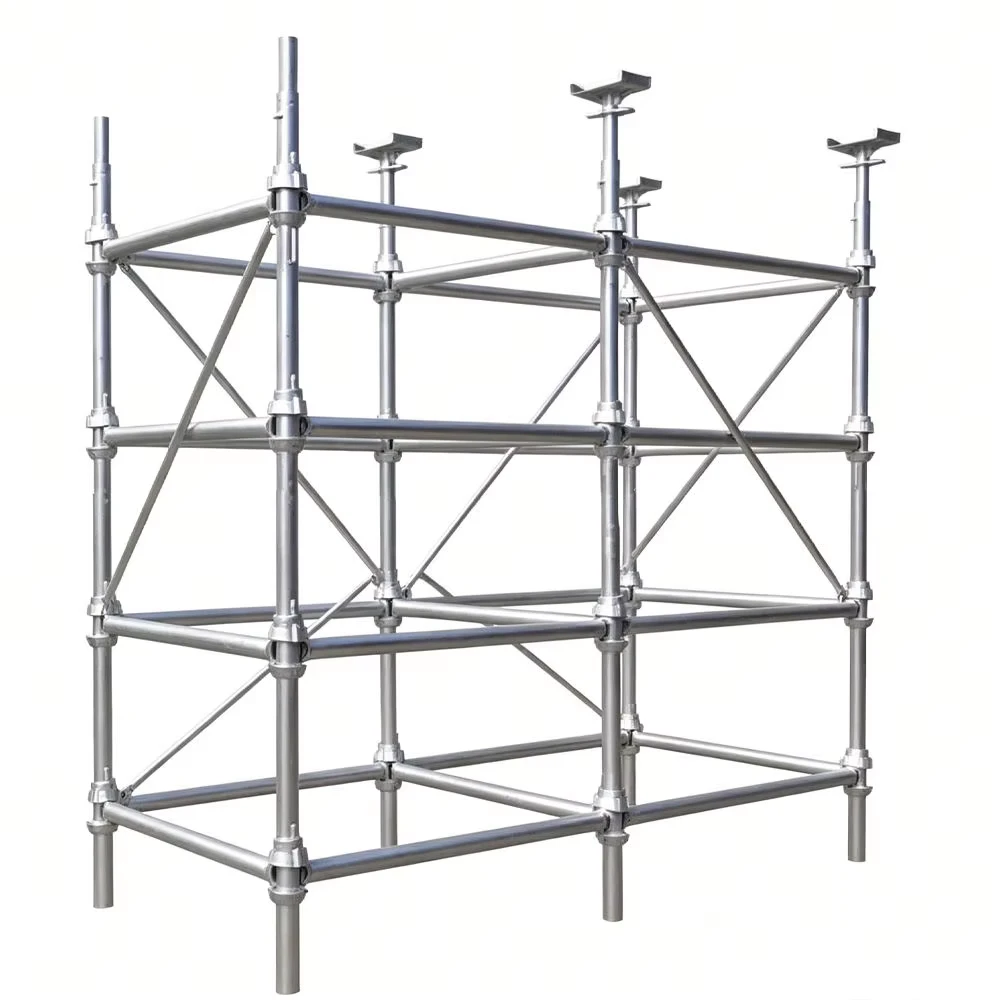

System arrangement
Standards, horizontal members and adjustable heads in context.
PRODUCT FILM

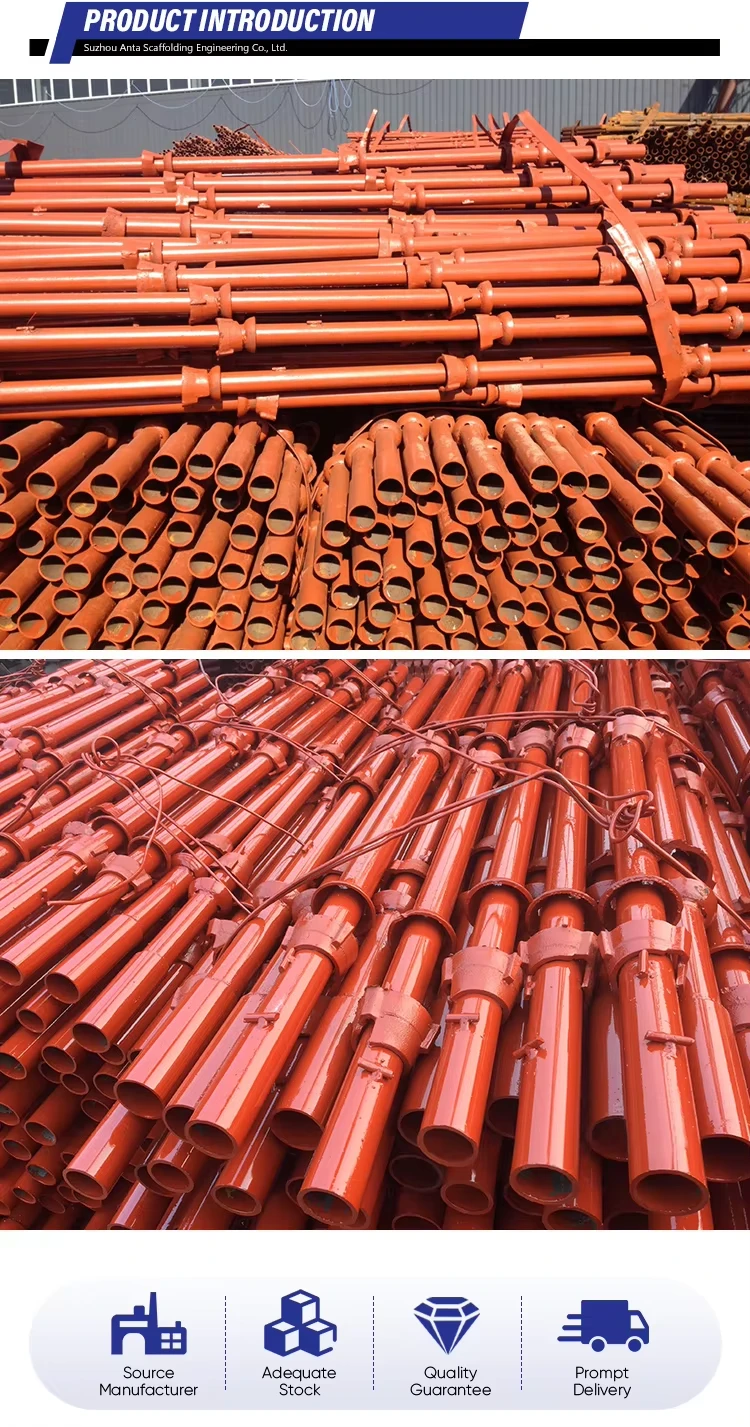

Cuplock production & stock
Welding, finished cup-joint standards and bundled stock. 25-second workshop film.
Open video separately ↗FROM JOINT TO FINISHED MEMBER
Specify the fit.
Then the finish.
The cup profile, blade end and tube section work as one connection. Confirm each detail before choosing galvanized or coated members.
- ConnectionUpper cup, lower cup and blade-end profile
- MemberTube size, length and cup-node layout
- FinishGalvanized or coated, with colour agreed per order
03 / RINGLOCK ACCESSORIES
A node for every
matching connection.
Rosettes, ledger heads, brace heads and locking wedges form the connection family. Standards, decks and access parts complete the system.
Swipe to explore · tap to enlarge

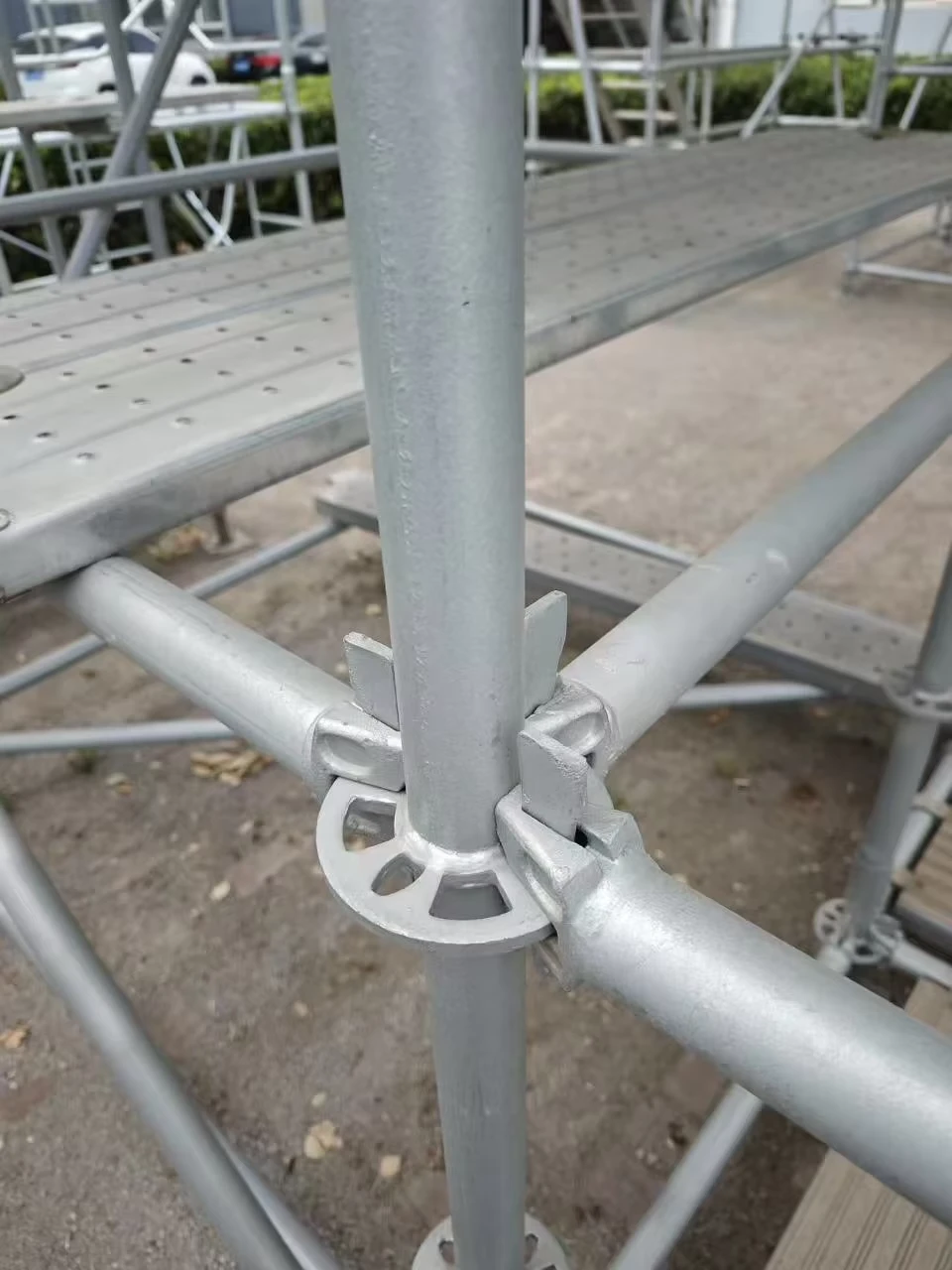

Rosette connection
Ledger heads engage the rosette on the standard.

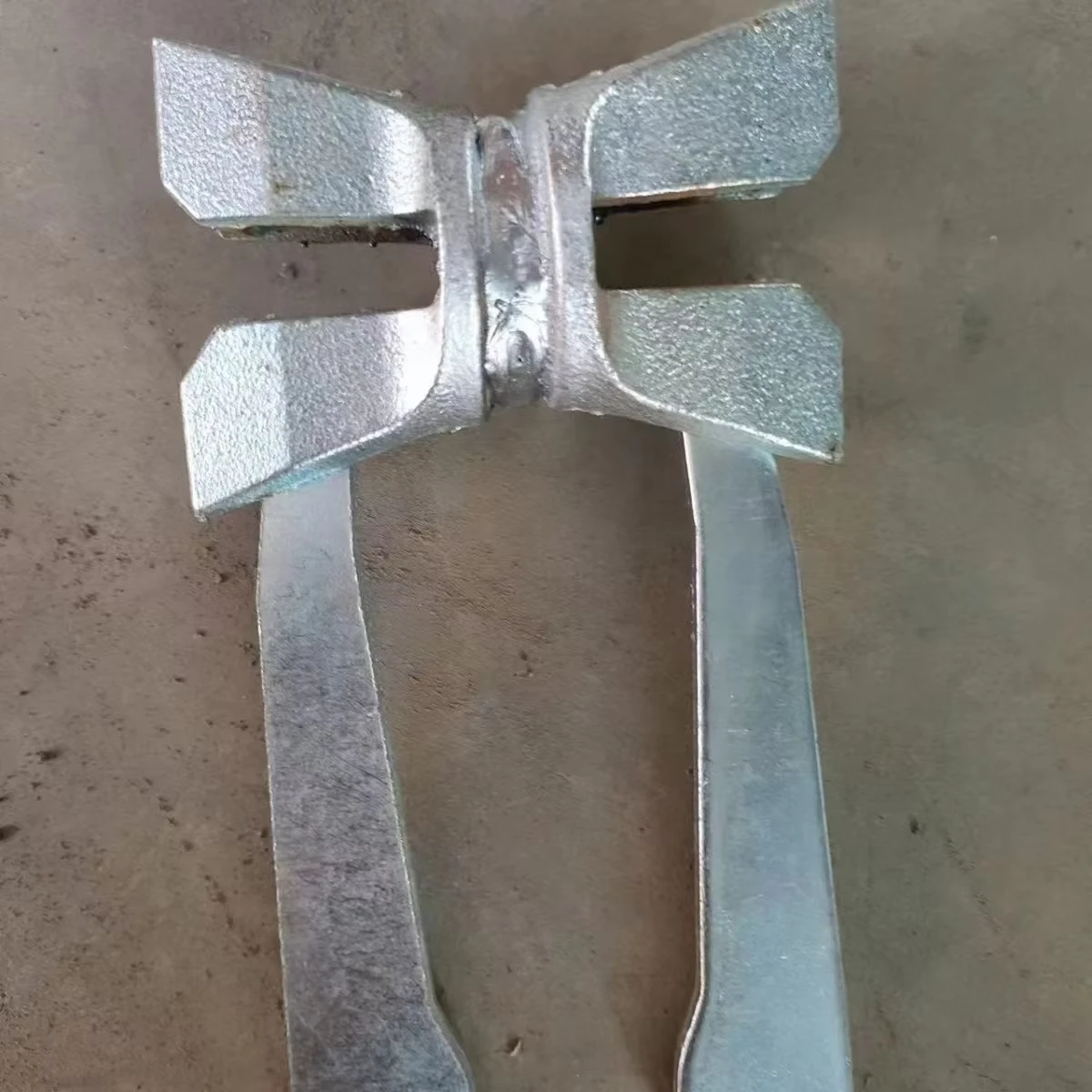

Head & wedge detail
Check head profile, wedge fit and mating tube geometry.

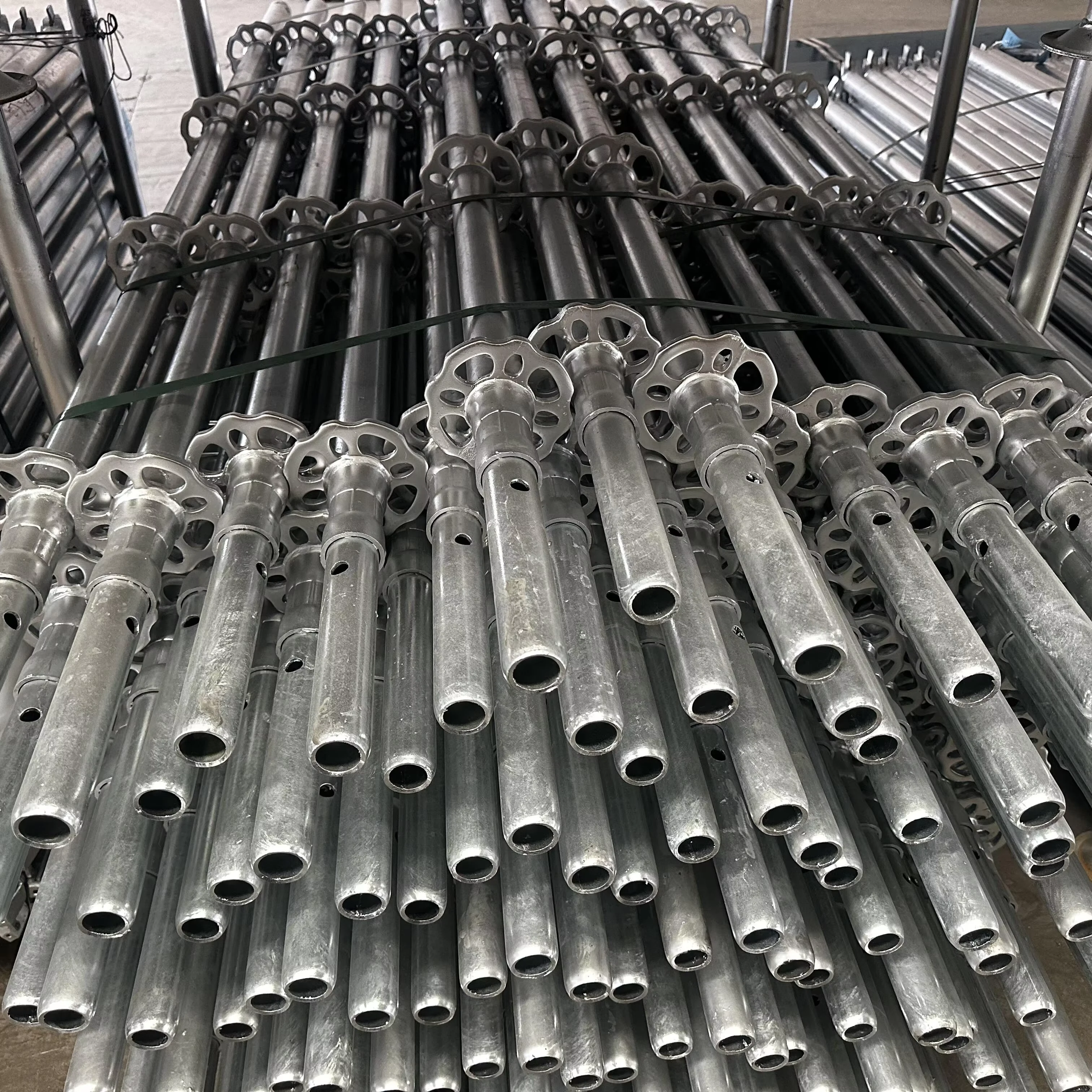

Standards in stock
Rosette positions and end connections are visible before packing.

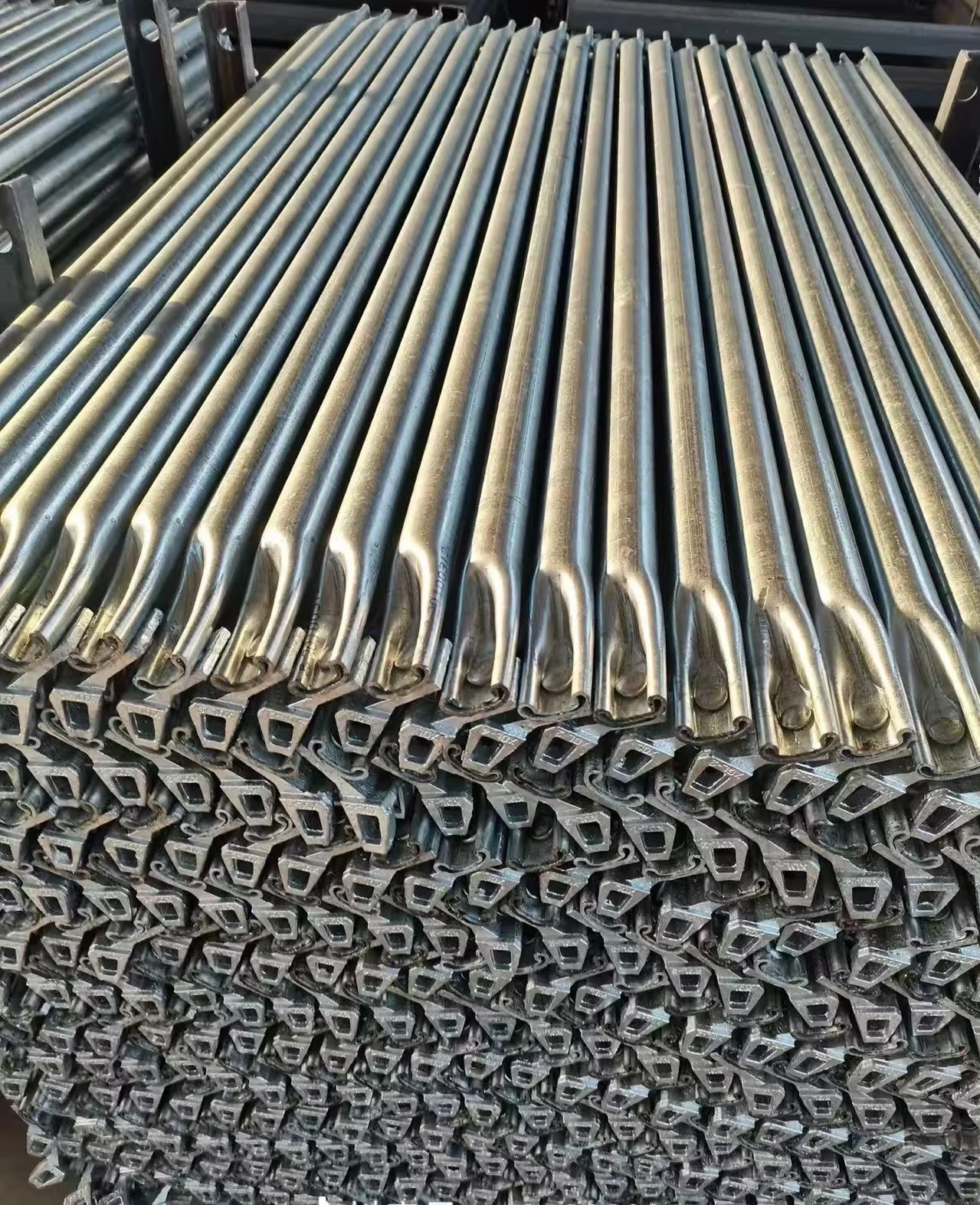

Ledger bundles
Matched heads and organized bundle quantities.

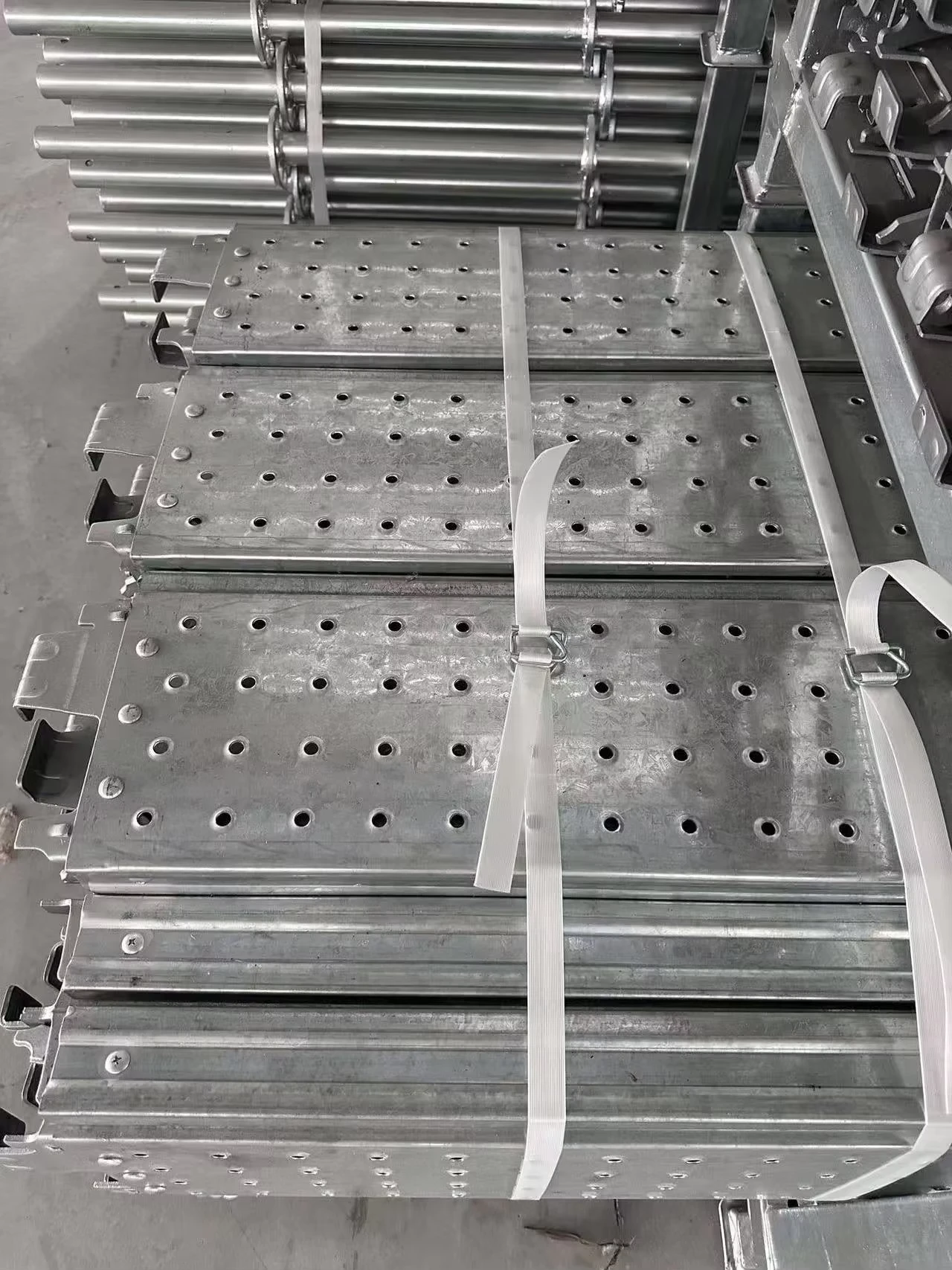

Decks & access parts
Specify deck hooks and platform widths with the bay layout.

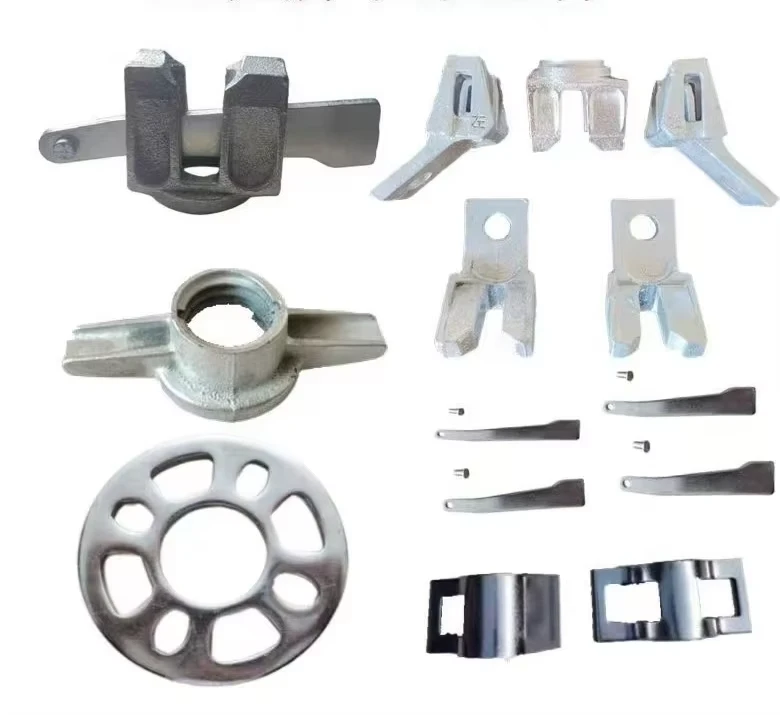

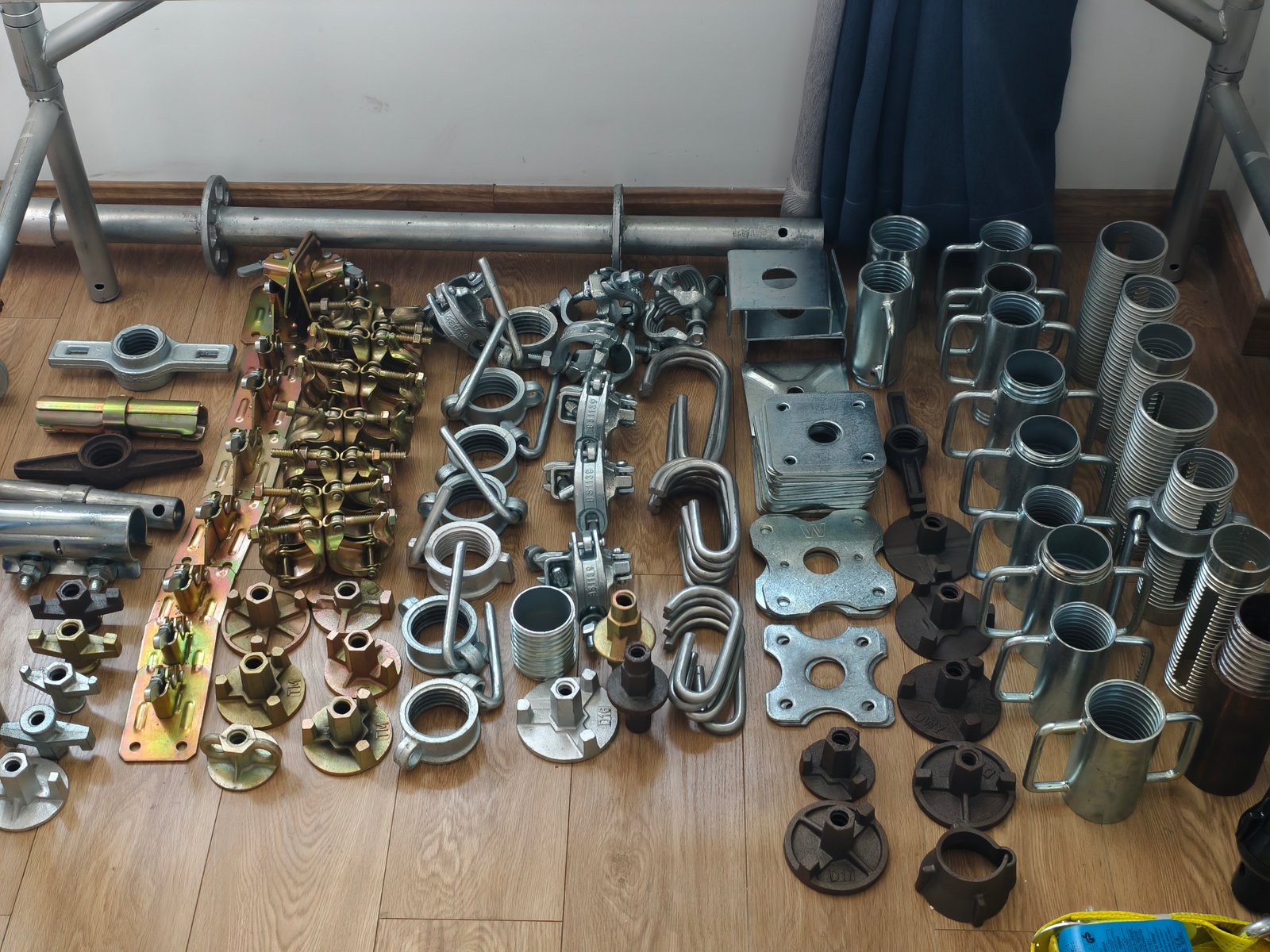

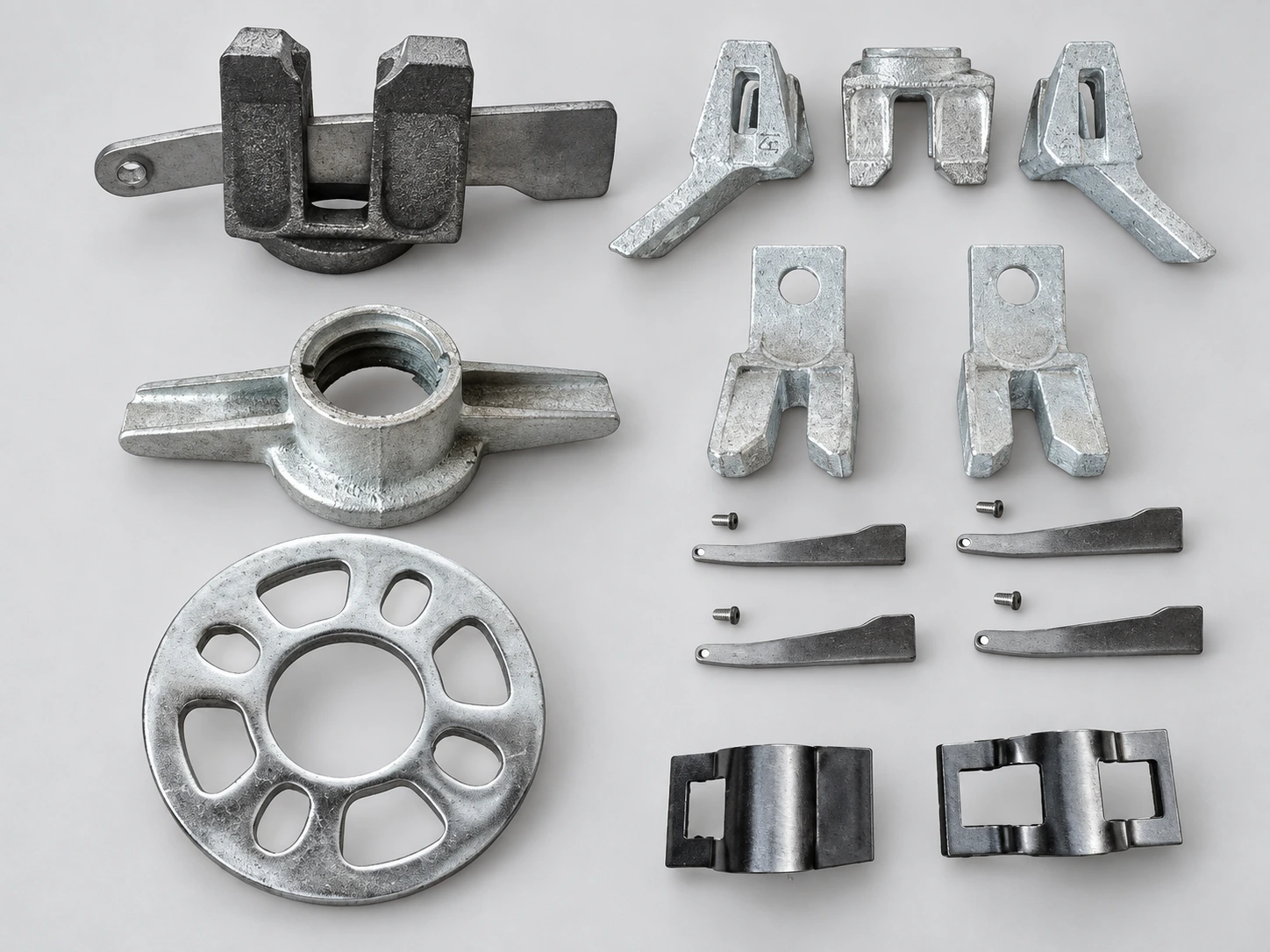

Enhanced from the supplied fitting assortment. Match individual profiles to the selected system.
SMALL PARTS / PRECISE MATCHING
The details define the fit.
Select the rosette, ledger or brace head and wedge as a matched connection. Adjustment nuts and support fittings are specified separately with their mating thread and tube.
Ask about a specific part →PRODUCT FILM
Ringlock component details
Close-up views of standards, head fittings and joint engagement. 45-second product film.
Open video separately ↗PRODUCT FILM
Ringlock stock & assembled system
15-second tour of bundled components, finished heads and an assembled bay.
Open video separately ↗SYSTEM IN CONTEXT
See how the parts come together.
Swipe to explore · tap to enlarge

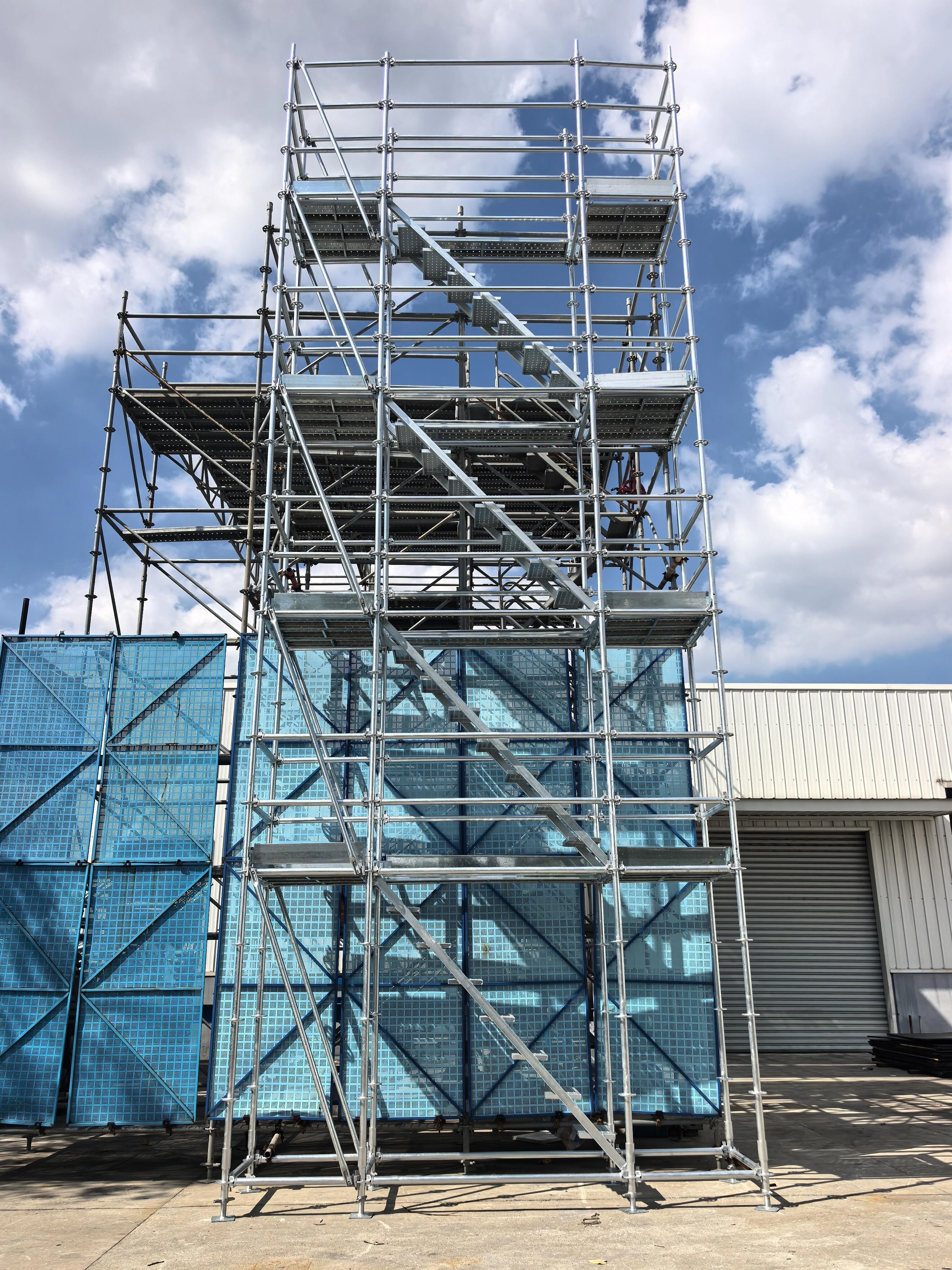

Ringlock access tower
Standards, ledgers, braces and deck levels assembled in context.

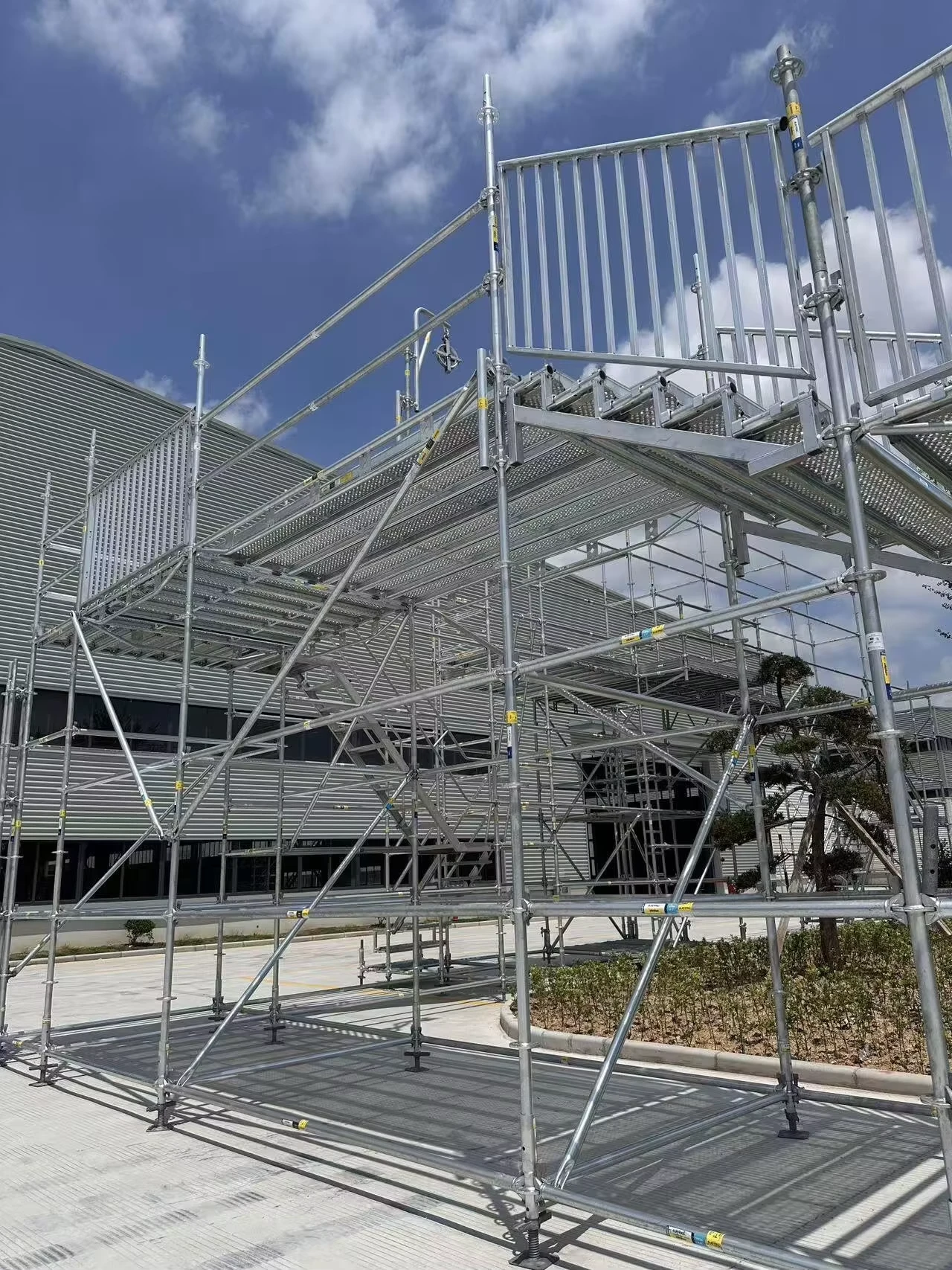

Ringlock stair access
An access arrangement with stair flights and edge protection.

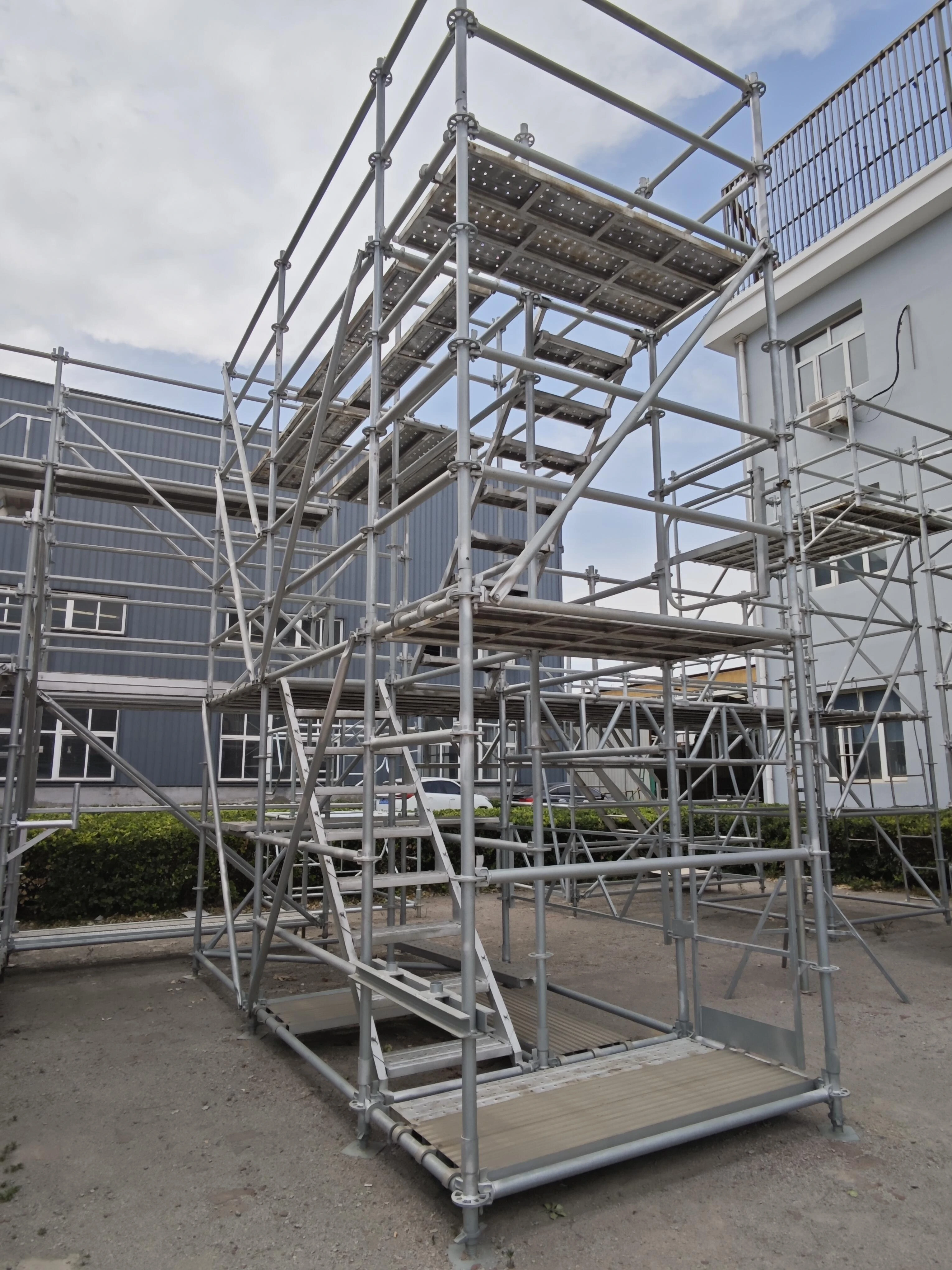

Ringlock assembled bay
A clear view of the repeated nodes and diagonal bracing.
04 / NUOHONG COMPONENT SELECTION
Readable sizes.
Clear system choices.
Reference dimensions for component selection. Final sizes, tolerances and steel grades are confirmed against the selected Nuohong order drawing.
CUPLOCK
Cup-joint members
- Standard tube
- Ø48.3 × 3.2 mm
- Standard lengths
- 1,000 / 1,500 / 2,000 / 2,500 / 3,000 mm
- Ledger lengths
- 1,000 / 1,300 / 1,500 / 1,800 / 2,500 mm
- Finish
- Galvanized / coated to order
- Connection specification
- Cup profile + blade end + node layout
Dimensions follow the existing Nuohong Cuplock component schedule. Select the exact member and drawing when ordering.
RINGLOCK

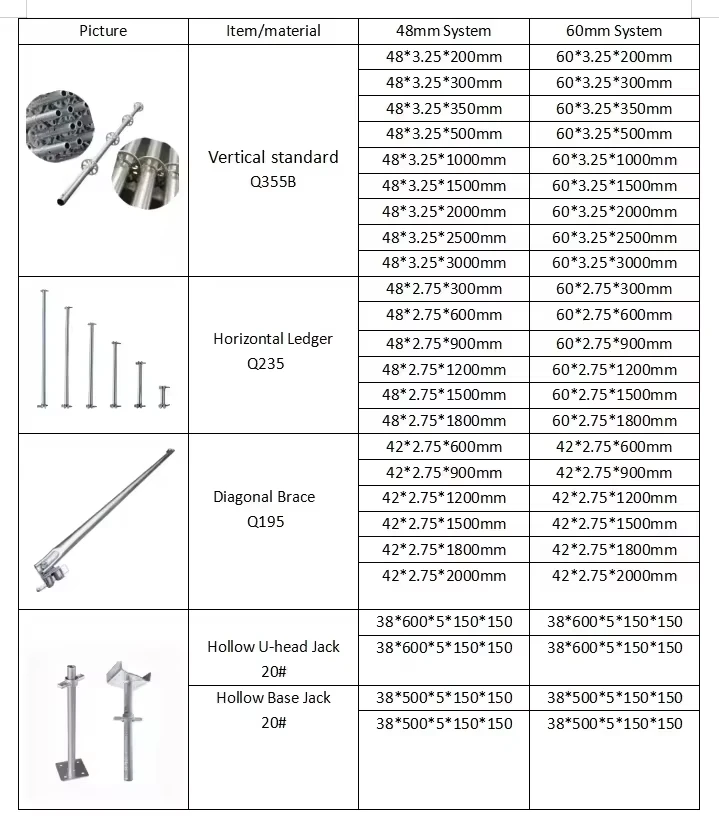

48 / 60 series schedule
48 series selected · dimensions in mm
| Component / steel | Tube OD × wall | Listed lengths |
|---|---|---|
| StandardQ355B | 48 × 3.25 | 200 / 300 / 350 / 500 / 1,000 / 1,500 / 2,000 / 2,500 / 3,000 |
| LedgerQ235 | 48 × 2.75 | 300 / 600 / 900 / 1,200 / 1,500 / 1,800 |
| Diagonal braceQ195 | 42 × 2.75 | 600 / 900 / 1,200 / 1,500 / 1,800 / 2,000 |
The schedule lists 48 and 60 mm series; confirm actual tube OD and joint profile. For braces, confirm whether the listed size denotes bay width or finished member length.
Hollow U-head jack · 20# steelØ38 × 5 mm stem · 600 mm length shown
Hollow base jack · 20# steelØ38 × 5 mm stem · 500 mm length shown
Plate dimensions and usable adjustment range are confirmed with the jack drawing.
RINGLOCK / COMPONENT DIRECTORY
Find a component by its role.
The following is the separate Ø48.3 mm component-guide range. Its grades and sections differ from the 48 / 60 series schedule above; select one confirmed specification.

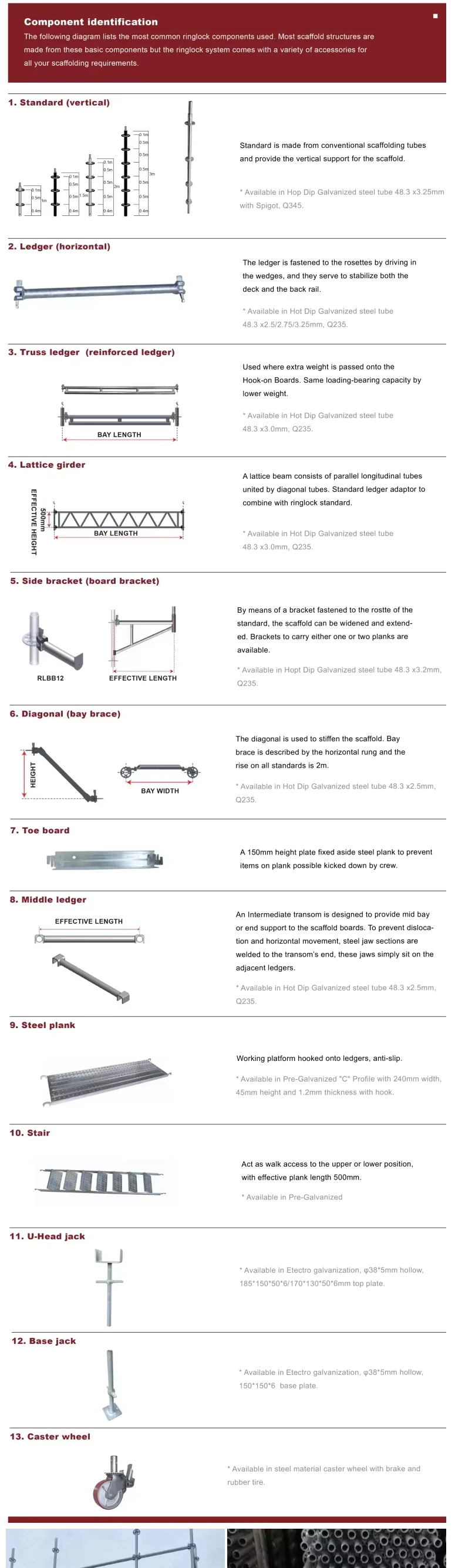

01Standard / vertical+
Carries rosette nodes and supports the connected members. Confirm the spigot and base-collar interface.
Ø48.3 × 3.25 mm · Q345 · 500 mm rosette pitch shown02Ledger / horizontal+
Connects standards with wedge heads. Specify bay length and end fitting.
Ø48.3 × 2.5 / 2.75 / 3.25 mm · Q23503Reinforced ledger+
Reinforced horizontal member for the specified deck-support arrangement.
Ø48.3 × 3.0 mm · Q23504Lattice girder+
A trussed member for a designed span or bridging arrangement.
Ø48.3 × 3.0 mm · Q23505Side bracket+
Projects the working platform beyond the standard line.
Ø48.3 × 3.2 mm · Q23506Diagonal bay brace+
Connects adjacent nodes to brace the scaffold bay.
Ø48.3 × 2.5 mm · Q235 · 2 m lift shown07Toe board+
Edge board used along the working platform.
150 mm board height shown08Intermediate transom+
Provides intermediate support to the specified scaffold boards.
Ø48.3 × 2.5 mm · Q23509Steel plank / deck+
Hook-ended working platform with a perforated surface.
240 mm width · 45 mm depth · 1.2 mm sheet10Access stair+
Provides a stepped access route between working levels.
Pre-galvanized option · stair geometry to drawing11U-head jack+
Adjustable head support with a matching threaded stem and nut.
Ø38 × 5 mm hollow stem · plate to drawing12Base jack+
Adjustable support at the base of the standard.
Ø38 × 5 mm hollow stem · 150 × 150 × 6 mm plate13Braked caster+
Mobile support option for an approved tower configuration.
Wheel, brake, stem and rating to order05 / PROJECT SUPPLY
From selected parts
to organized delivery.
Plan quantities, finish, bundle identification and destination together. The loading examples below show Ringlock members.

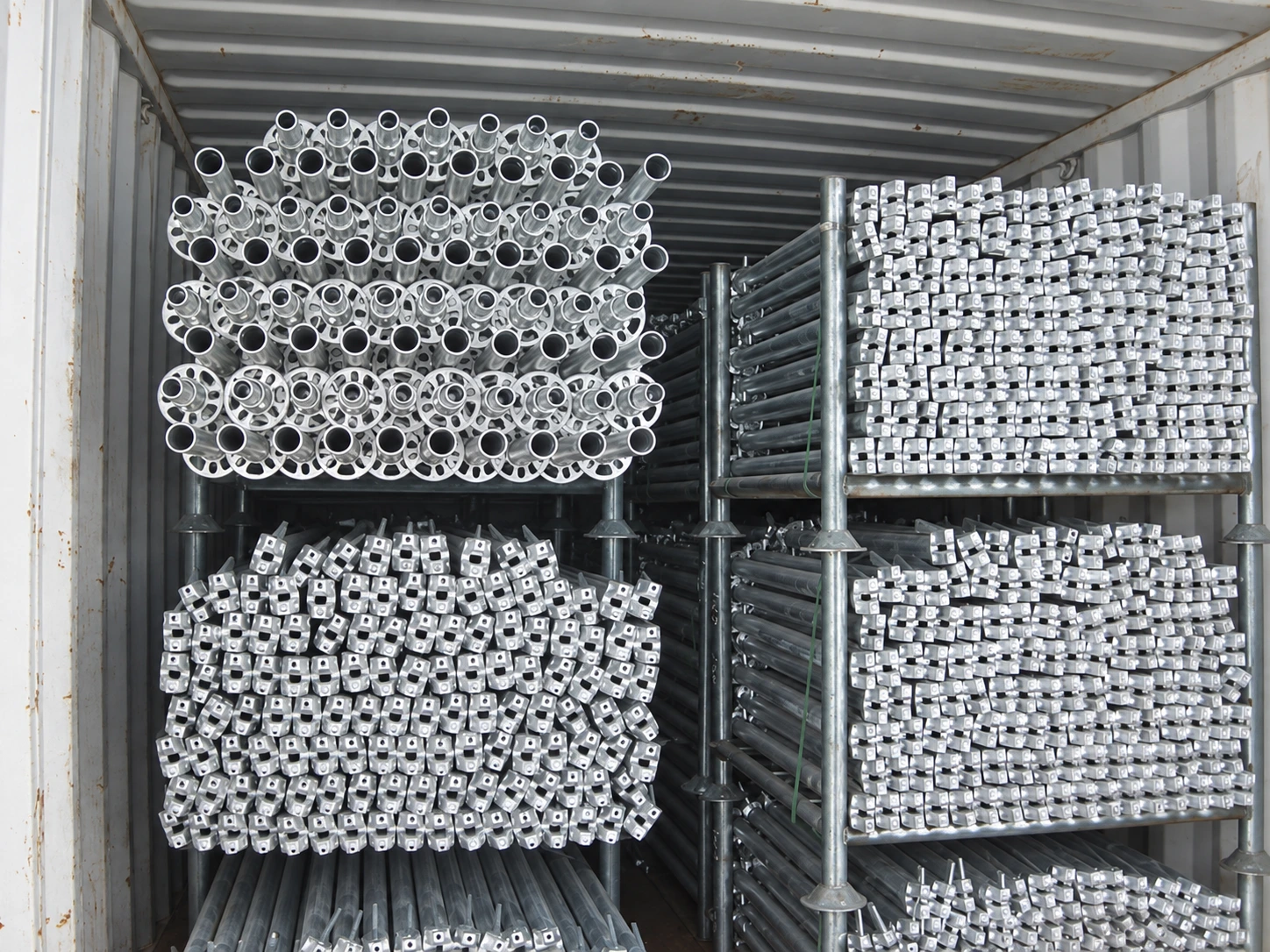

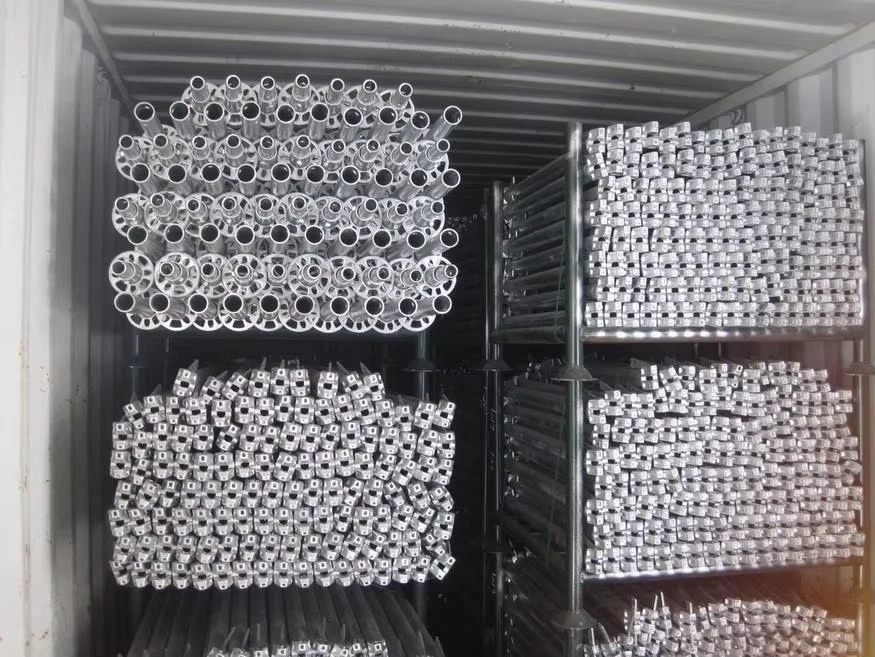

Ringlock / container arrangement
Bundled standards and horizontal members. Enhanced photograph.

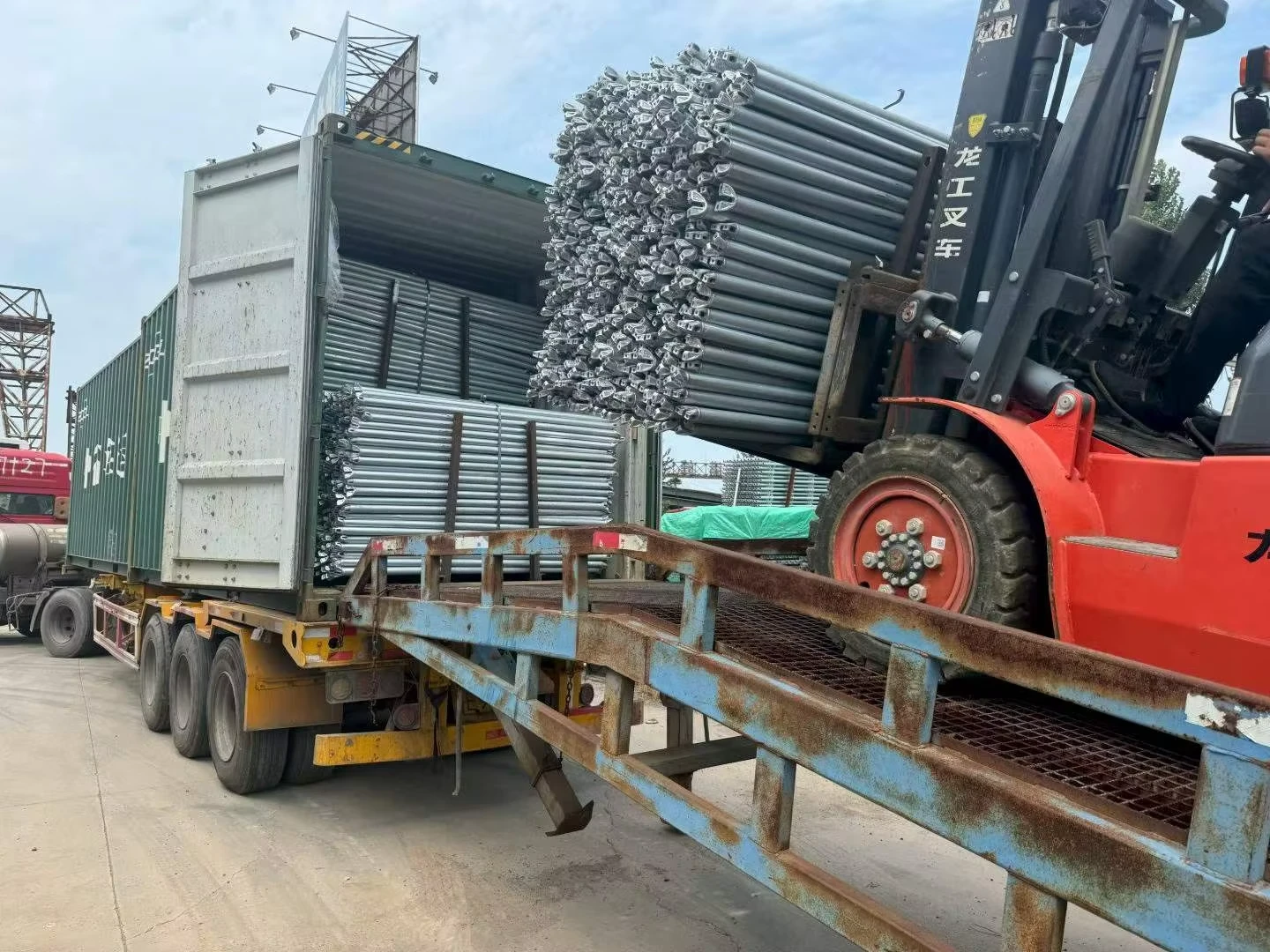

Ringlock / loading
Handling bundled components at the container.

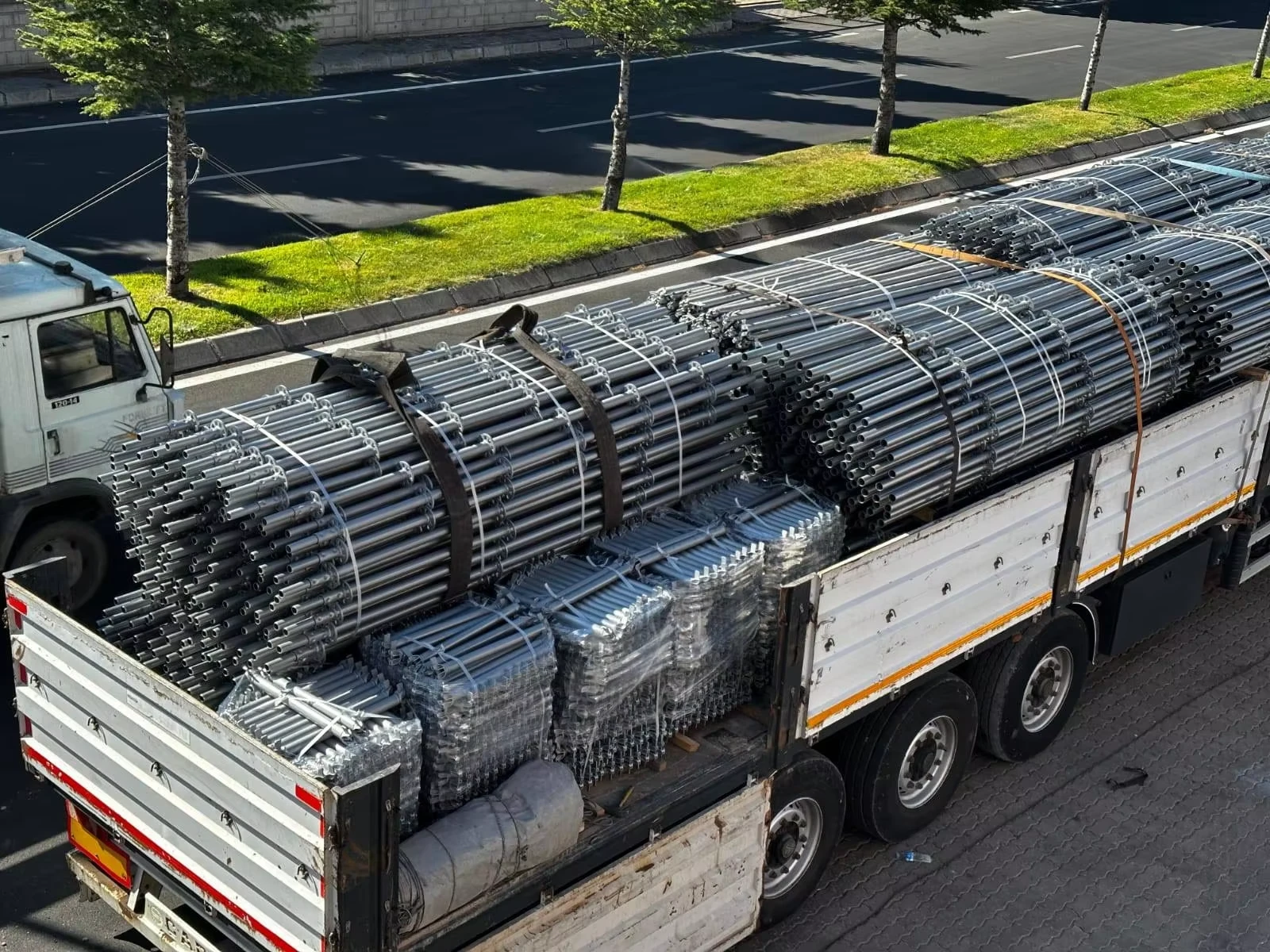

Ringlock / transport
Strapped component bundles prepared for transport.
MORE ACCESSORIES
Have a photo of the part you need?
Our sample assortment includes several fitting families. Send a marked photo, the system name and dimensions so the exact part can be identified.
Prepare your WhatsApp inquiry →Original reference images & product sheets +
NUOHONG / FROM OUR FACTORY
Explore related films ↗System connections. Support details.
Cuplock fabrication and adjustable support samples, with each component selected for its intended system.
06 / WHATSAPP INQUIRY
More parts.
A precise match.
Share the system, component, dimensions and quantity. Add a marked photo when you contact Nuohong on WhatsApp.
Nuohong Factory
Hebei manufacturing · Yiwu export office
