REFERENCE DIMENSIONS

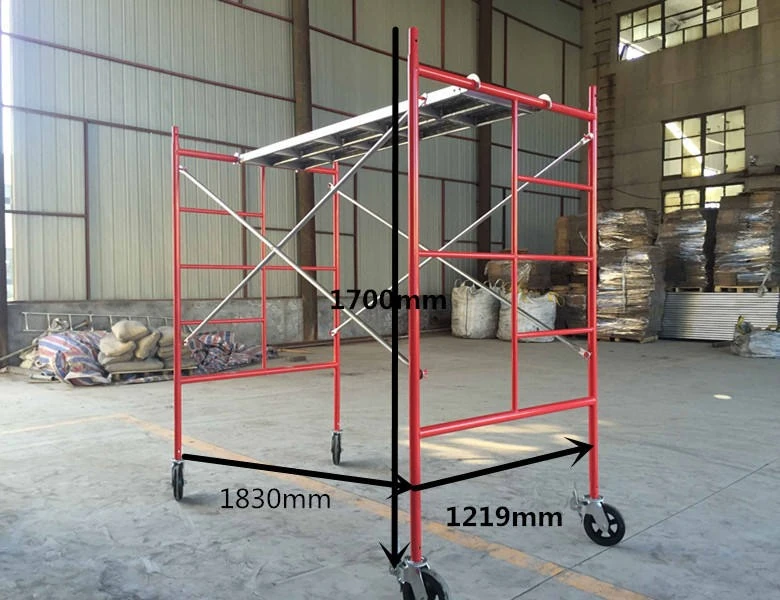

Frame scaffold size example

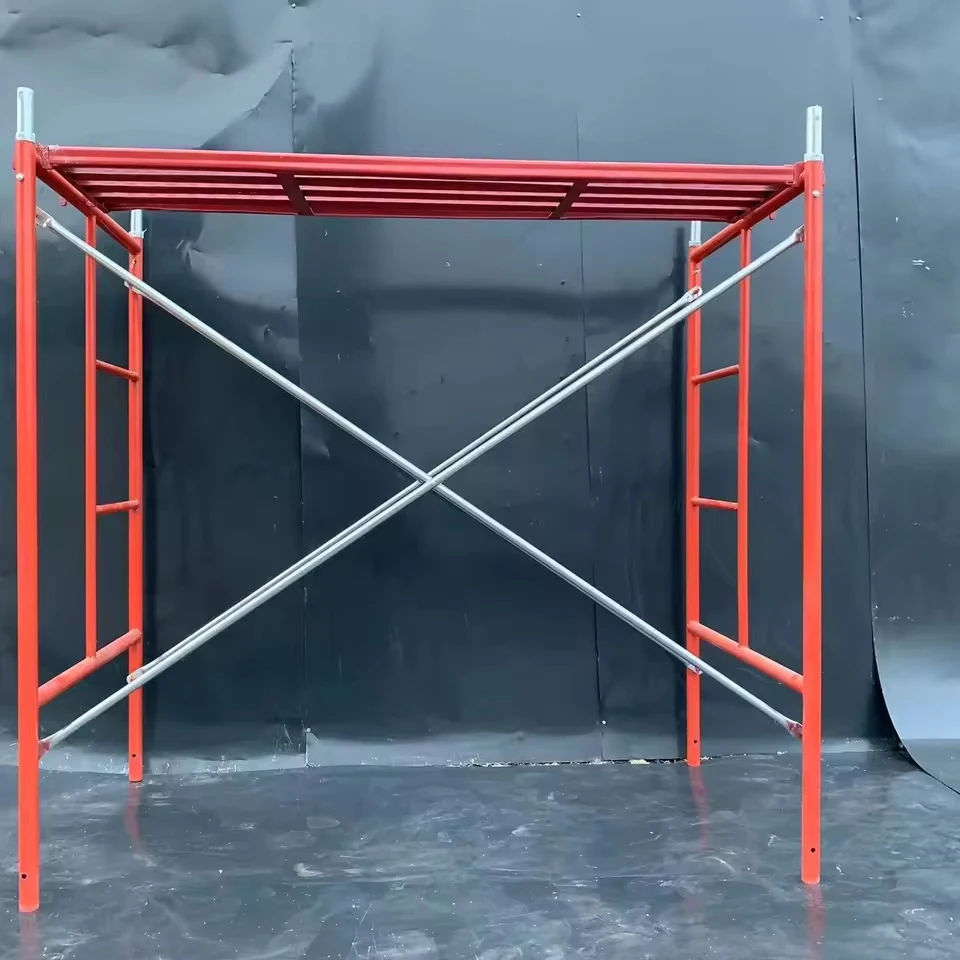

The illustrated mobile frame is shown at 1700 mm high, 1830 mm long and 1219 mm wide. Confirm the required size and platform arrangement for each order.
PRODUCT GALLERY01 / 10 — Nuohong frame scaffold at the factory
FRAME SCAFFOLDING SYSTEMS
Nuohong Frame
Scaffolding Systems
& Components
NUOHONG FACTORY CATALOGHebei manufacturing · Yiwu export office
H frames, walk-through frames, cross braces, platforms and adjustable accessories for construction access, maintenance and mobile work platforms. Order a complete set or select individual components.
MaterialQ235 / Q345 steel

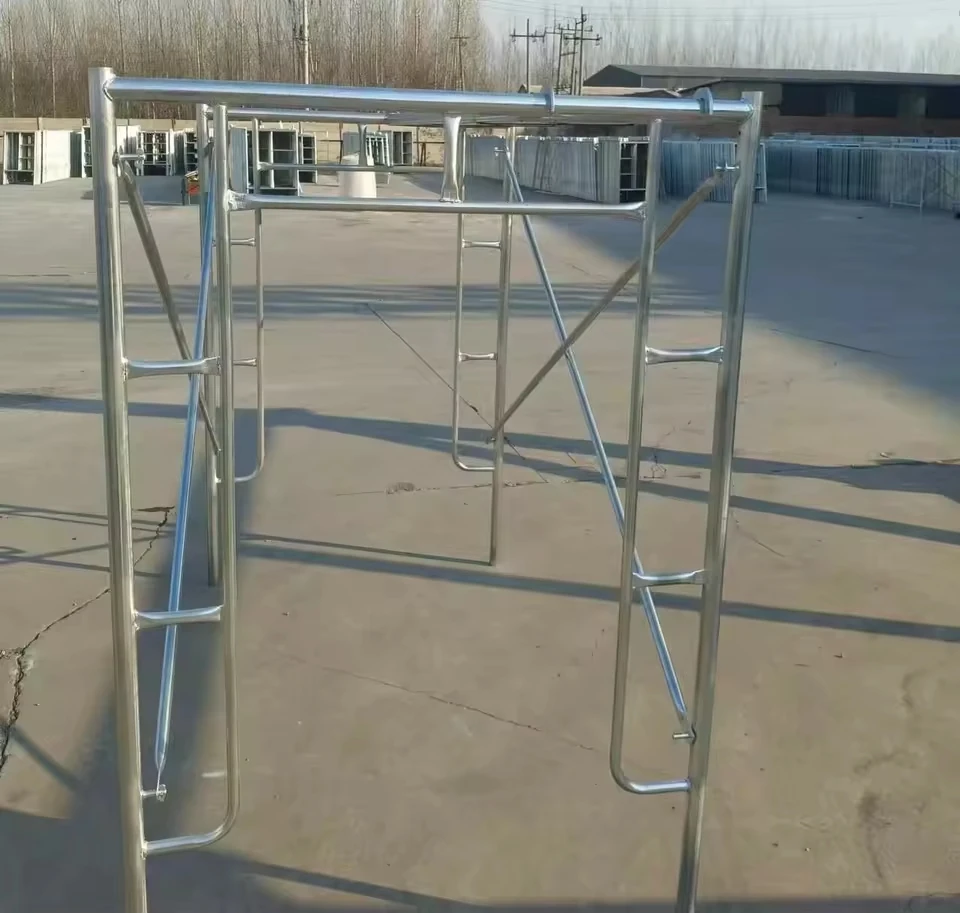

Frame formatsH frame / Walk-through frame
Finish optionsPainted / Electro-galvanized / HDG
Order quantityFrom 100 sets · inquire for parts
Explore a frame family 02 specification groups
Nuohong Factory · Manufactured in Hebei, China. Final configuration, quantity and shipment plan are arranged for each order.
01
Complete sets or partsConfigure the scaffold for your project
02
Multiple finish optionsPainted or galvanized to specification
03
Project supplyOEM production and export coordination
01 / TECHNICAL OVERVIEW
Choose the right frame size.
Compare the saved H-frame and frame-scaffolding sizes by overall specification and nominal unit weight.
| Frame type | Specification | Nominal weight |
|---|
Dimensions and weights follow the saved Nuohong factory catalog. Confirm load class, bay layout, accessories and finish with our team before ordering.
02 / PRODUCT DESCRIPTION
A practical frame system
for fast site access.
Frame scaffolding uses prefabricated side frames connected by cross braces to create stable work bays. Platforms, joint pins, lock pins, casters and adjustable jack bases complete the system for façade work, indoor and outdoor decoration, maintenance and temporary working platforms.
Nuohong supplies complete systems and individual components in painted, electro-galvanized or hot-dip galvanized finishes. Drawings, dimensions, quantities and destination are reviewed before production and loading.
- H-frame, ladder-frame and walk-through configurations for different access needs.
- Cross braces locate the frame spacing and improve system stability.
- OEM dimensions, finishes, platforms and mobile-base accessories available.
03 / SURFACE FINISHES
Specify the finish for your market.
Paint color is project-specific. Galvanizing method and coating requirements are confirmed for each order.
PAINTED
Painted finish
Paint color and coating specification can be selected for the intended project or market.
ELECTRO-GALVANIZED
Electro-galvanized finish
A bright metallic finish for organized component supply and everyday handling.
HOT-DIP GALVANIZED
Hot-dip galvanized finish
Specify the required coating standard for demanding service environments.
04 / SYSTEM COMPONENTS
Build the complete frame system.
Review the full assembly and then inspect each accessory separately.

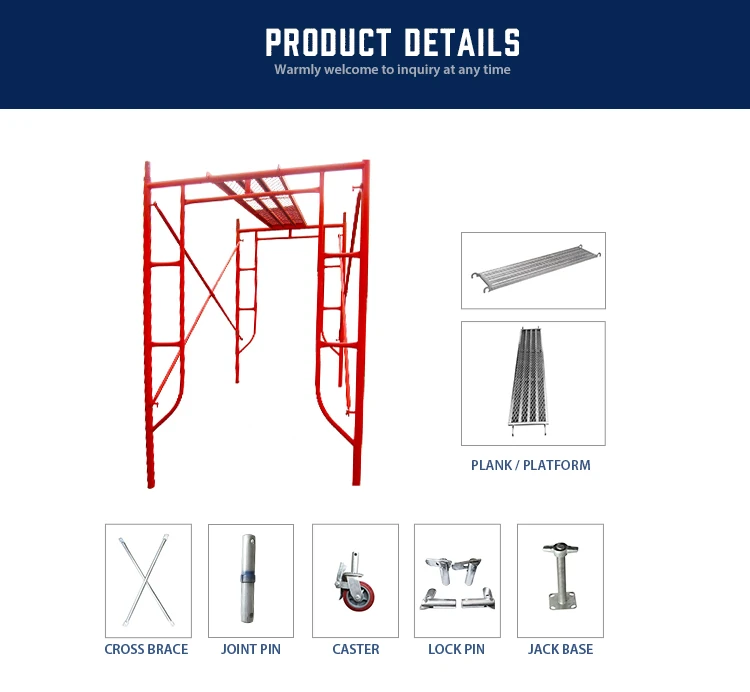

THE COMPLETE SET
Frames, braces,
platform and bases.
A typical listed set includes two frames, two cross braces, four lock pins and one steel platform. Casters and adjustable jack bases can be added for mobile or level-adjusted configurations.
01 / FRAME

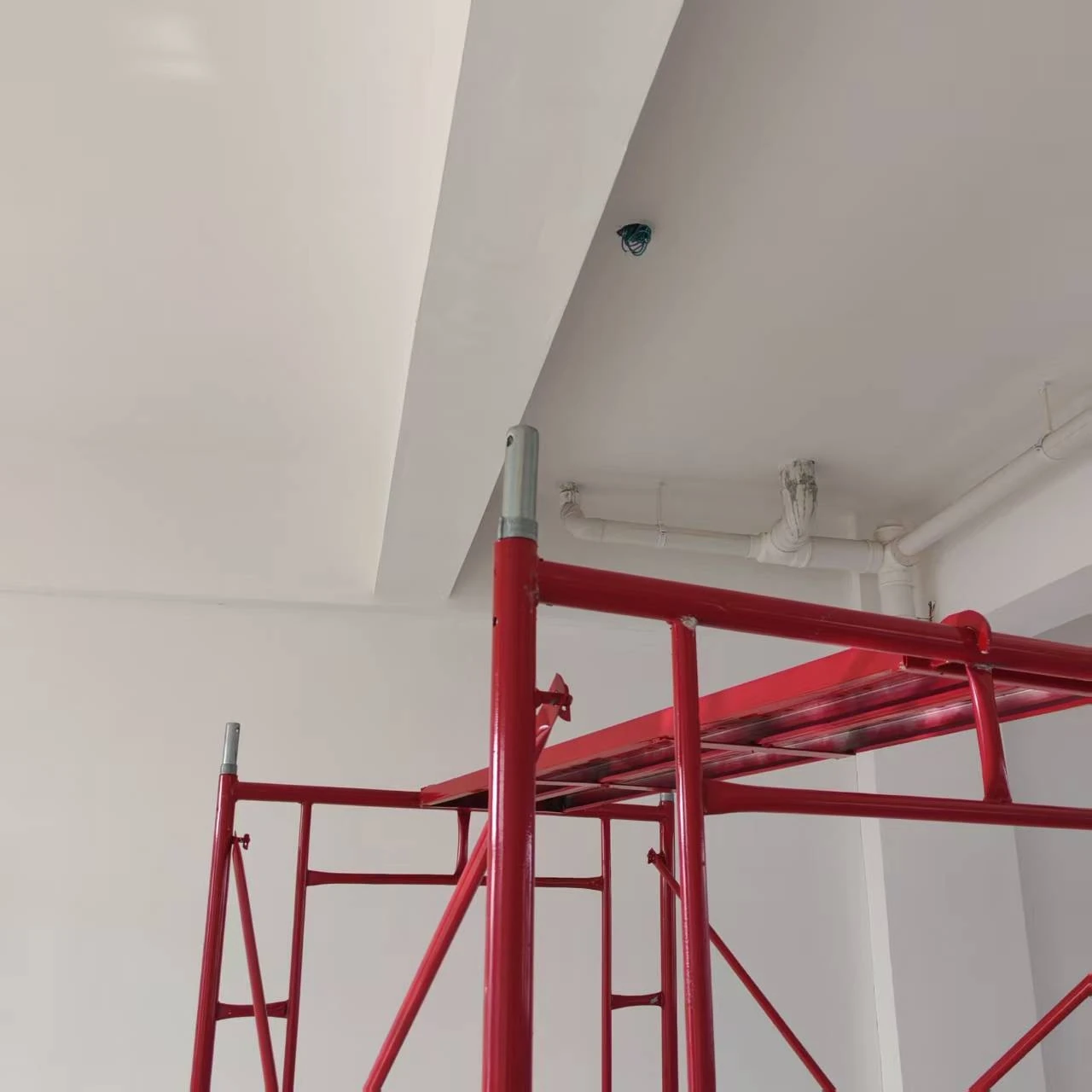

Frame
Painted scaffold-frame detail showing the top connection, platform support and bracing.
02 / PLATFORM DETAIL

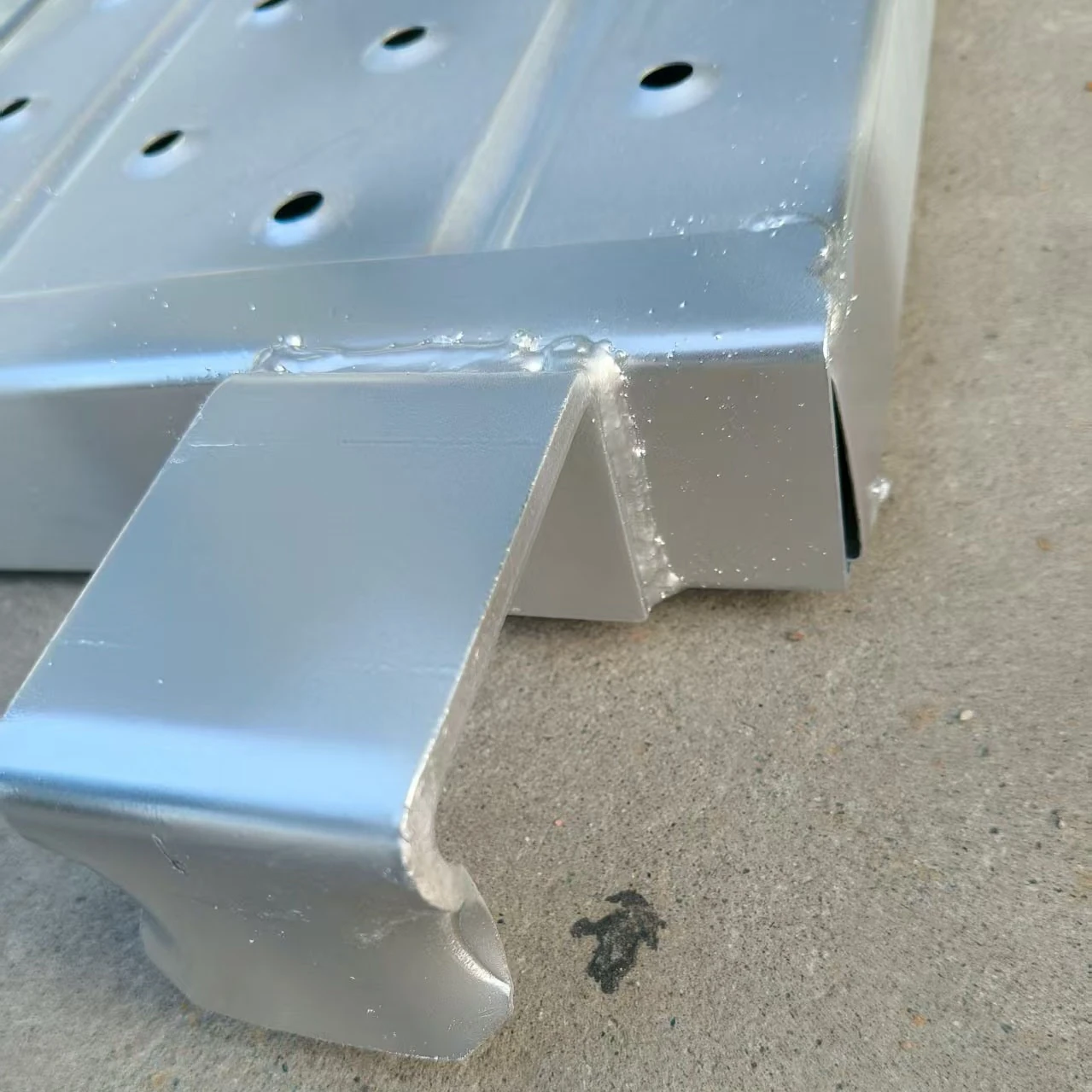

Scaffold Plank Detail
Close-up of the galvanized scaffold plank, formed edge, punched deck and welded connection.
03 / BRACING
Cross Brace

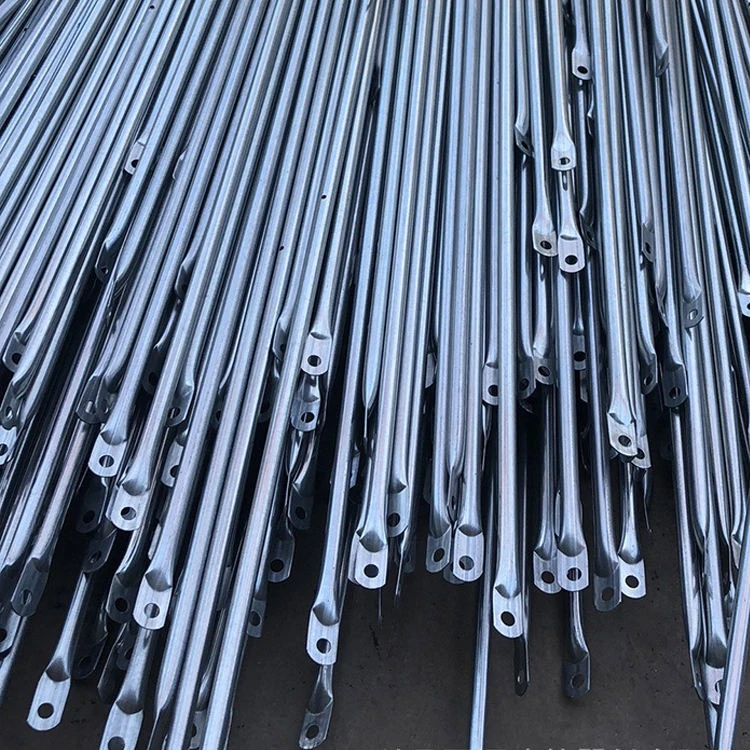

Galvanized cross braces connect the frames and fix the bay spacing.
04 / CONNECTION

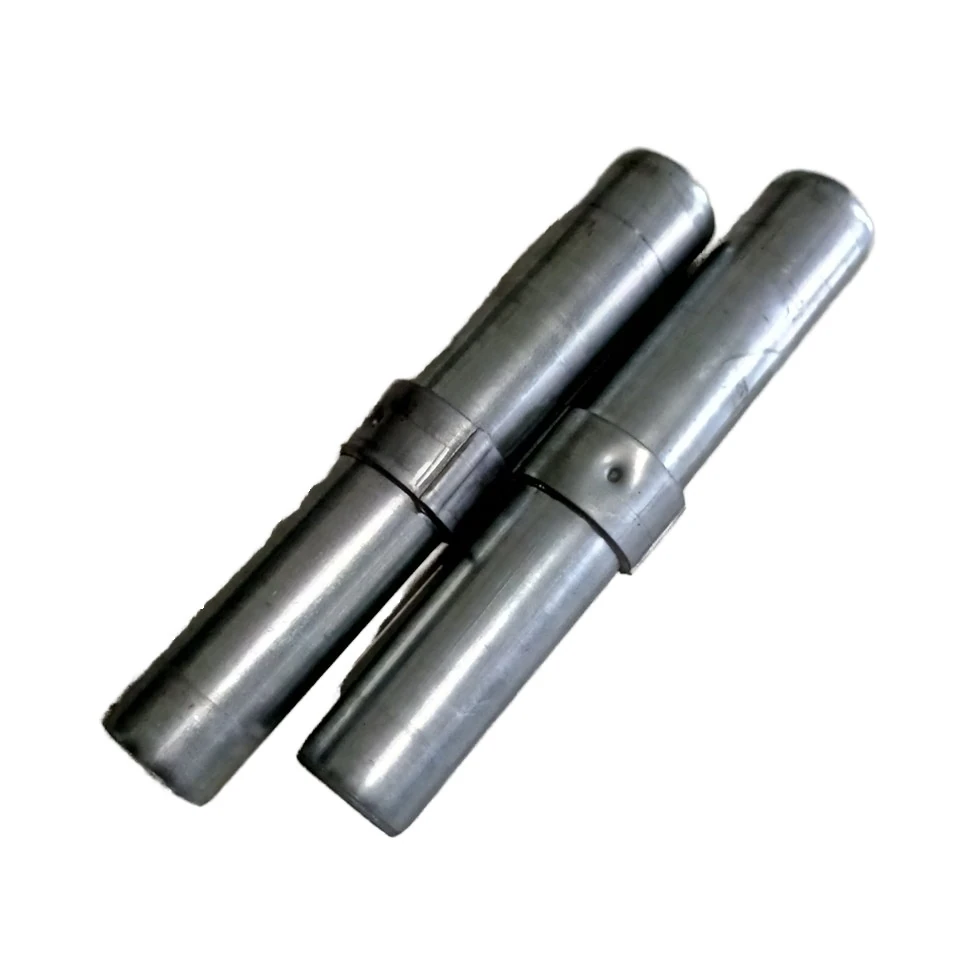

Joint Pin
Joint pins connect stacked frames at the vertical tube ends.
05 / MOBILE BASE

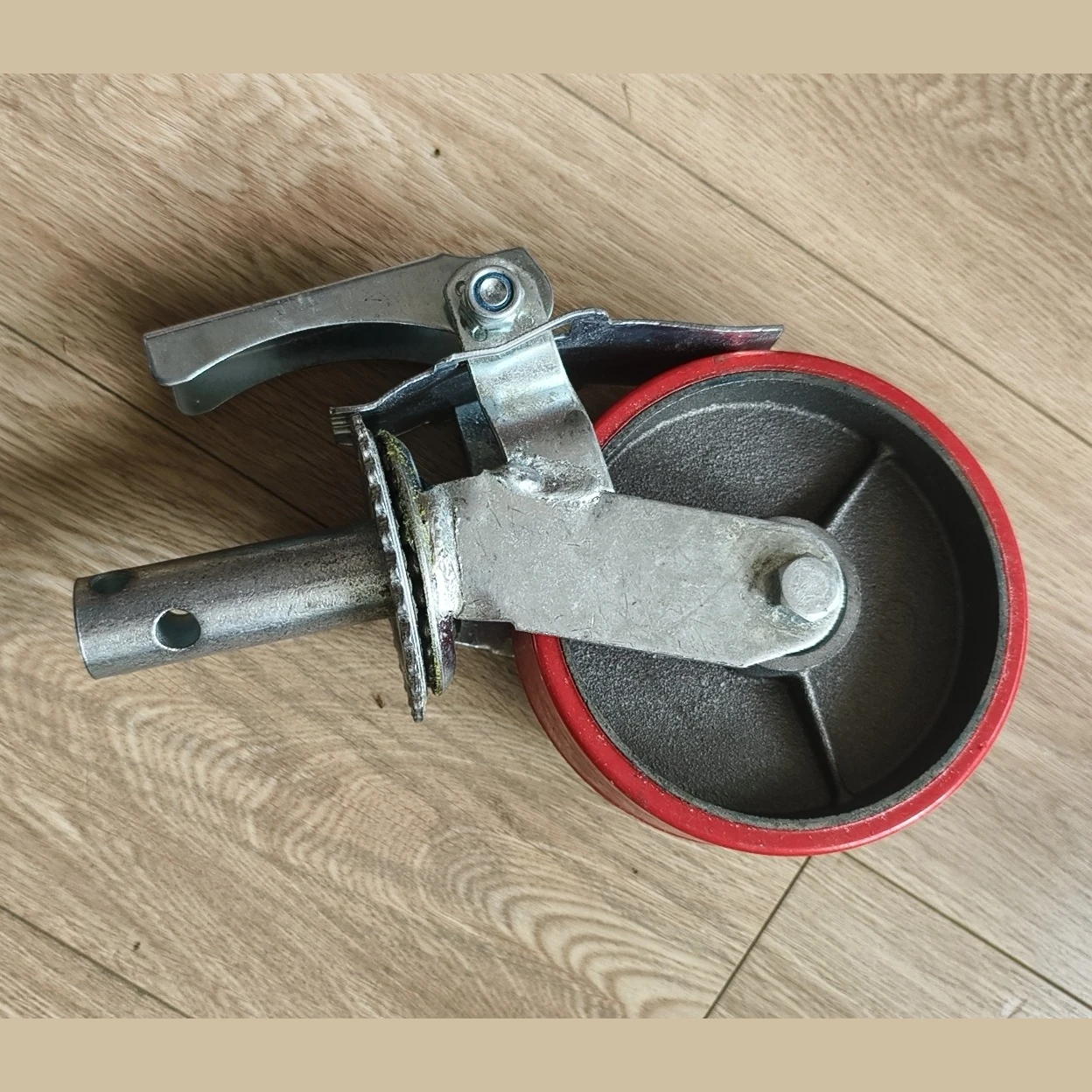

Caster
Swivel caster with brake for mobile scaffold configurations.
06 / RETAINER

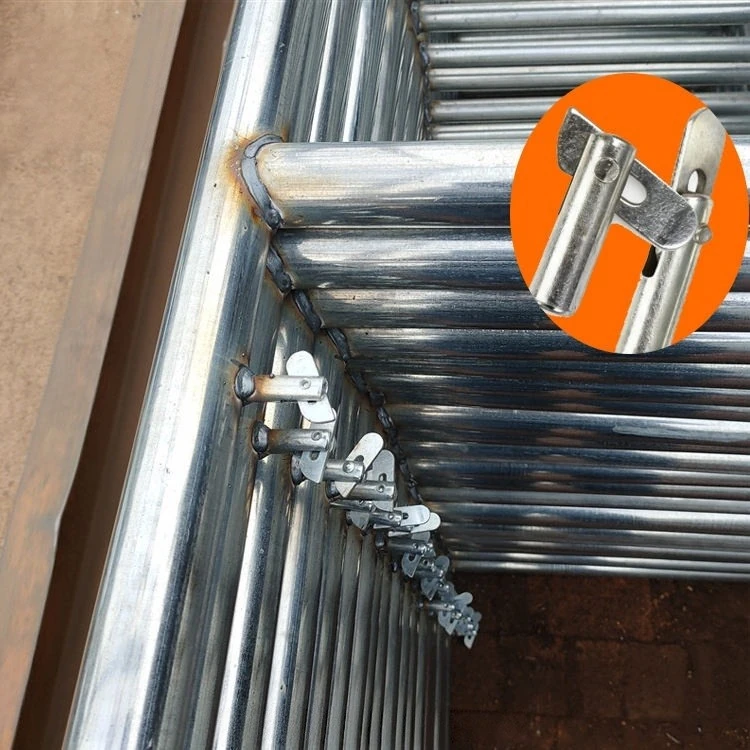

Lock Pin
Locking pins retain connected parts at their fixing points.
07 / LEVELING

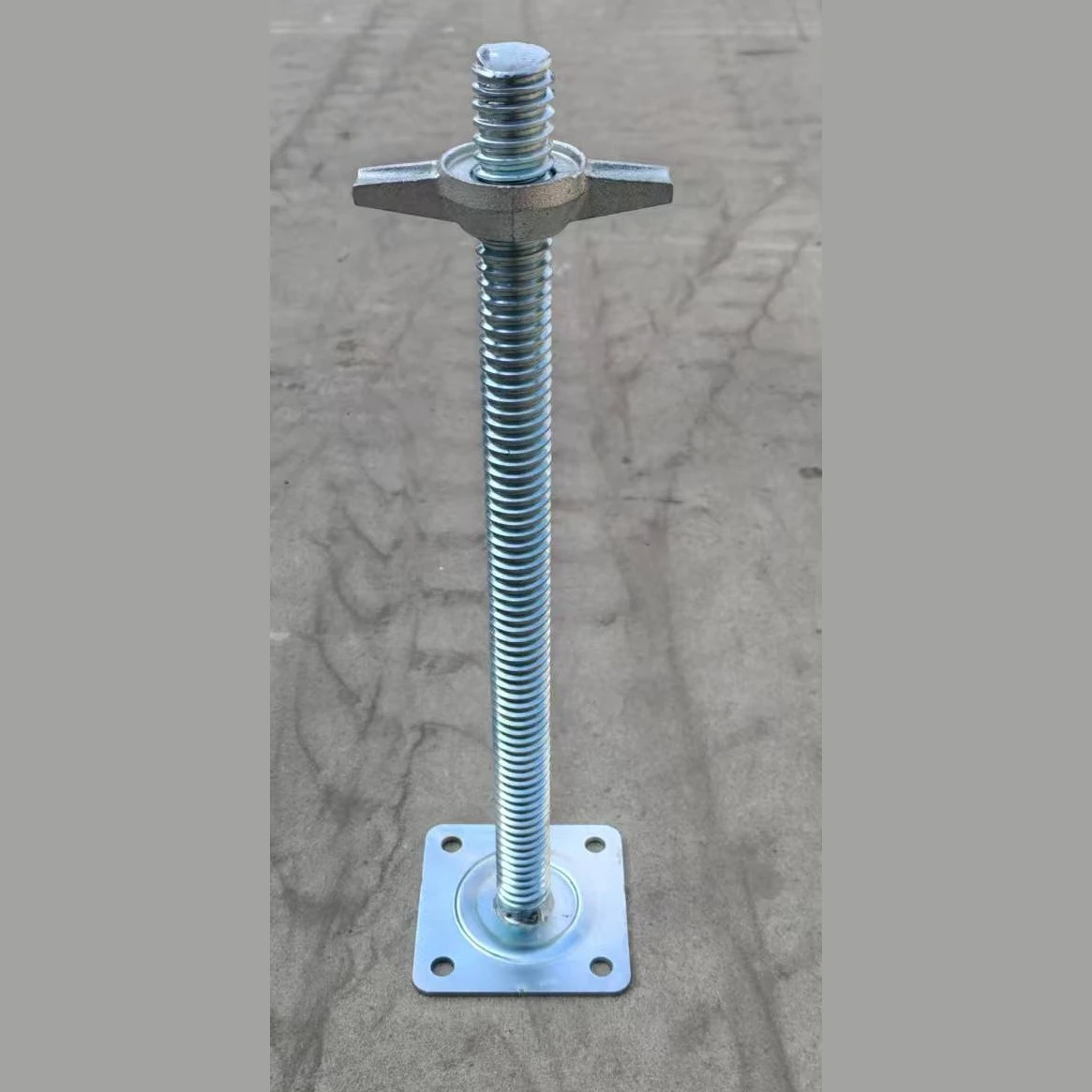

Jack Base
Adjustable screw jack base for leveling on uneven ground.
05 / PRODUCT VIDEO
See the frame system in motion.
The saved Nuohong factory-catalog video presents the frame scaffold set and its working arrangement.
MAIN PRODUCT VIDEO
Frame scaffolding overview
Product configuration, frame structure and component arrangement.
06 / PRODUCTION TO DELIVERY
Built for repeatable project supply.
Nuohong coordinates material preparation, tube cutting, punching, welding, surface finishing, assembly checks, packing and transport. Finished frames are organized by size and finish before shipment.
01Confirm frame type, bay size, platform and accessory list.
02Define material, finish and any OEM requirements.
03Arrange bundling, loading and delivery by sea, rail or customer instruction.
Plan your order ↗SHIPPING VIDEO
Frame scaffold loading & dispatch.
Finished frames, braces, platforms and accessories are sorted by specification, bundled for handling and checked against the packing list before loading.
The final packing method, container plan and transport route are coordinated for the order quantity and destination.
Grouped by specificationChecked before loadingPrepared for project delivery
WAREHOUSE, PACKING & LOADING
Organized for project delivery.
Warehouse storage, bundled frames and container loading are shown as separate high-resolution records. Select any image to inspect it in detail.

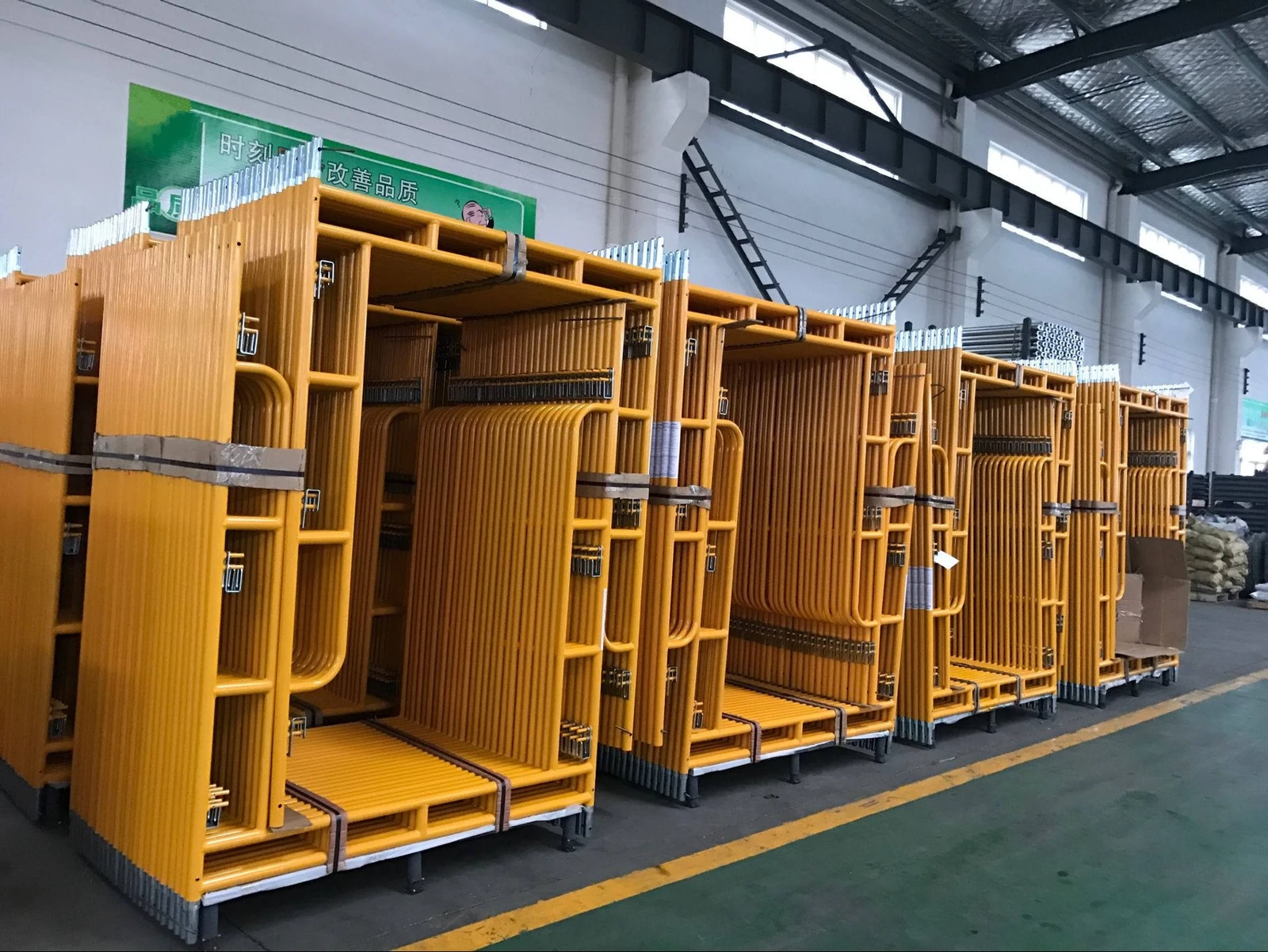

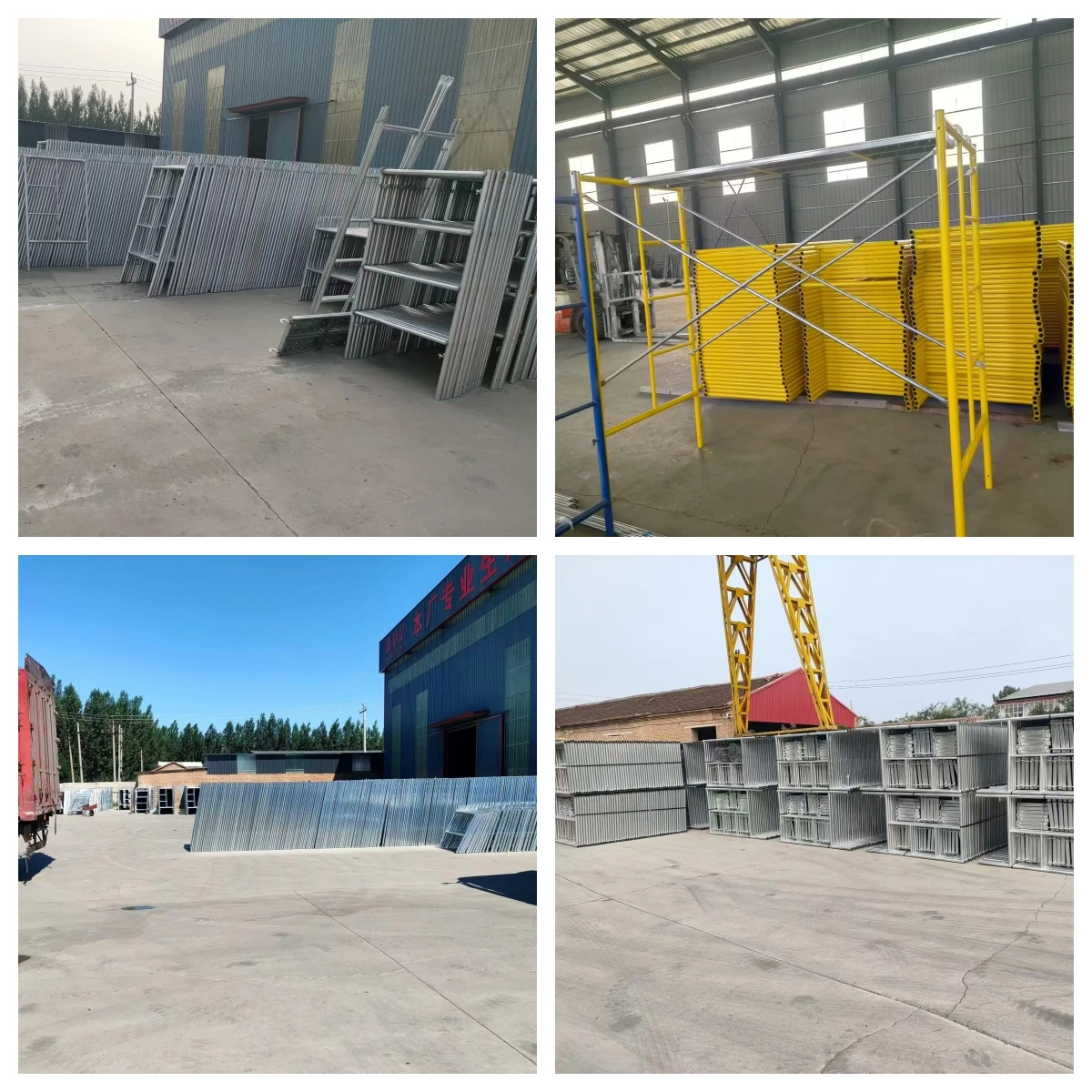

01 / WAREHOUSEPainted frame sets organized for dispatch

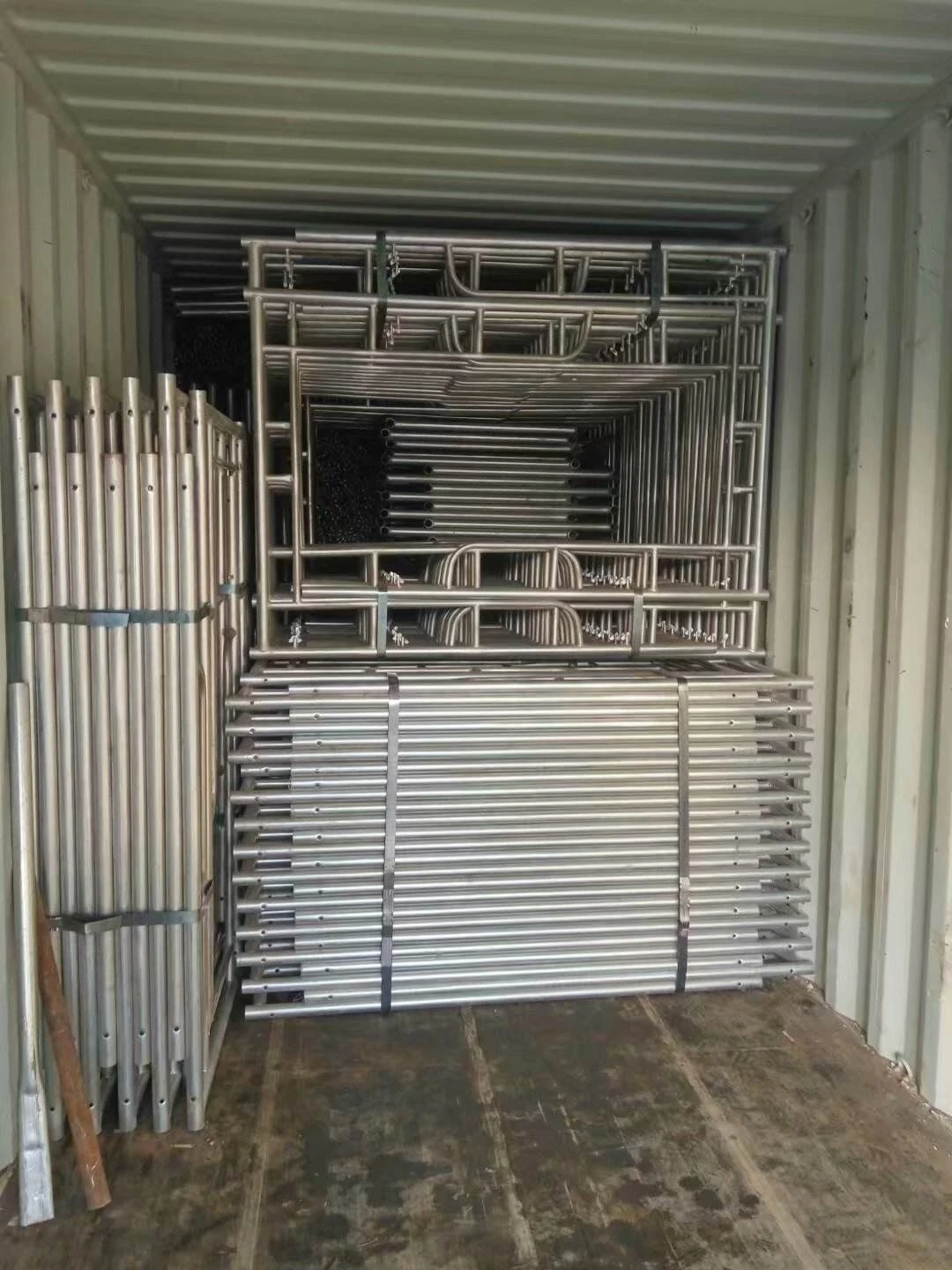

02 / CONTAINER LOADINGFrames and components secured by group

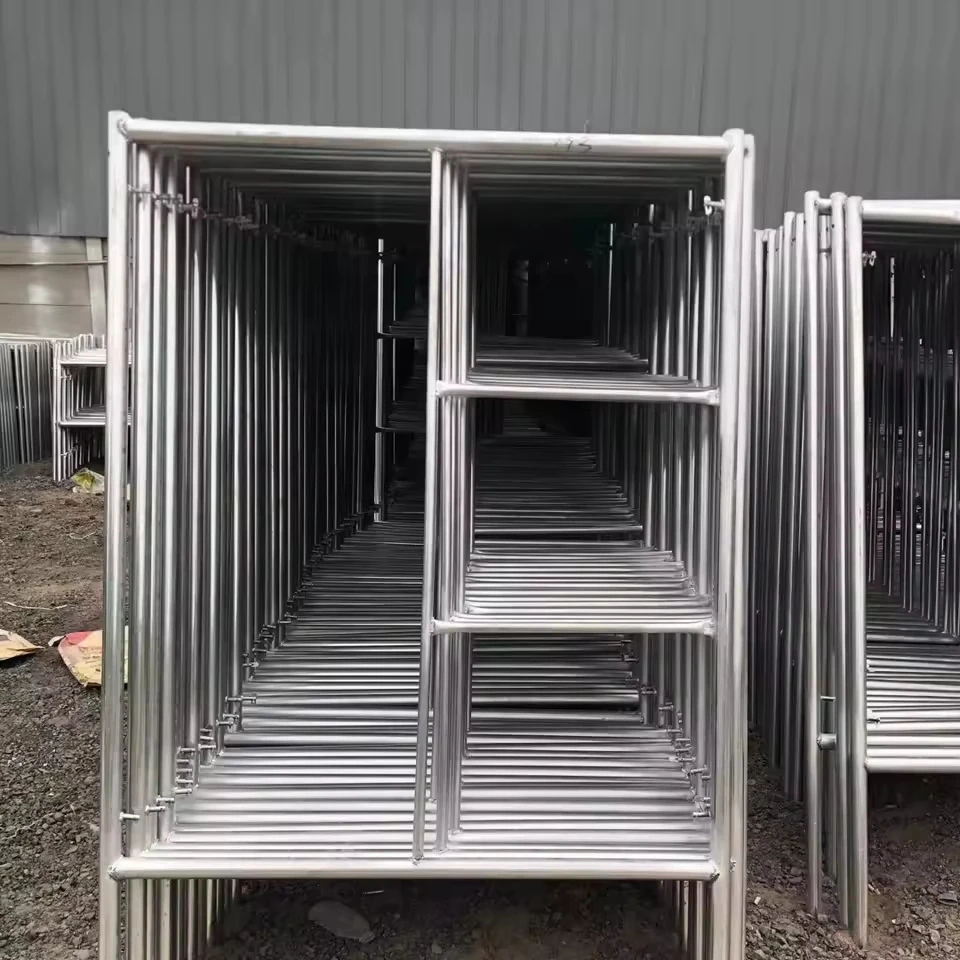

03 / FINISHED FRAMESNested galvanized frames prepared by size

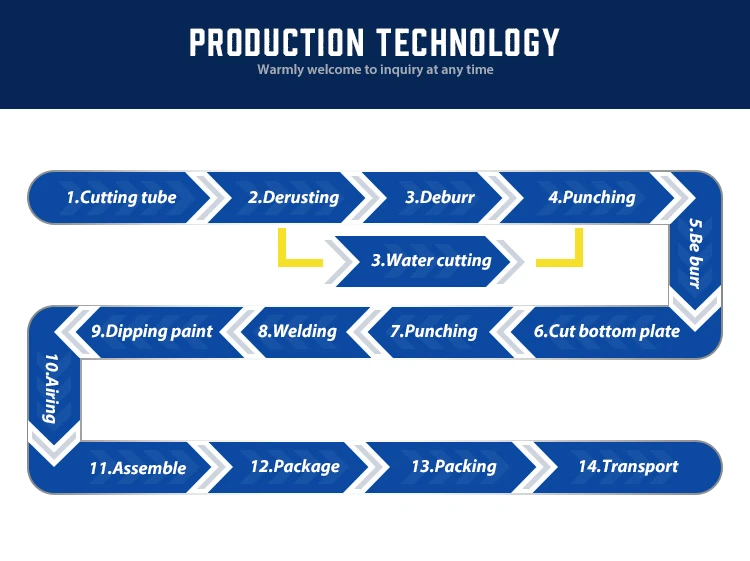

04 / PROCESSProduction sequence from cutting to transport
07 / SOURCE & CATALOG RECORD
Nuohong Factory Catalog.
Product presentation, saved dimensions and visible media on this page are organized as Nuohong factory catalog material.
NUOHONG / FACTORY CATALOG
Manufacturing strength for dependable project supply.
Nuohong Factory manufactures and exports scaffolding systems, adjustable steel props, formwork support and construction accessories. With 25 years of manufacturing experience and 15 years of export experience, we combine production in Hebei with a sales and export office in Yiwu, Zhejiang.
Manufacturing experience25 years
Export experience15 years
Manufacturing baseHebei, China
Sales & export officeYiwu, Zhejiang
Manufacturing & customization
Steel processing, cutting, welding, threading, assembly and finishing. Custom dimensions and specifications can be produced to drawings or samples.
Quality through production
Inspections cover dimensions, welds, surface finish, threaded parts, assembly, packing and loading.
International project supply
Wholesale and full-container orders, specification planning, export documentation and shipment coordination.
NUOHONG / FROM OUR FACTORY
Explore related films ↗Made, assembled and prepared for dispatch.
Robotic welding, sample fit-up and deck loading connect the frame system to its supply process.
LET'S DEFINE YOUR SYSTEM
Your project.
Our next conversation.
Prepare a concise inquiry with the component range, approximate quantity and destination. The form prepares a draft for WhatsApp or email.
Nuohong Factory
Manufacturing: Hebei, China · Sales & export: Yiwu, Zhejiang
