01 / UPRIGHT
Vertical Standard
The upright tube with rosettes at regular intervals; establishes height and connection points.

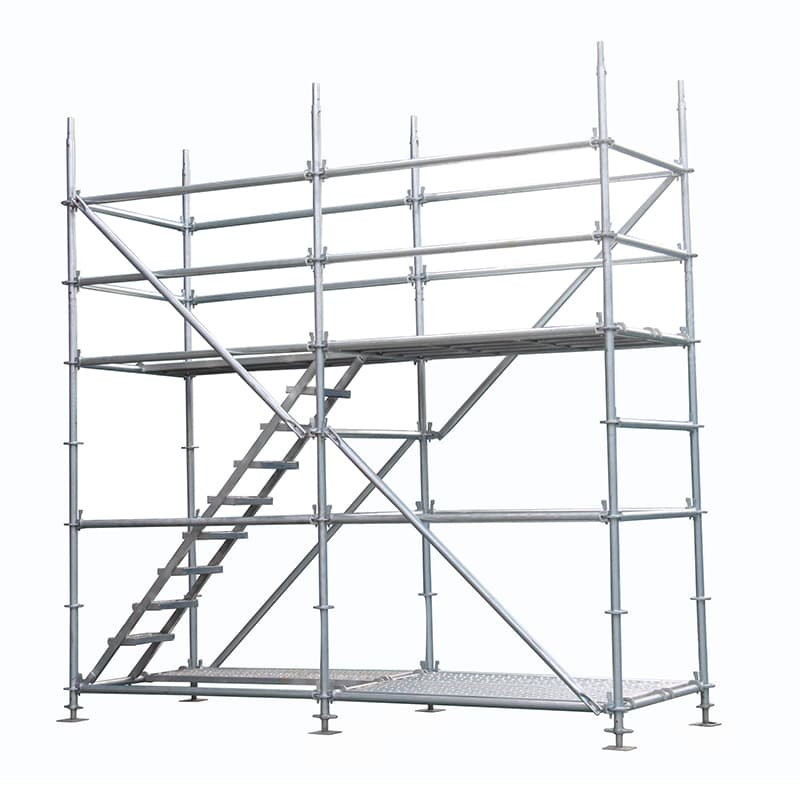

PRODUCT GALLERY01 / 07 — Complete system
RINGLOCK SCAFFOLDING SYSTEMS
One system.
More ways to build.
NUOHONG FACTORY CATALOGHebei manufacturing · Yiwu export office
A modular access and support system built around vertical standards, ledgers and diagonal braces. Configure working platforms, stairs and accessories for your project geometry.
Standard & ledger tube48 mm diameter
Material gradesQ345 / Q235 steel
Surface optionsHDG / Powder coated / Painted
Supply modelWholesale / OEM / Project
Explore a component 03 specification groups
Nuohong can review your drawings, dimensions, loading requirements, finish and destination to confirm a project-specific offer.
01
Modular planningStandards, ledgers and braces
02
Surface optionsGalvanized, coated or painted
03
Project-led inquiryMatch quantities and configuration
01 / TECHNICAL OVERVIEW
Configure from the ground up.
Compare Nuohong's lengths, tube diameters and finish options for each core component.
| Component | Length | Wall thickness | Tube diameter | Available finish |
|---|
Project-specific confirmation. Share drawings or requirements so Nuohong can confirm tolerances, working load, compatibility and final production details.
02 / SYSTEM COMPONENTS
Every connection has a role.
Start with the complete diagram, then inspect each part on its own.

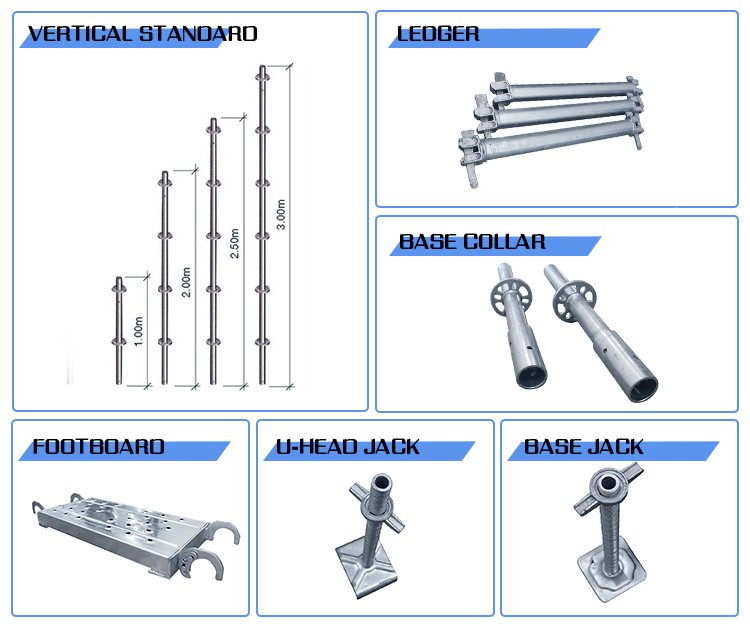

THE COMPLETE SYSTEM
Six core parts.
One coordinated structure.

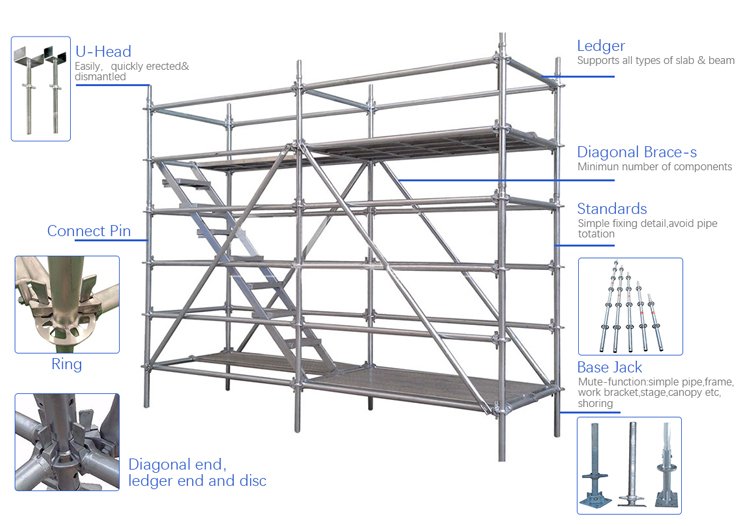

The diagram shows how the upright, horizontal, platform and adjustment components fit into a Ringlock system. Select any part below for a closer look.
Vertical standard · Ledger · Base collar
Steel footboard · U-head jack · Base jack
Steel footboard · U-head jack · Base jack
01–06 / INDIVIDUAL COMPONENTS
Explore each part.
Each view is isolated from the full diagram so buyers can identify the component and its role at a glance.
02 / HORIZONTAL
Ledger
The horizontal member connecting standards to define bay width and support the platform frame.
03 / STARTER
Base Collar
A short starter section that provides the first rosette connection above the adjustable base.
04 / PLATFORM
Steel Footboard
A hooked steel deck panel that forms part of the working platform between ledgers.
05 / TOP SUPPORT
U-Head Jack
An adjustable top support that seats a beam or formwork member at the required height.
06 / LEVELING
Base Jack
A threaded adjustable support used to level and position the scaffold at its base.
SYSTEM ANATOMY
Components in context.

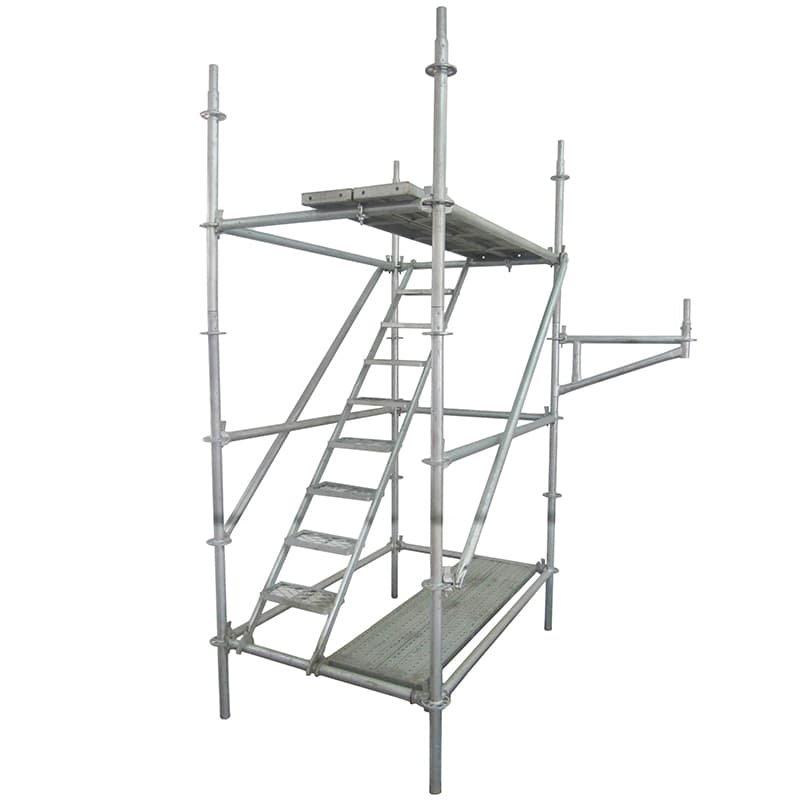

Standards, ledgers, diagonal braces, base jacks, access stairs and platforms shown together.

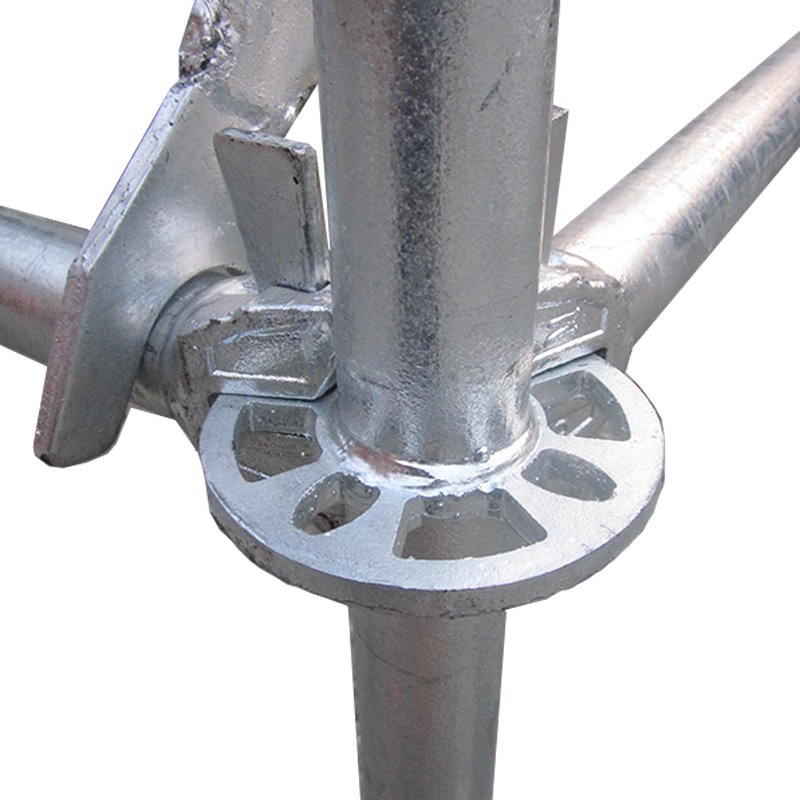

CONNECTION
The rosette interface.
A central connection point for ledger and brace positioning within the modular system.

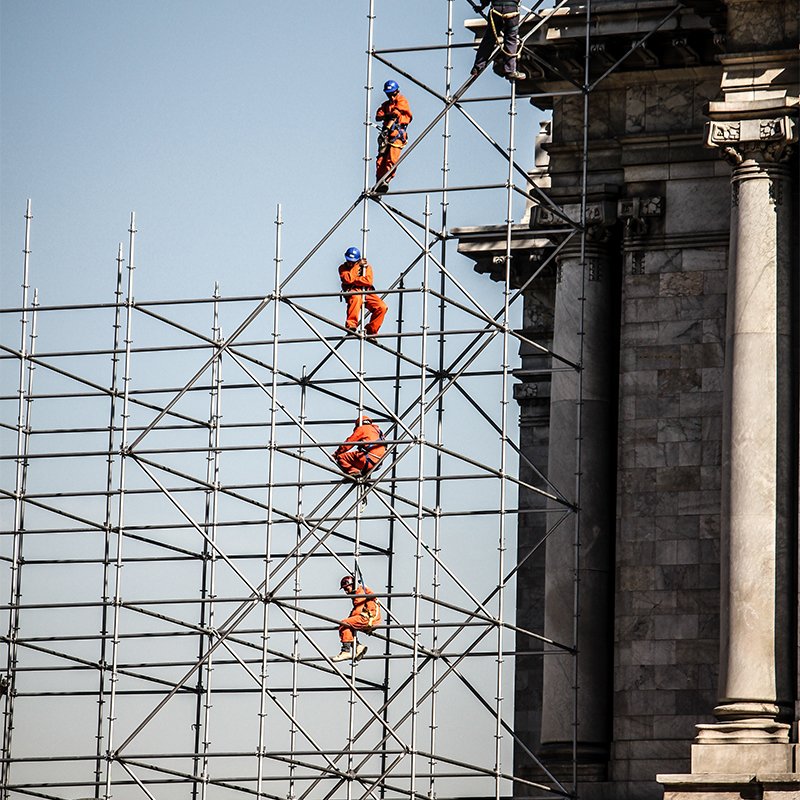

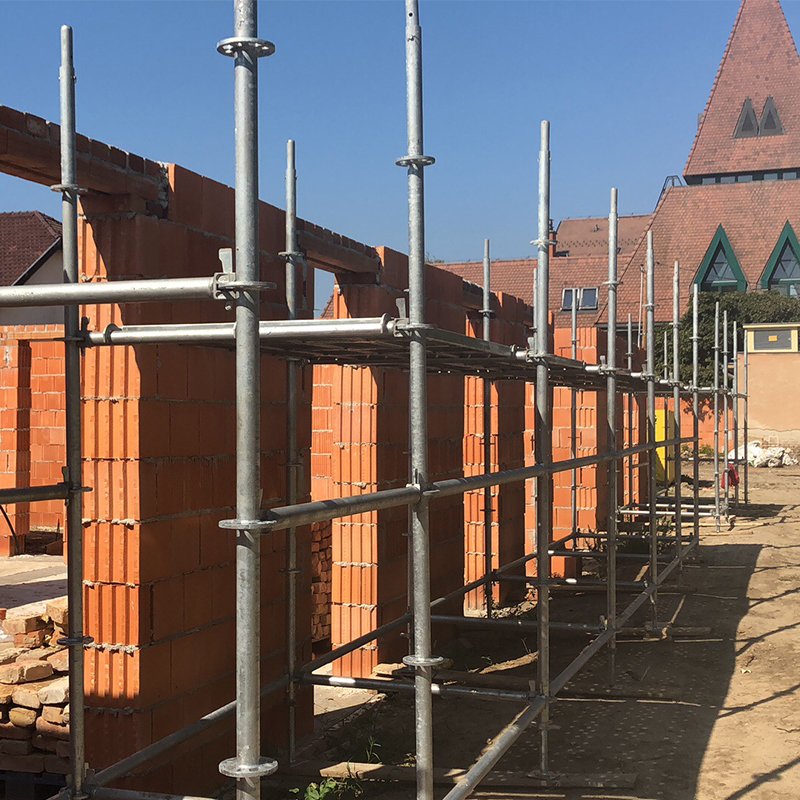

03 / PROJECT APPLICATIONS
Built around the shape
of the project.
Nuohong supports contractors, importers and distributors with modular Ringlock access and support solutions for project-specific layouts. Our team can review drawings, quantities, surface treatment and export requirements before production.
01Define access height, platform layout and work area.
02Select standards, ledgers, braces and platform components.
03Confirm finish, quantities and project engineering requirements.
Plan your system ↗NUOHONG / FACTORY CATALOG
Production strength for dependable project supply.
Nuohong Factory is a China-based manufacturer and exporter of scaffolding, steel props, formwork support and construction accessories. With 25 years of manufacturing experience and 15 years of export experience, we combine production in Hebei with a sales and export office in Yiwu, Zhejiang. Our catalog spans Ringlock, Cuplock and frame scaffolding, jacks, planks, couplers and formwork hardware.
Manufacturing experience25 years
Export experience15 years
Manufacturing baseHebei, China
Sales & export officeYiwu, Zhejiang
Manufacturing & customization
Steel processing, cutting, welding, threading, assembly and finishing. OEM dimensions and specifications can be produced from project drawings or samples.
Quality at every stage
Checks cover dimensions, welds, finish, threaded parts, assembly, packing and container loading before shipment.
International project supply
Wholesale and full-container orders, specification review, export documentation and shipping coordination for customers worldwide.
NUOHONG / FROM OUR FACTORY
Explore related films ↗A closer look at the supporting parts.
Explore adjustable bases and heads alongside the ringlock system. Confirm each interface with the selected design.
LET'S DEFINE YOUR SYSTEM
Your project.
Our next conversation.
Prepare a concise inquiry with the component range, approximate quantity and destination. Share your requirements directly with our factory team.
