Steel Props
Adjustable Chinese-style steel prop for formwork, shoring and temporary structural support, available in documented sizes, wall thicknesses and surface finishes.
SP / 04
Product information
Chinese-Style Steel Prop is an adjustable steel support system used for formwork, shoring and temporary structural support. The supplied product sheet documents a Q235 steel 48/60 inner/outer tube configuration with multiple adjustment ranges, wall-thickness rows, unit weights, and spray-painted or galvanized finish options.
Technical information
| Adjustment range | Spray painted 1.8 mm | Spray painted 2.0 mm | Galvanized 1.8 mm | Galvanized 2.0 mm |
|---|---|---|---|---|
| 1.8–3.2 m | 9.2 kg | 10 kg | 9 kg | 9.7 kg |
| 2.0–3.5 m | 9.6 kg | 10.5 kg | 9.4 kg | 10.2 kg |
| 2.2–4.0 m | 11 kg | 12 kg | 10.5 kg | 11.5 kg |
| 3.0–5.0 m | 13 kg | 14.2 kg | 12.5 kg | 13.8 kg |
Product details

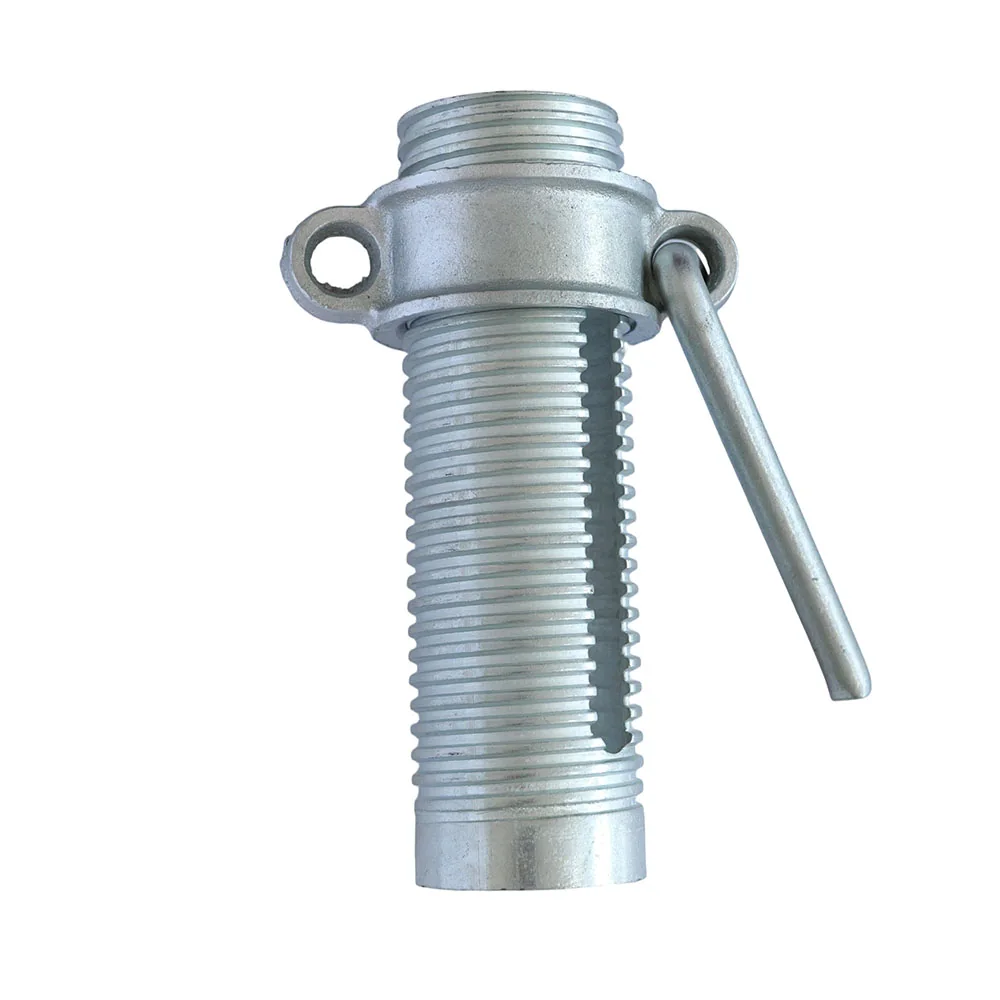

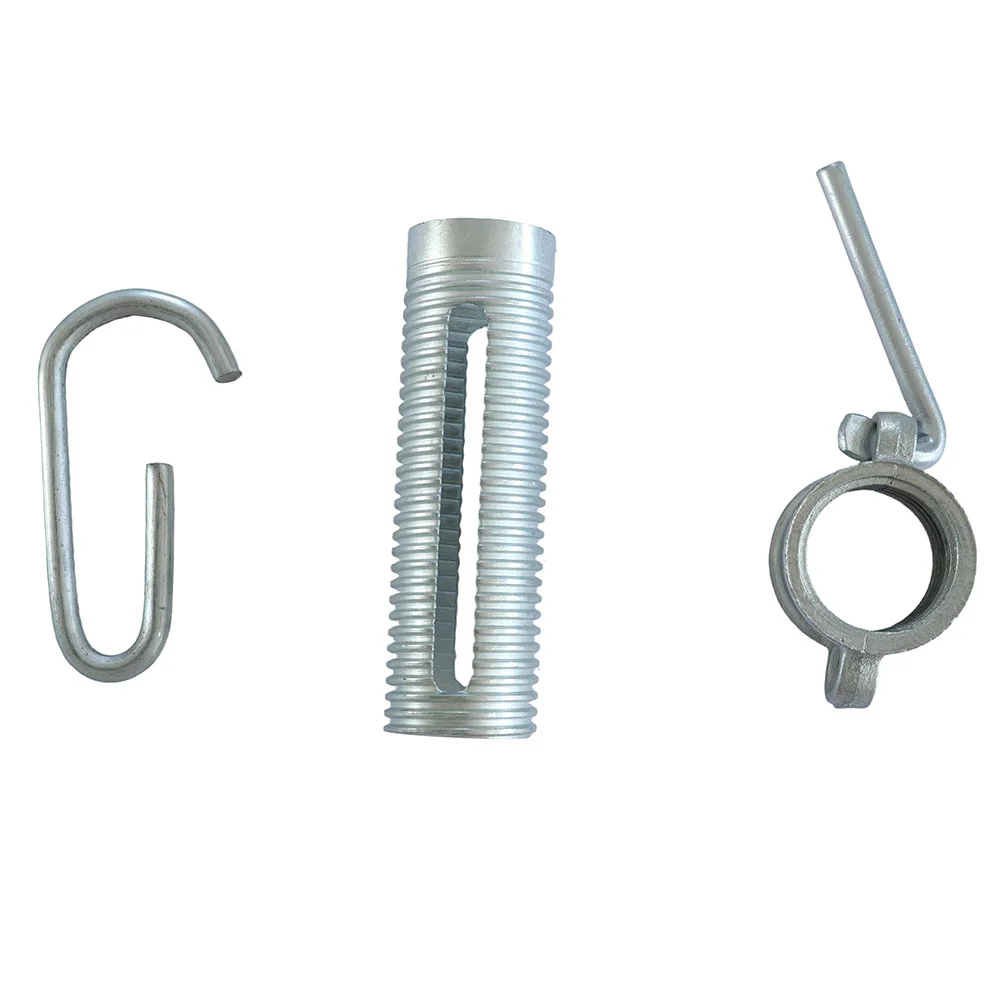

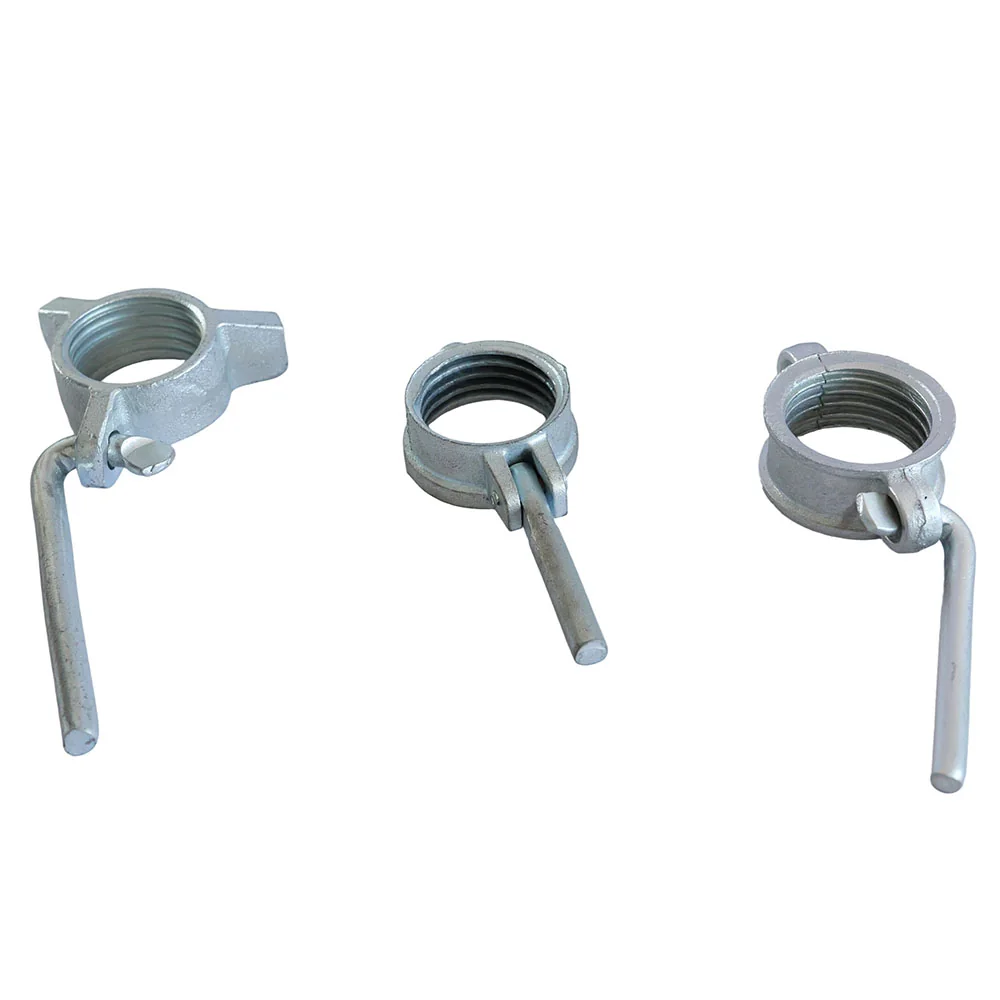

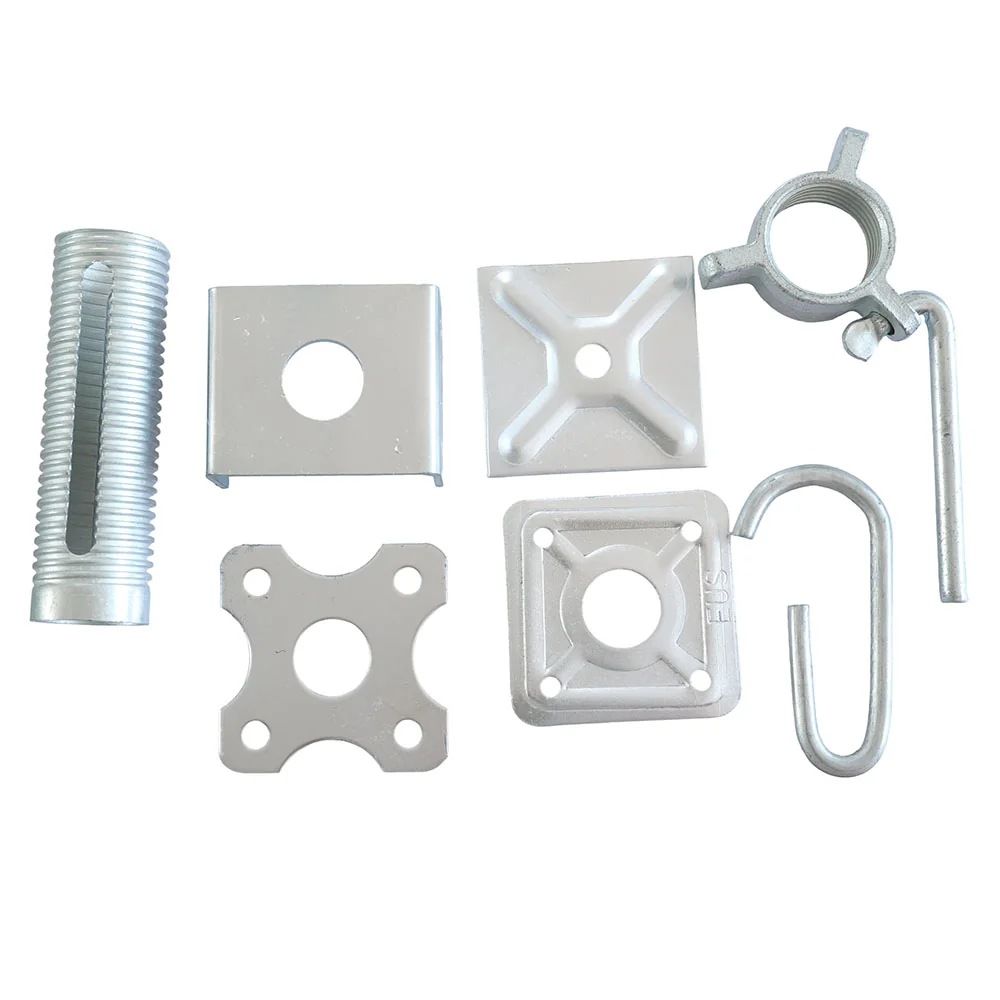

White-background detail views show the documented adjustment nuts, threaded sleeve, plates and U-shaped retaining pin associated with this Chinese-style configuration.
Manufacturing evidence
Nuohong supports scaffolding and construction-component orders with steel preparation, welding, fabrication and finished-product handling in Hebei. Share the required product, quantity, finish and destination for review.
