Steel Formwork

Circular Column Steel Formwork

Steel formwork for circular concrete column construction, with documented diameter and height combinations for project review.

SF / 02

Assembled circular column steel formwork sections in red and grey finishes

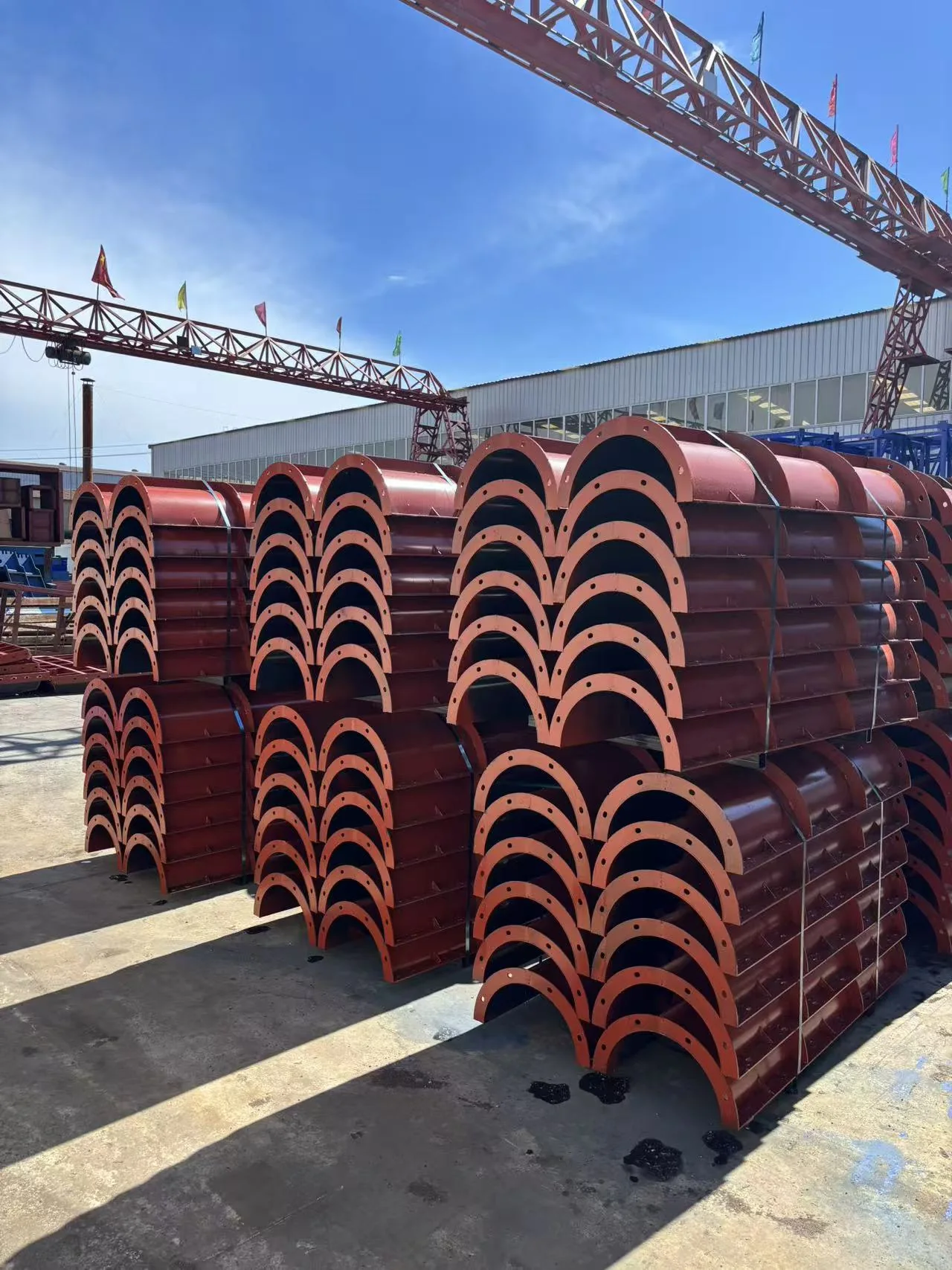

Finished circular column steel formwork half-shell sections stored outdoors

Product information

Overview & applications.

Steel formwork designed for circular concrete column construction. Available configurations can be reviewed according to required column dimensions and project specifications.

Circular concrete column construction
Project supply based on required column dimensions
OEM and customization review using buyer drawings and specifications

Documented diameters: Φ 300–Φ 1000 mm
Documented heights: 500 / 1000 / 1500 / 2000 / 3000 mm
Configuration review: According to required column dimensions and project specifications

Real product video

PRODUCT DEMONSTRATION

View the real Circular Column Steel Formwork configuration and product details in the demonstration below.

Technical information

Available specifications.

Documented diameter, height and weight combinations

Diameter (mm)	Height (mm)	Weight (kg)
Φ 300	500	22.3
Φ 300	1000	42.1
Φ 300	1500	61.9
Φ 300	2000	81.7
Φ 300	3000	121.3
Φ 400	500	29.64
Φ 400	1000	54.9
Φ 400	1500	80.16
Φ 400	2000	105.42
Φ 400	3000	155.96
Φ 500	500	37.18
Φ 500	1000	69.7
Φ 500	1500	102.6
Φ 500	2000	135.3
Φ 500	3000	200.72
Φ 600	500	45.12
Φ 600	1000	84.3
Φ 600	1500	123.48
Φ 600	2000	162.64
Φ 600	3000	240.98
Φ 700	500	74.96
Φ 700	1000	135.1
Φ 700	1500	195.26
Φ 700	2000	255.4
Φ 700	3000	374.7
Φ 800	500	91.86
Φ 800	1000	167.28
Φ 800	1500	242.7
Φ 800	2000	318.12
Φ 800	3000	468.96
Φ 900	500	103.82
Φ 900	1000	190.76
Φ 900	1500	277.72
Φ 900	2000	392.02
Φ 900	3000	538.58
Φ 1000	500	175.04
Φ 1000	1000	256.34
Φ 1000	1500	337.64
Φ 1000	2000	441.98
Φ 1000	3000	650.68

Robotic welding work cell supporting tubular construction-component fabrication

Manufacturing evidence

Discuss production and supply requirements.

Nuohong supports scaffolding and construction-component orders with steel preparation, welding, fabrication and finished-product handling in Hebei. Share the required product, quantity, finish and destination for review.
