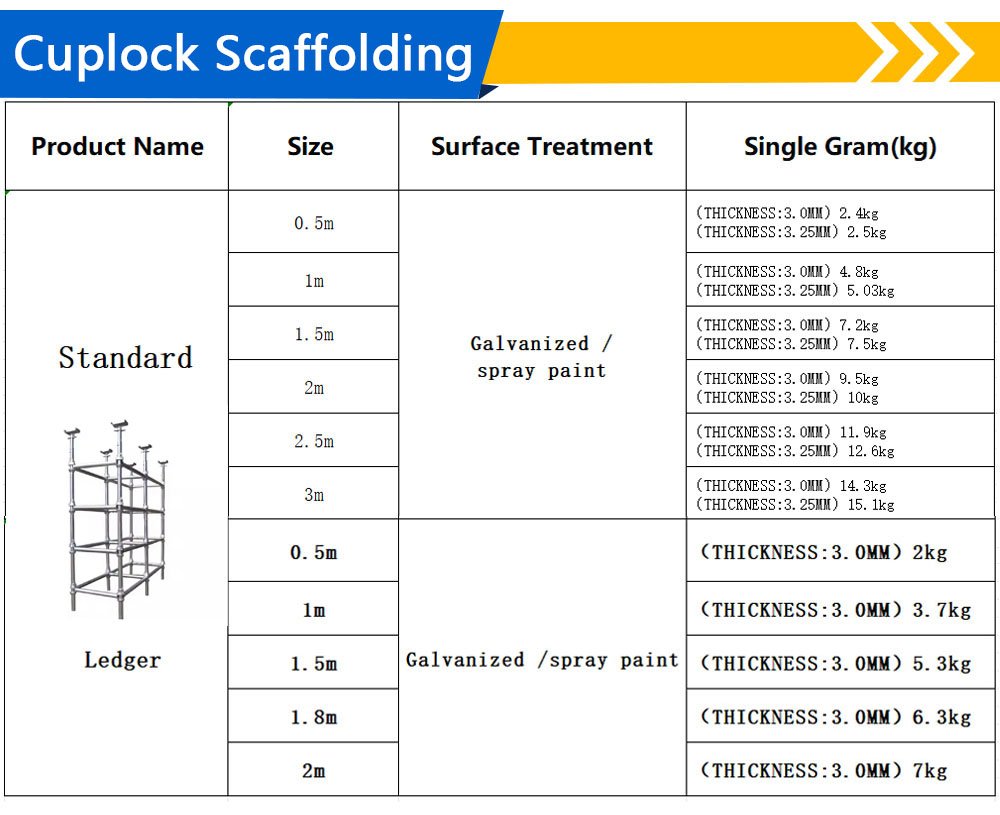

Cuplock Standard
| Length | 3.0 mm unit weight | 3.25 mm unit weight |
|---|---|---|
| 0.5 m | 2.4 kg | 2.5 kg |
| 1.0 m | 4.8 kg | 5.03 kg |
| 1.5 m | 7.2 kg | 7.5 kg |
| 2.0 m | 9.5 kg | 10 kg |
| 2.5 m | 11.9 kg | 12.6 kg |
| 3.0 m | 14.3 kg | 15.1 kg |
Cuplock Scaffolding
Cuplock Scaffolding System
Cuplock scaffolding system with source-defined Standard and Ledger component ranges for project and wholesale supply.
CS / 01
Product information
Overview & applications.
The Cuplock Scaffolding System uses vertical Standards and horizontal Ledgers to build modular access and support configurations. Standard and Ledger data is consolidated on this system page instead of being split into thin component pages.
- Modular construction access
- Project scaffolding configurations
- Wholesale system and component supply
- System components documented
- Cuplock Standard / Cuplock Ledger
- Available surface treatment
- Galvanized / spray painted
Technical information
Available specifications.
Cuplock Ledger
| Length | Thickness | Unit weight | Surface treatment |
|---|---|---|---|
| 0.5 m | 3.0 mm | 2 kg | Galvanized / spray painted |
| 1.0 m | 3.0 mm | 3.7 kg | Galvanized / spray painted |
| 1.5 m | 3.0 mm | 5.3 kg | Galvanized / spray painted |
| 1.8 m | 3.0 mm | 6.3 kg | Galvanized / spray painted |
| 2.0 m | 3.0 mm | 7 kg | Galvanized / spray painted |
Manufacturing evidence
Discuss production and supply requirements.
Nuohong supports scaffolding and construction-component orders with steel preparation, welding, fabrication and finished-product handling in Hebei. Share the required product, quantity, finish and destination for review.
